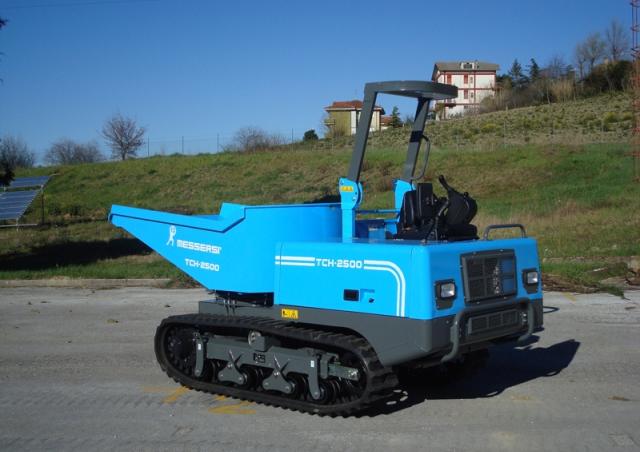

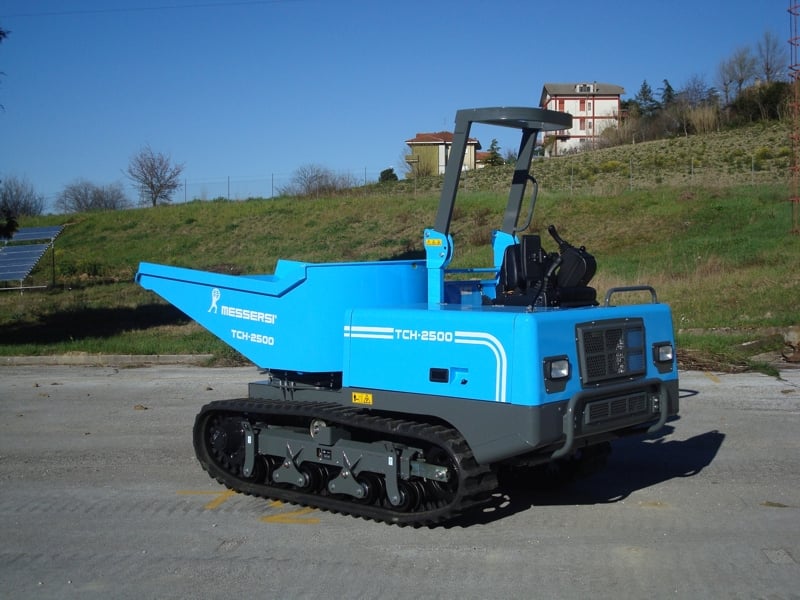

Messersi TCH 2500 Specifications & Technical Data (2007-2009)

Technical specs - TCH 2500 Messersi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.5 t

Net load: 2 t

Dump capacity: 1.35 m³

Driver protection: Ü

Track width: 320 mm

Model series: TCH

Engine manuf.: Kubota

Engine type: V2403-M

Engine power: 35.8 kW

Displacement: 2.434 l

Revolutions at max torque: 1600 rpm

More technical details, like: transport length, transport width, transport height, travel speed, soil pressure, loading height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level...

More technical details, like: transport length, transport width, transport height, travel speed, soil pressure, loading height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, engine manufacturer, engine model, rated speed, engine output, engine torque, fuel, drive, track shoe width, height over rops, width, overall length, ground clearance, skip lip height - tipped, payload - heaped, payload - struck, skip payload, ground bearing pressure, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Buy full specs

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: Yes
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

TCH 2500 Messersi Specification for Europe (DE,EN)

Messersi TCH 2500 FAQ

When was the Messersi TCH 2500 manufactured?

The Messersi TCH 2500 was manufactured from 2007 to 2009.

How much does the Messersi TCH 2500 weigh?

The Messersi TCH 2500 weighs 2.5 tons.

What is the track width of the Messersi TCH 2500's undercarriage?

The Messersi TCH 2500 has a track width of 320 mm in its undercarriage.

What is the material handling capacity of the Messersi TCH 2500 tracked dumper?

The Messersi TCH 2500 tracked dumper has a net load capacity of 2 tons and a dump capacity of 1.35 cubic meters.

What operator safety feature does the Messersi TCH 2500 have?

The Messersi TCH 2500 is equipped with a roll-over bar for driver protection.
