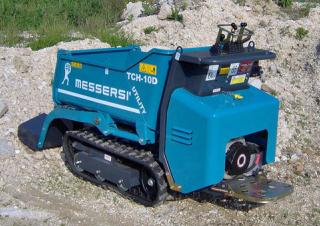

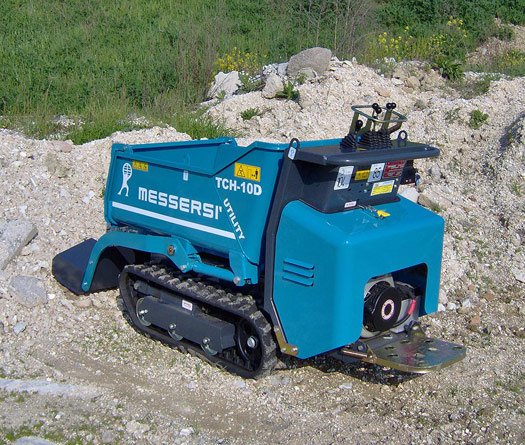

Messersi TCH 10 D Specifications & Technical Data (2006-2009)

Technical specs - TCH 10 D Messersi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.56 t

Net load: 0.5 t

Dump capacity: 0.38 m³

Track width: 180 mm

Model series: TCH

Engine manuf.: Yanmar

Engine type: L100AE

Engine power: 7.4 kW

More technical details, like: transport length, transport width, transport height, driver protection, travel speed, soil pressure, loading height, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: transport length, transport width, transport height, driver protection, travel speed, soil pressure, loading height, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, engine model, rated speed, engine output, engine torque, fuel, drive, track shoe width, width, skip lip height - tipped, payload - heaped, payload - struck, payload - water, skip payload, ground bearing pressure, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: Yes
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

TCH 10 D Messersi Specification for Europe (DE, EN, RU)

Messersi TCH 10 D FAQ

When was the Messersi TCH 10 D manufactured?

The Messersi TCH 10 D was manufactured from 2006 to 2009.

How much does the Messersi TCH 10 D weigh?

The Messersi TCH 10 D weighs 0.56 tons.

What is the track width of the Messersi TCH 10 D's undercarriage?

The Messersi TCH 10 D has a track width of 180 mm.

What is the material handling capacity of the Messersi TCH 10 D tracked dumper?

The Messersi TCH 10 D tracked dumper has a net load capacity of 0.5 tons and a dump capacity of 0.38 cubic meters.

How much is a Messersi TCH 10 D Tracked dumper (2006u20132009) worth?

The residual value of the Messersi TCH 10 D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Messersi TCH 10 D from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Compare Messersi TCH 10 D with similar Tracked Dumpers

Messersi TCH 10 D

Weight:: 0.56 t

Net load:: 0.5 t

Dump capacity:: 0.38 m³

Track width:: 180 mm

JCB TD 7

Weight:: 0.54 t

Net load:: 0.71 t

Dump capacity:: 0.3 m³

Track width:: 180 mm

SCHÄFER D 1000

Weight:: 0.54 t

Net load:: 1 t

Dump capacity:: 0.4 m³

Track width:: 190 mm
