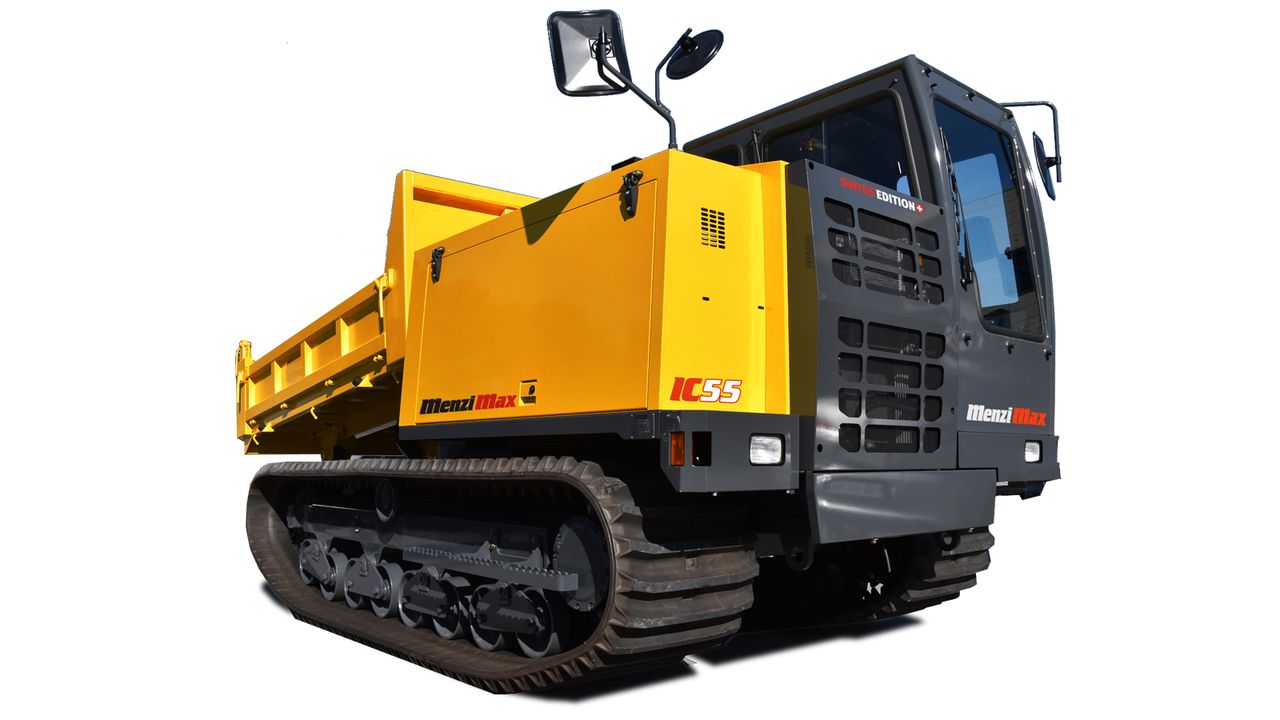

IC55 Menzi IC55 Specifications & Technical Data (2017—2026)
Technical specs - IC55 Menzi
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.62 t
- Transport length
- 4.72 m
- Transport width
- 2.2 m
- Transport height
- 2.53 m
- Net load
- 5 t
- Dump capacity
- 1.8 m³
- Driver protection
- Kb
- Travel speed
- 12 km/h
- Track width
- 600 mm
- Soil pressure
- 0.41 kg/cm²
- Loading height
- 1.14 m
- Model series
- IC
- Engine manuf.
- Kubota
- Engine type
- V3800
- Engine power
- 78.3 kW
- Displacement
- 3.769 l
- Revolutions at max torque
- 2400 rpm
- No. of cylinders
- 4
- Emission level
- IV
More technical details, like: turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Track adjustment
-
No
- Bucket
-
No
- Heated dump body
-
No
- Electric starter
-
No
- Trough liftable
-
No
- Aircondition
-
No
