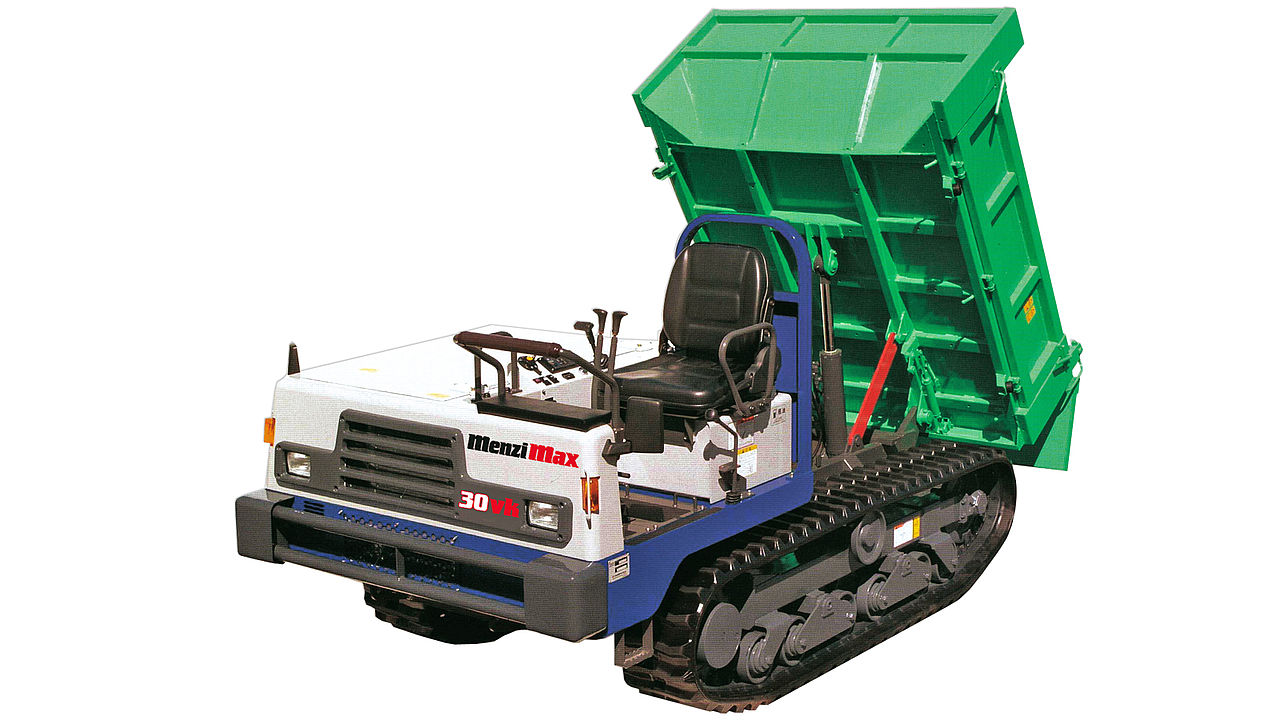

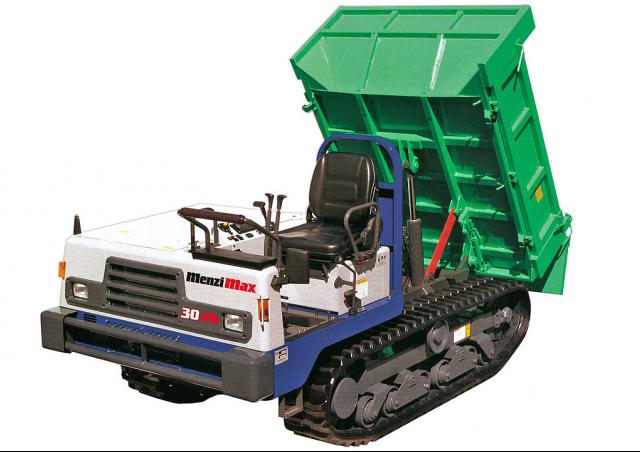

30vk Menzi 30vk Specifications & Technical Data (2017—2026)
Technical specs - 30vk Menzi
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.28 t
- Transport length
- 3.579 m
- Transport width
- 1.2 m
- Transport height
- 2.32 m
- Net load
- 3 t
- Dump capacity
- 1.38 m³
- Driver protection
- FD
- Travel speed
- 10.5 km/h
- Track width
- 320 mm
- Soil pressure
- 0.61 kg/cm²
- Loading height
- 1.482 m
- Engine manuf.
- Kubota
- Engine type
- V2403-M-D
- Engine power
- 34 kW
- Displacement
- 2.434 l
- Revolutions at max torque
- 2700 rpm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Track adjustment
-
No
- Bucket
-
No
- Heated dump body
-
No
- Electric starter
-
No
- Trough liftable
-
Yes
- Aircondition
-
No
Download datasheets (PDF)
