Kubota KC120HC-4 Specifications & Technical Data (2019-2026)

Technical specs - KC120HC-4 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.89 t

Transport length: 2.64 m

Transport width: 0.95 m

Transport height: 2.02 m

Net load: 1.2 t

Dump capacity: 0.52 m³

Travel speed: 6.9 km/h

Track width: 230 mm

Model series: KC

Engine manuf.: Kubota

Engine type: Z482

Engine power: 9.5 kW

No. of cylinders: 2

More technical details, like: driver protection, soil pressure, loading height, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: Yes
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

KC120HC-4 Kubota Specification for North America (EN)

Kubota KC120HC-4 FAQ

When was the Kubota KC120HC-4 manufactured?

The Kubota KC120HC-4 was first produced in 2019.

How much does the Kubota KC120HC-4 weigh?

The Kubota KC120HC-4 weighs 0.89 tons.

What are the transport dimensions of the Kubota KC120HC-4?

The Kubota KC120HC-4 has a transport length of 2.64 meters, a transport width of 0.95 meters, and a transport height of 2.02 meters.

What is the travel speed of the Kubota KC120HC-4?

The Kubota KC120HC-4 has a travel speed of 6.9 km/h.

What is the track width of the Kubota KC120HC-4's undercarriage?

The Kubota KC120HC-4 has a track width of 230 mm.

What is the material handling capacity of the Kubota KC120HC-4 tracked dumper?

The Kubota KC120HC-4 tracked dumper has a net load capacity of 1.2 tons and a dump capacity of 0.52 cubic meters.

How much is a Kubota KC120HC-4 Tracked dumper (2019u20132025) worth?

The residual value of the Kubota KC120HC-4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

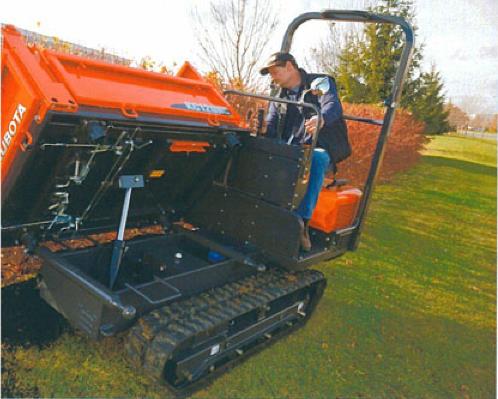

Kubota KC120HC-4 overview

Engine

Clean, Environmentally Friendly Engine

Tough and dependable, the Kubota diesel engine delivers high torque and high output, with optimal fuel efficiency to minimizing operating costs. This diesel engine incorporates the unique combustion method developed by Kubota in our ongoing commitment to cleaner emissions, enhanced power, and quiet operation. The engine complies with even the toughest regulations now being globally enforced – including the EPA Tier-4 regulations in the USA.

Tracks

Travel & Traction

The flexible bogie style under rollers absorb shock and help contribute to smoother and more stable travel even on rough surfaces. The long rubber crawler distributes weight better than some wheeled machines for better traction and less damage on soft ground.

Crawler Tension Adjusters with Built-in Springs

The built-in springs fitted to the tension adjusters absorb shock in order to help prevent damage to the rubber crawlers.

Operation

Compact and powerful to save you time and labour. Kubota Launches KC Series Rubber Track Carrier!

Not only is the KC Series compact in size, it also provides all the load capacity and dump force needed to efficiently and reliably get the job done. The rugged power delivered by the Kubota diesel engine ensures reliable and efficient operation in a wide range of applications.

Generous Dumping Angles

The KC70 provides a generous 68° dumping angle in the forward direction. As for the KC120HC, it has a 56° dumping angle in the forward direction as well as 61° to either the right or the left.

Compact Design

To more easily pass through gates and between structures in close proximity as well as to negotiate otherwise prohibitively narrow spaces, models in the KC-Series feature exceptionally efficient compactness. The width of the KC70 is a slender 34.6 in. while that for the KC120HC is a trim 37.4 in.

3-direction Dumping

To more efficiently handle operations in confined spaces, the bed for the KC120HC can be dumped in three directions – forward, left, and right.

Flexible Sidewalls and Tail Gate

Not only the tailgate, but also the sidewalls on both sides of the bed are hinged to permit being either raised or lowered to efficiently accommodate the specific load to be transported. In addition, the sidewalls and the tailgate are removable to permit the KC120HC to be used as a flat bed carrier.

HST Transmission

2-stage shifting permits selecting the ideal speed to efficiently undertake the job-at-hand. In addition, smoothly and swiftly changing the direction of travel between forward or in reverse is easily accomplished with foot pedals.
