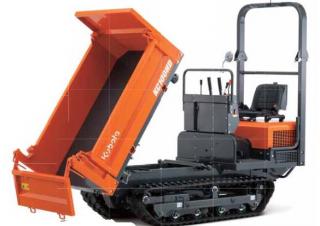

Kubota KC110HD Specifications & Technical Data (2010-2012)

Technical specs - KC110HD Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.88 t

Transport length: 2.64 m

Transport width: 0.95 m

Transport height: 2.02 m

Net load: 1.2 t

Travel speed: 3.9 km/h

Track width: 230 mm

Loading height: 0.94 m

Model series: KC

Engine manuf.: Kubota

Engine type: Z482EPA

Engine power: 8.3 kW

Displacement: 0.5 l

Revolutions at max torque: 3000 rpm

More technical details, like: dump capacity, driver protection, soil pressure, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer...

More technical details, like: dump capacity, driver protection, soil pressure, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, engine model, rated speed, engine output, drive, track shoe width, height over rops, width, overall length, ground clearance, skip lip height - tipped, payload - heaped, payload - struck, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: Yes
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

KC110HD Kubota Specification for Europe (DE)

Kubota KC110HD FAQ

When was the Kubota KC110HD manufactured?

The Kubota KC110HD was manufactured from 2010 to 2012.

How much does the Kubota KC110HD tracked dumper weigh?

The Kubota KC110HD tracked dumper weighs 0.88 tons.

What are the transport dimensions of the Kubota KC110HD?

The Kubota KC110HD has a transport length of 2.64 meters, a transport width of 0.95 meters, and a transport height of 2.02 meters.

What is the travel speed of the Kubota KC110HD?

The Kubota KC110HD has a travel speed of 3.9 km/h.

What is the track width of the Kubota KC110HD's undercarriage?

The Kubota KC110HD has a track width of 230 mm in its undercarriage.

What is the material handling capacity of the Kubota KC110HD tracked dumper?

The Kubota KC110HD tracked dumper has a net load capacity of 1.2 tons and a loading height of 0.94 meters.

How much is a Kubota KC110HD Tracked dumper (2010u20132012) worth?

The residual value of the Kubota KC110HD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
