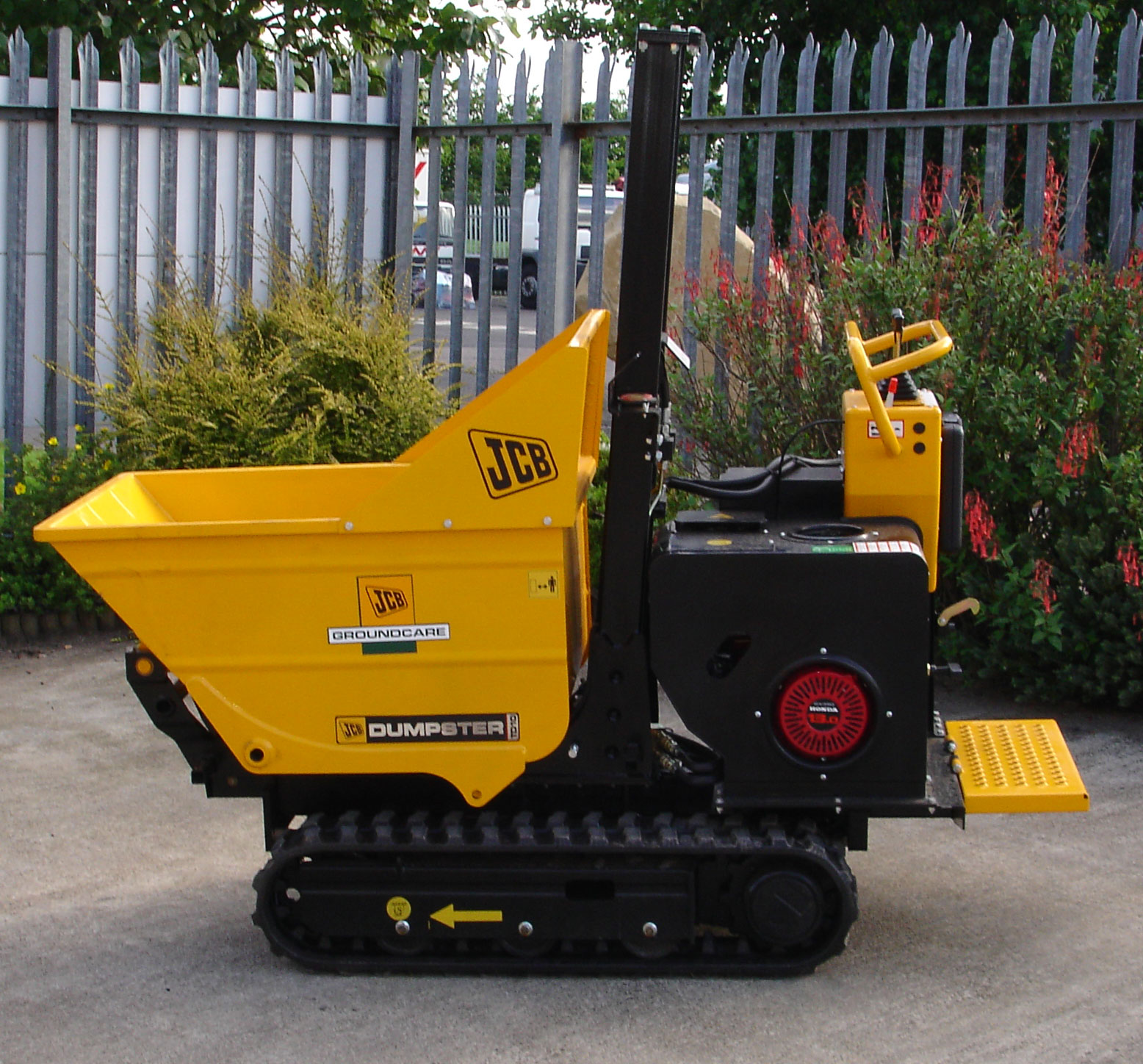

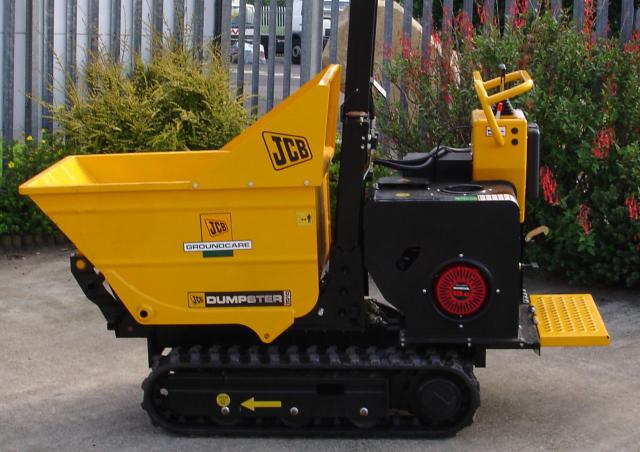

JCB TD 10 SLE Specifications & Technical Data (2003-2009)

Technical specs - TD 10 SLE JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.64 t

Transport length: 2.61 m

Transport width: 0.8 m

Transport height: 1.245 m

Net load: 0.75 t

Dump capacity: 0.3 m³

Travel speed: 3.4 km/h

Track width: 180 mm

Soil pressure: 0.19 kg/cm²

Loading height: 0.47 m

Model series: TD

Engine manuf.: Honda

Engine type: GX390

Engine power: 10 kW

Displacement: 0.389 l

Revolutions at max torque: 3500 rpm

More technical details, like: driver protection, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, engine model, rated speed...

More technical details, like: driver protection, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, engine model, rated speed, engine output, fuel, drive, track shoe width, width, overall length, skip lip height - untipped, skip lip height - tipped, payload - heaped, skip payload, ground bearing pressure, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: Yes
Heated dump body: No
Electric starter: Yes
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

TD 10 SLE JCB Specification for Europe (DE)

JCB TD 10 SLE FAQ

When was the JCB TD 10 SLE manufactured?

The JCB TD 10 SLE was manufactured from 2003 to 2009.

How much does the JCB TD 10 SLE weigh?

The JCB TD 10 SLE weighs 0.64 tons.

What are the transport dimensions of the JCB TD 10 SLE?

The JCB TD 10 SLE has a transport length of 2.61 meters, a transport width of 0.8 meters, and a transport height of 1.25 meters.

What is the travel speed of the JCB TD 10 SLE tracked dumper?

The JCB TD 10 SLE has a travel speed of 3.4 km/h.

What are the undercarriage specifications of the JCB TD 10 SLE?

The JCB TD 10 SLE has a track width of 180 mm and a soil pressure of 0.19 kg/cmu00b2.

What is the material handling capacity of the JCB TD 10 SLE tracked dumper?

The JCB TD 10 SLE has a net load capacity of 0.75 tons, a dump capacity of 0.3 cubic meters, and a loading height of 0.47 meters.

How much is a JCB TD 10 SLE Tracked dumper (2003u20132009) worth?

The residual value of the JCB TD 10 SLE depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
