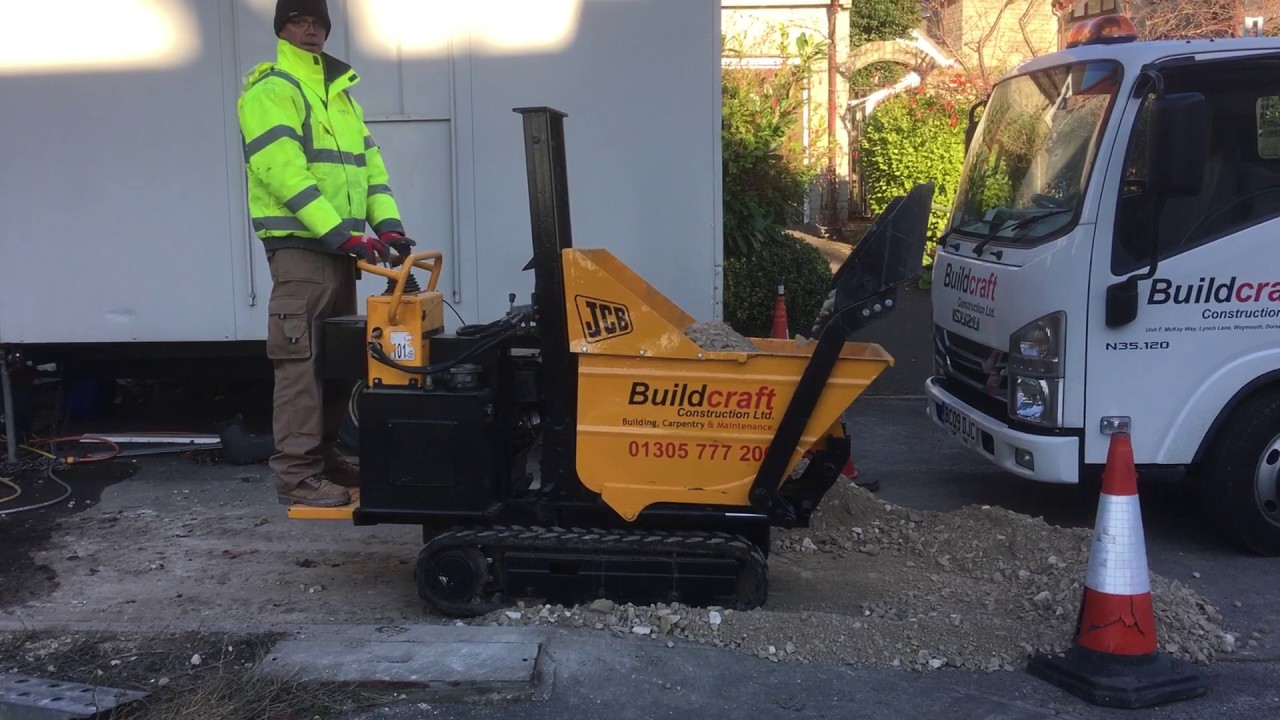

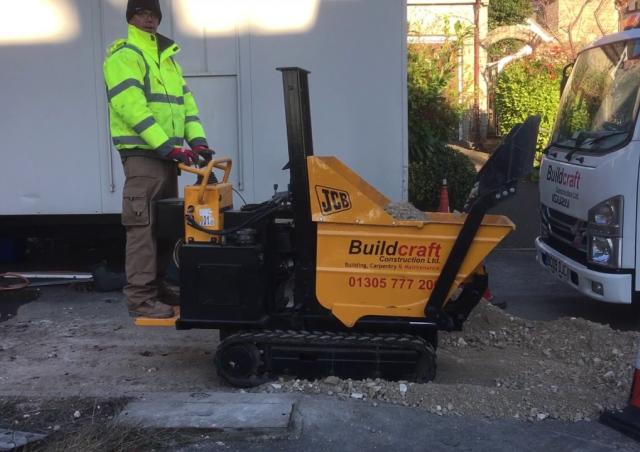

Name: JCB TD 10 SL Tracked Dumpers
Brand: JCB

Technical specs - TD 10 SL JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.64 t

Transport length: 2.61 m

Transport width: 0.8 m

Transport height: 1.245 m

Net load: 0.75 t

Dump capacity: 0.3 m³

Travel speed: 3.4 km/h

Track width: 180 mm

Soil pressure: 0.19 kg/cm²

Loading height: 0.94 m

Model series: TD

Engine manuf.: Honda

Engine type: GX390

Engine power: 10 kW

Displacement: 0.389 l

Revolutions at max torque: 3500 rpm

More technical details, like: driver protection, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, engine model, rated speed...

More technical details, like: driver protection, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, engine model, rated speed, engine output, fuel, drive, track shoe width, width, overall length, skip lip height - untipped, skip lip height - tipped, payload - heaped, skip payload, ground bearing pressure, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: Yes
Heated dump body: No
Electric starter: No
Trough liftable: No
Aircondition: No
