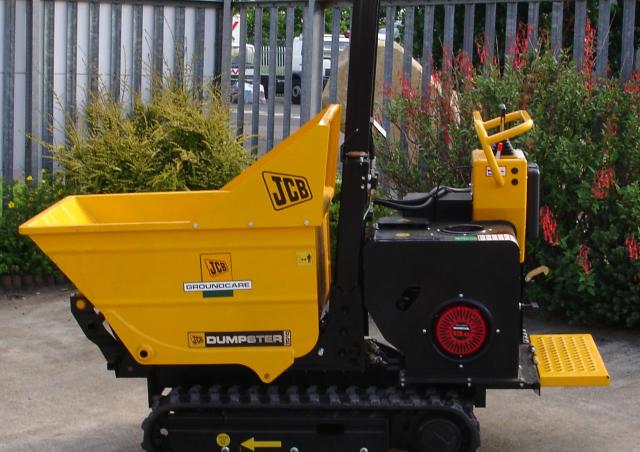

JCB TD 10 Specifications & Technical Data (2003-2009)

Technical specs - TD 10 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.57 t

Transport length: 1.95 m

Transport width: 0.755 m

Transport height: 1.245 m

Net load: 0.8 t

Dump capacity: 0.3 m³

Travel speed: 3.4 km/h

Track width: 390 mm

Soil pressure: 0.17 kg/cm²

Loading height: 0.5 m

Model series: TD

Engine manuf.: Honda

Engine type: GX390

Engine power: 10 kW

Displacement: 0.389 l

Revolutions at max torque: 3500 rpm

More technical details, like: driver protection, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, engine model, rated speed...

More technical details, like: driver protection, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, engine model, rated speed, engine output, fuel, drive, track shoe width, width, overall length, skip lip height - untipped, skip lip height - tipped, payload - heaped, skip payload, ground bearing pressure, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: No
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

TD 10 JCB Specification for Europe (DE)

JCB TD 10 FAQ

When was the JCB TD 10 manufactured?

The JCB TD 10 was manufactured from 2003 to 2009.

How much does the JCB TD 10 weigh?

The JCB TD 10 weighs 0.57 tons.

What are the transport dimensions of the JCB TD 10 tracked dumper?

The JCB TD 10 tracked dumper has a transport length of 1.95 meters, a transport width of 0.76 meters, and a transport height of 1.25 meters.

What is the travel speed of the JCB TD 10 tracked dumper?

The JCB TD 10 tracked dumper has a travel speed of 3.4 km/h.

What are the undercarriage specifications of the JCB TD 10?

The JCB TD 10 has a track width of 390 mm and a soil pressure of 0.17 kg/cmu00b2.

What is the material handling capacity of the JCB TD 10 tracked dumper?

The JCB TD 10 tracked dumper has a net load capacity of 0.8 tons, a dump capacity of 0.3 cubic meters, and a loading height of 0.5 meters.

How much is a JCB TD 10 Tracked dumper (2003u20132009) worth?

The residual value of the JCB TD 10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
