HS701 Hinowa HS701 Specifications & Technical Data (2021—2026)

Weight: 0.75t – Transport length: 1.952m – Transport width: 0.758m – Transport height: 1.89m – Net load: 0.46t – Dump capacity: 0.25m³

HS701

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - HS701 Hinowa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.75 t

Transport length: 1.952 m

Transport width: 0.758 m

Transport height: 1.89 m

Net load: 0.46 t

Dump capacity: 0.25 m³

Travel speed: 3.3 km/h

Track width: 180 mm

Model series: HS

Engine manuf.: Honda

Engine type: GX390

Engine power: 8.7 kW

Displacement: 0.39 l

Revolutions at max torque: 3600 rpm

No. of cylinders: 1

Emission level: V

More technical details, like: driver protection, soil pressure, loading height, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

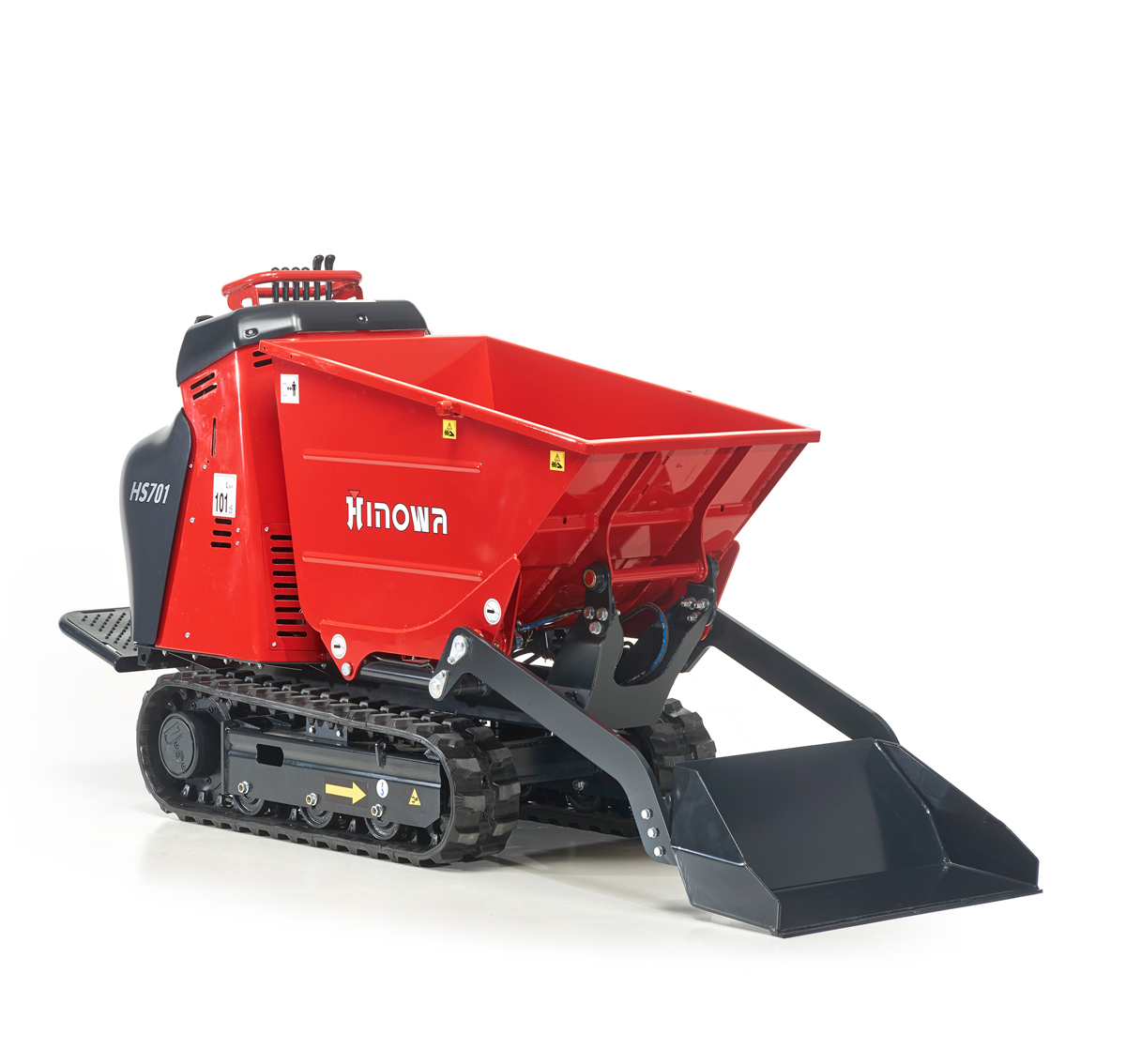

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: Yes
Bucket: Yes
Heated dump body: No
Electric starter: Yes
Trough liftable: Yes
Aircondition: No

Download datasheets (PDF)

Hinowa HS701 FAQ

When was the Hinowa HS701 manufactured?

The Hinowa HS701 was first produced in 2021.

How much does the Hinowa HS701 tracked dumper weigh?

The Hinowa HS701 tracked dumper weighs 0.75 tons.

What are the transport dimensions of the Hinowa HS701 tracked dumper?

The Hinowa HS701 tracked dumper has a transport length of 1.95 meters, a transport width of 0.76 meters, and a transport height of 1.89 meters.

What is the travel speed of the Hinowa HS701 tracked dumper?

The Hinowa HS701 tracked dumper has a travel speed of 3.3 km/h.

What is the track width of the Hinowa HS701?

The Hinowa HS701 has a track width of 180 mm.

What is the material handling capacity of the Hinowa HS701 tracked dumper?

The Hinowa HS701 tracked dumper has a net load capacity of 0.46 tons and a dump capacity of 0.25 cubic meters.
