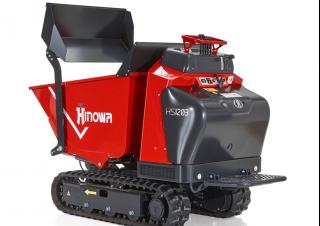

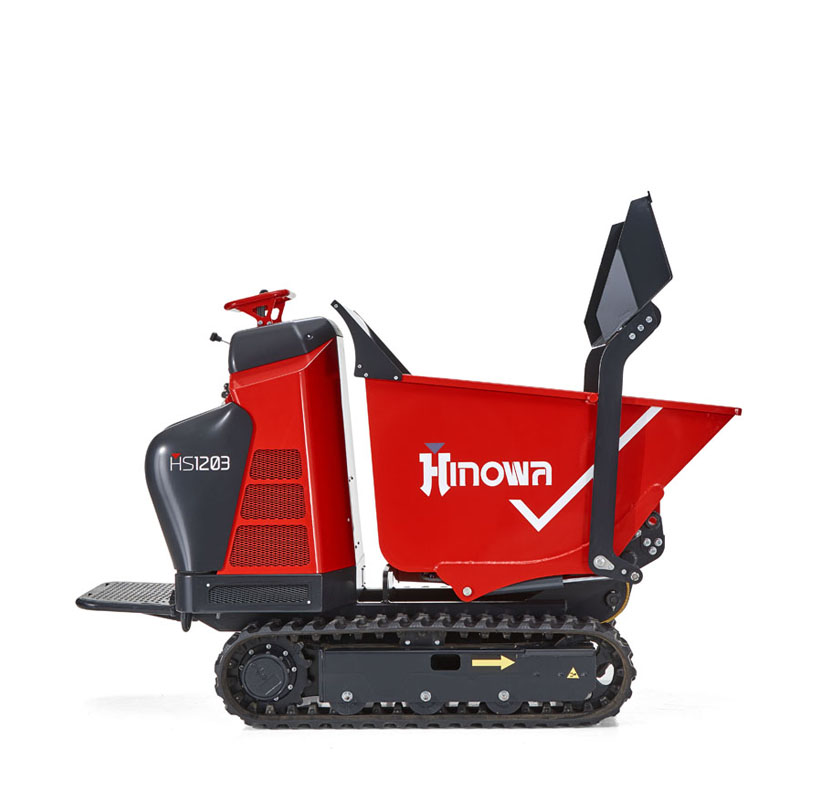

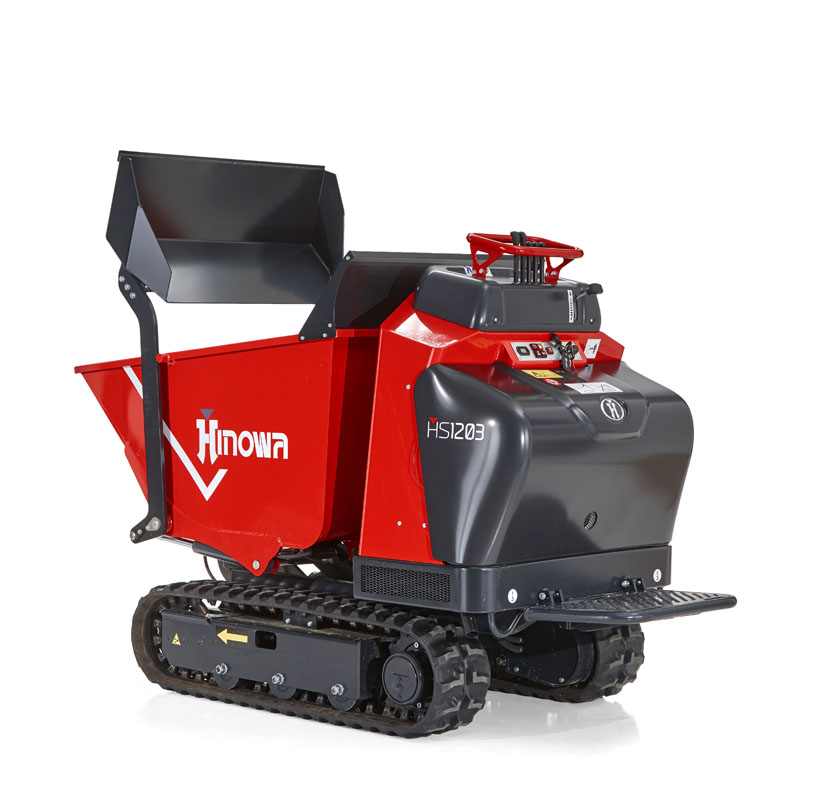

HS1203 Hinowa HS1203 Specifications & Technical Data (2021—2026)

Weight: 0.94t – Transport length: 2.25m – Transport width: 0.99m – Transport height: 1.47m – Net load: 1.2t – Dump capacity: 0.6m³

HS1203

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - HS1203 Hinowa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.94 t

Transport length: 2.25 m

Transport width: 0.99 m

Transport height: 1.47 m

Net load: 1.2 t

Dump capacity: 0.6 m³

Travel speed: 4.5 km/h

Track width: 230 mm

Model series: HS

Engine manuf.: Kubota

Engine type: D722

Engine power: 15 kW

Displacement: 0.719 l

Revolutions at max torque: 3600 rpm

No. of cylinders: 3

Emission level: V

More technical details, like: driver protection, soil pressure, loading height, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: Yes
Heated dump body: No
Electric starter: Yes
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Hinowa HS1203 FAQ

When was the Hinowa HS1203 manufactured?

The Hinowa HS1203 was first produced in 2021.

How much does the Hinowa HS1203 tracked dumper weigh?

The Hinowa HS1203 tracked dumper weighs 0.94 tons.

What are the transport dimensions of the Hinowa HS1203 tracked dumper?

The Hinowa HS1203 tracked dumper has a transport length of 2.25 meters, a transport width of 0.99 meters, and a transport height of 1.47 meters.

What is the travel speed of the Hinowa HS1203 tracked dumper?

The Hinowa HS1203 tracked dumper has a travel speed of 4.5 km/h.

What is the track width of the Hinowa HS1203's undercarriage?

The Hinowa HS1203 has a track width of 230 mm in its undercarriage.

What is the material handling capacity of the Hinowa HS1203 tracked dumper?

The Hinowa HS1203 tracked dumper has a net load capacity of 1.2 tons and a dump capacity of 0.6 cubic meters.
