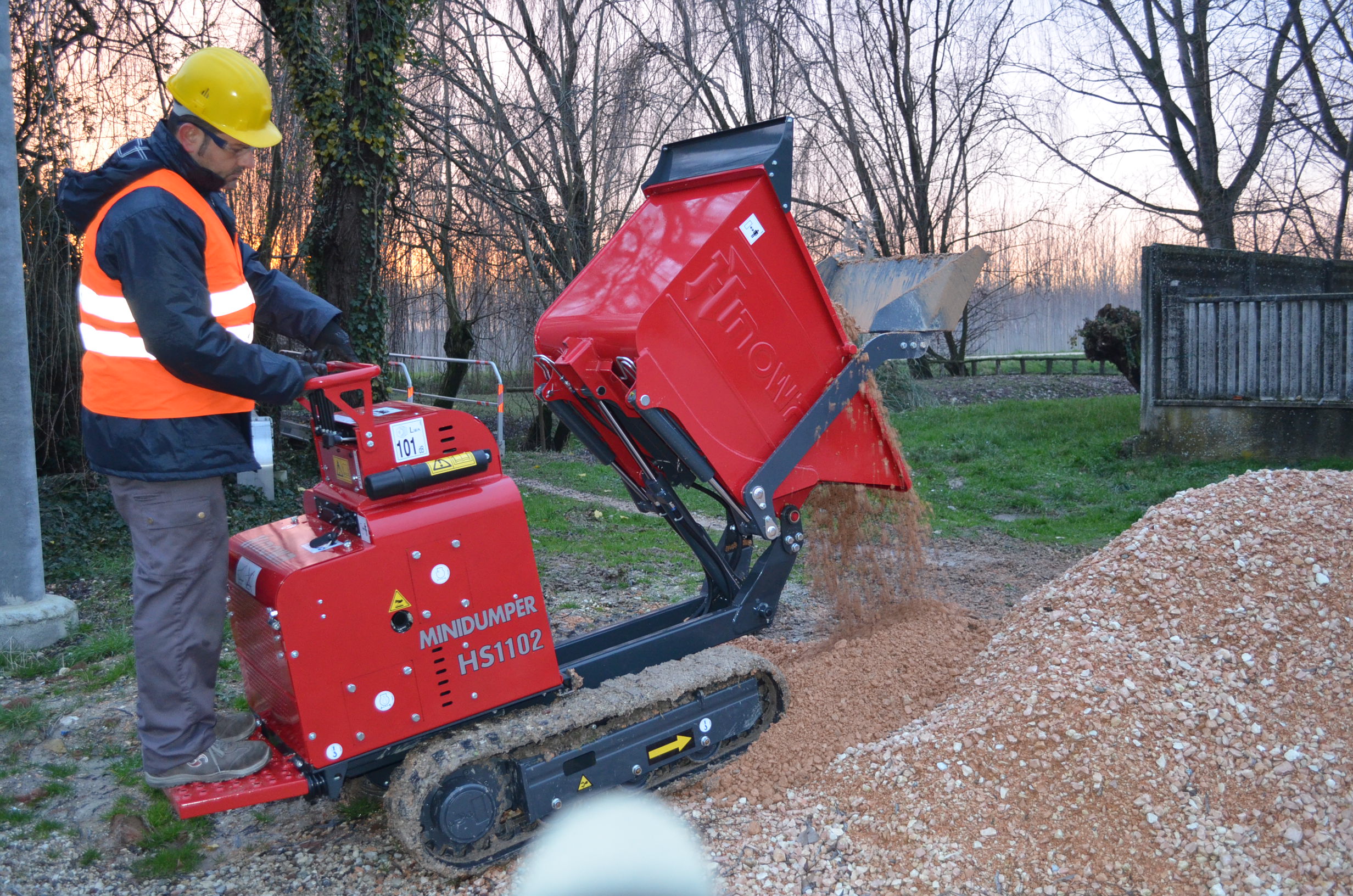

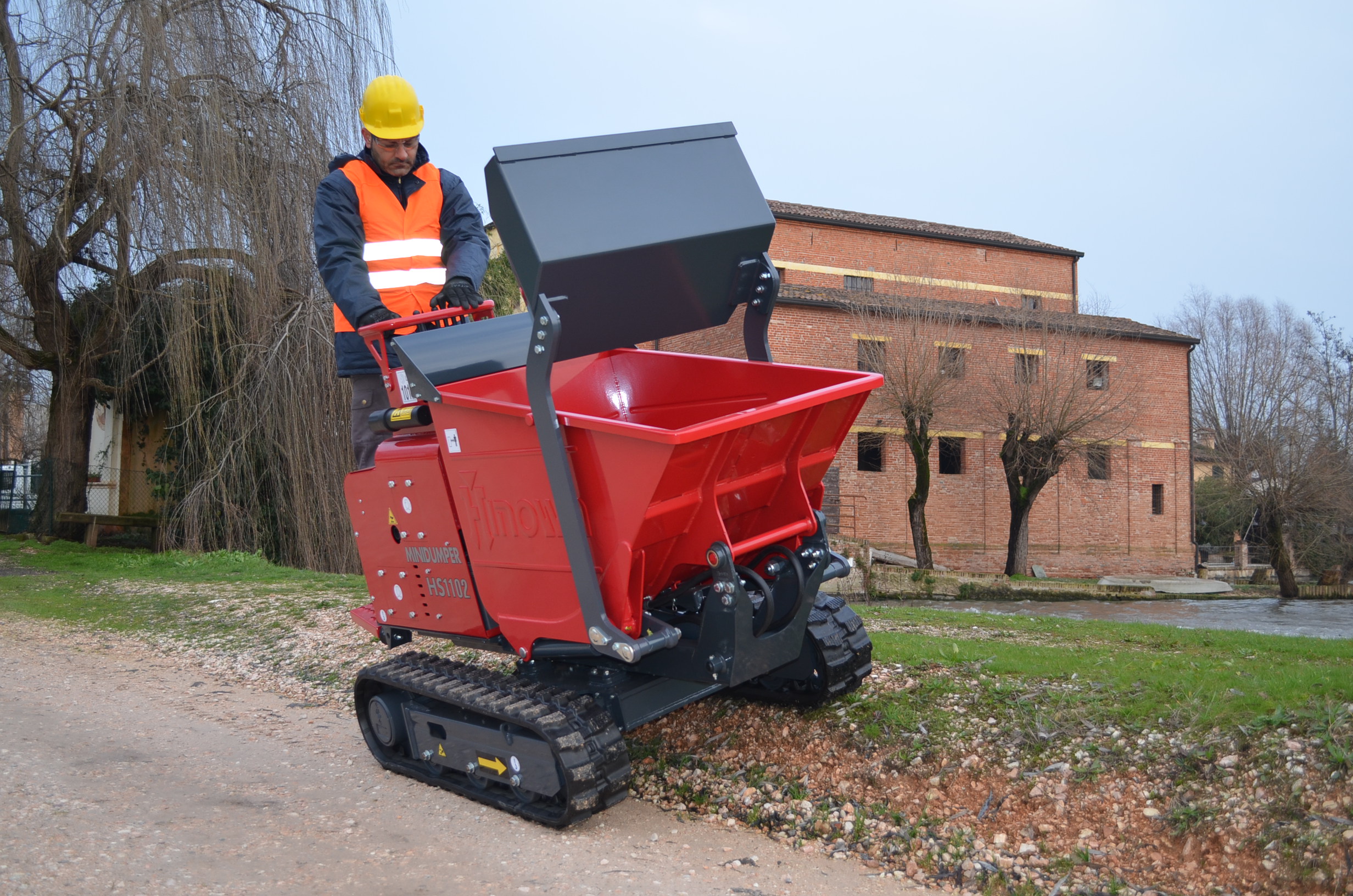

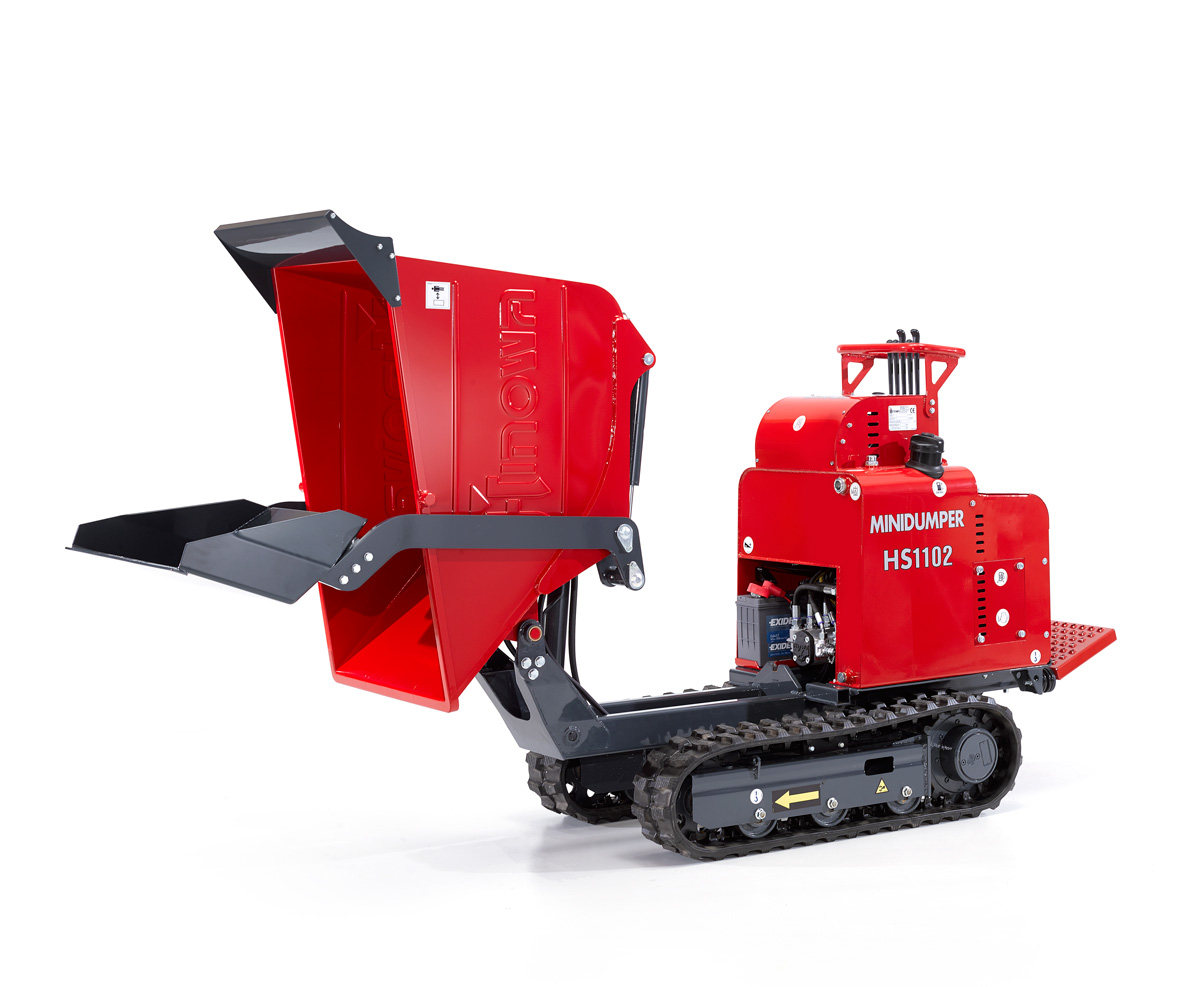

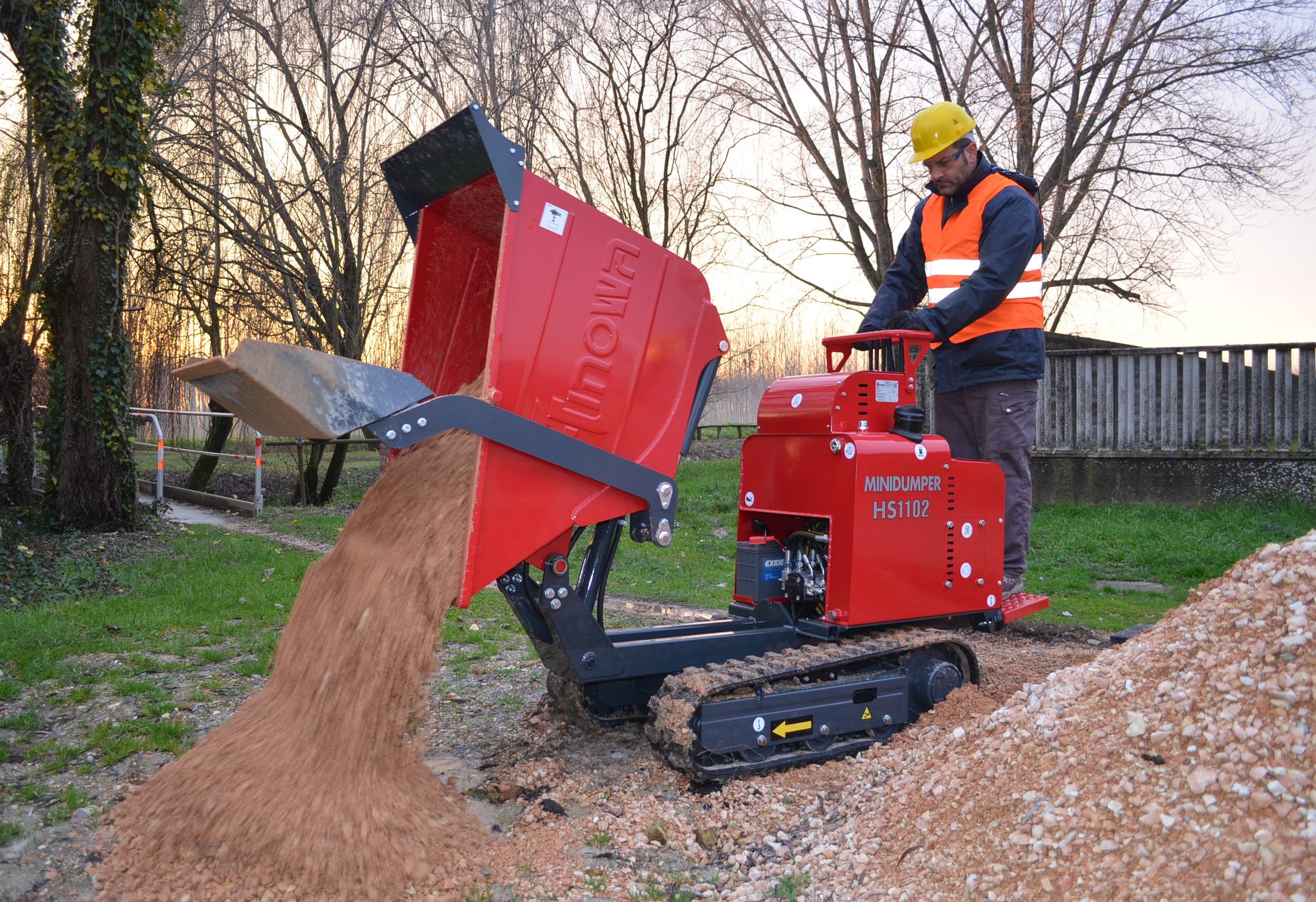

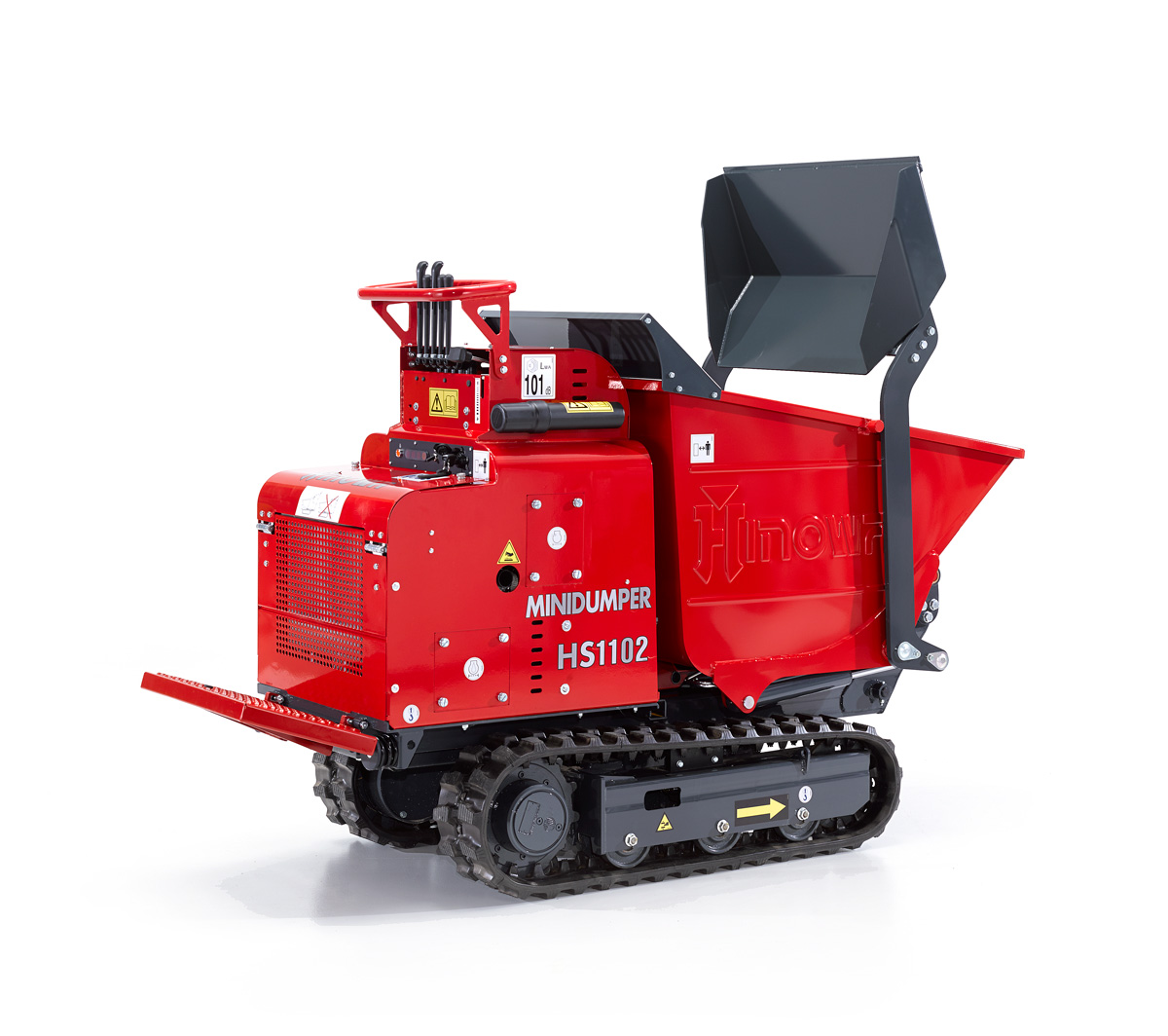

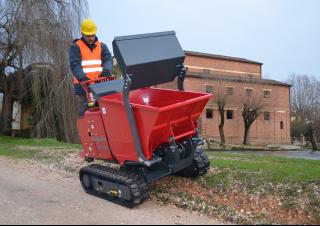

Hinowa HS1102 Specifications & Technical Data (2013-2020)

Technical specs - HS1102 Hinowa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.72 t

Transport length: 1.9 m

Transport width: 0.75 m

Transport height: 1.38 m

Net load: 0.7 t

Dump capacity: 0.34 m³

Travel speed: 4.1 km/h

Track width: 180 mm

Model series: HS

Engine manuf.: Kubota

Engine type: 602

Engine power: 10.8 kW

Displacement: 0.6 l

Revolutions at max torque: 3200 rpm

More technical details, like: driver protection, soil pressure, loading height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops...

More technical details, like: driver protection, soil pressure, loading height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, fops, engine manufacturer, engine model, rated speed, engine output, fuel, drive, track rollers - each side, track shoe width, service type, width, overall length, skip lip height - tipped, payload - heaped, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: Yes
Bucket: Yes
Heated dump body: No
Electric starter: Yes
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Hinowa HS1102 FAQ

When was the Hinowa HS1102 manufactured?

The Hinowa HS1102 was manufactured from 2013 to 2020.

How much does the Hinowa HS1102 tracked dumper weigh?

The Hinowa HS1102 tracked dumper weighs 0.72 tons.

What are the transport dimensions of the Hinowa HS1102 tracked dumper?

The Hinowa HS1102 tracked dumper has transport dimensions of 1.9 meters in length, 0.75 meters in width, and 1.38 meters in height.

What is the travel speed of the Hinowa HS1102?

The Hinowa HS1102 has a travel speed of 4.1 km/h.

What is the track width of the Hinowa HS1102's undercarriage?

The Hinowa HS1102 has a track width of 180 mm.

What is the material handling capacity of the Hinowa HS1102 tracked dumper?

The Hinowa HS1102 tracked dumper has a net load capacity of 0.7 tons and a dump capacity of 0.34 cubic meters.
