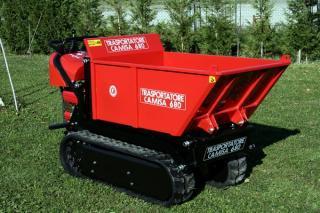

TP 680 Camisa TP 680 Specifications & Technical Data (2003—2011)

Weight: 0.52t – Transport length: 2m – Transport width: 0.75m – Transport height: 1.1m – Net load: 0.8t – Travel speed: 5km/h

TP 680

Years of manufacture: 2003—2011

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TP 680 Camisa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.52 t

Transport length: 2 m

Transport width: 0.75 m

Transport height: 1.1 m

Net load: 0.8 t

Travel speed: 5 km/h

Engine manuf.: Lombardini

Engine type: 15 LD 400

Engine power: 6 kW

Displacement: 0.401 l

More technical details, like: dump capacity, driver protection, track width, soil pressure, loading height, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: No
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Camisa TP 680 FAQ

When was the Camisa TP 680 manufactured?

The Camisa TP 680 was manufactured from 2003 to 2011.

How much does the Camisa TP 680 weigh?

The Camisa TP 680 weighs 0.52 tons.

What are the transport dimensions of the Camisa TP 680?

The Camisa TP 680 has a transport length of 2 meters, a transport width of 0.75 meters, and a transport height of 1.1 meters.

What is the travel speed of the Camisa TP 680 tracked dumper?

The Camisa TP 680 tracked dumper has a travel speed of 5 km/h.

What is the material handling capacity of the Camisa TP 680?

The Camisa TP 680 has a material handling capacity of 0.8 tons.

How much is a Camisa TP 680 Tracked dumper (2003u20132011) worth?

The residual value of the Camisa TP 680 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Camisa TP 680 from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Compare Camisa TP 680 with similar Tracked Dumpers

Camisa TP 680

Weight:: 0.52 t

Transport length:: 2 m

Transport width:: 0.75 m

Transport height:: 1.1 m

JCB TD 7

Weight:: 0.54 t

Transport length:: 1.81 m

Transport width:: 0.755 m

Transport height:: 1.245 m

Cormidi 9.65

Weight:: 0.43 t

SCHÄFER D 1000

Weight:: 0.54 t

Transport length:: 2.06 m

Transport width:: 0.96 m

Transport height:: 1.35 m
