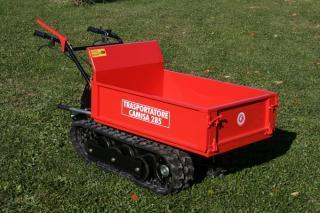

TP 285 Camisa TP 285 Specifications & Technical Data (2007—2011)

Weight: 0.2t – Transport length: 2m – Transport width: 0.75m – Transport height: 0.85m – Net load: 0.5t – Dump capacity: 0.12m³

TP 285

Years of manufacture: 2007—2011

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TP 285 Camisa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.2 t

Transport length: 2 m

Transport width: 0.75 m

Transport height: 0.85 m

Net load: 0.5 t

Dump capacity: 0.12 m³

Travel speed: 5 km/h

Engine manuf.: Honda

Engine type: GX160

Engine power: 4 kW

Displacement: 0.163 l

Revolutions at max torque: 3600 rpm

No. of cylinders: 1

More technical details, like: driver protection, track width, soil pressure, loading height, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: No
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

TP 285 Camisa Specification for Europe (DE, EN, FR, IT)

Camisa TP 285 FAQ

When was the Camisa TP 285 manufactured?

The Camisa TP 285 was manufactured from 2007 to 2011.

How much does the Camisa TP 285 weigh?

The Camisa TP 285 weighs 0.2 tons.

What are the transport dimensions of the Camisa TP 285?

The Camisa TP 285 has a transport length of 2 meters, a transport width of 0.75 meters, and a transport height of 0.85 meters.

What is the travel speed of the Camisa TP 285 tracked dumper?

The Camisa TP 285 has a travel speed of 5 km/h.

What is the material handling capacity of the Camisa TP 285 tracked dumper?

The Camisa TP 285 tracked dumper has a net load capacity of 0.5 tons and a dump capacity of 0.12 cubic meters.
