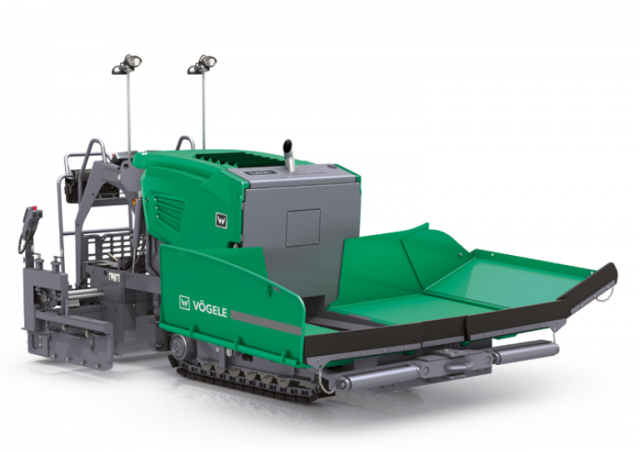

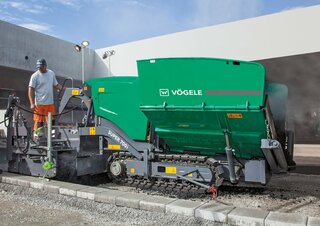

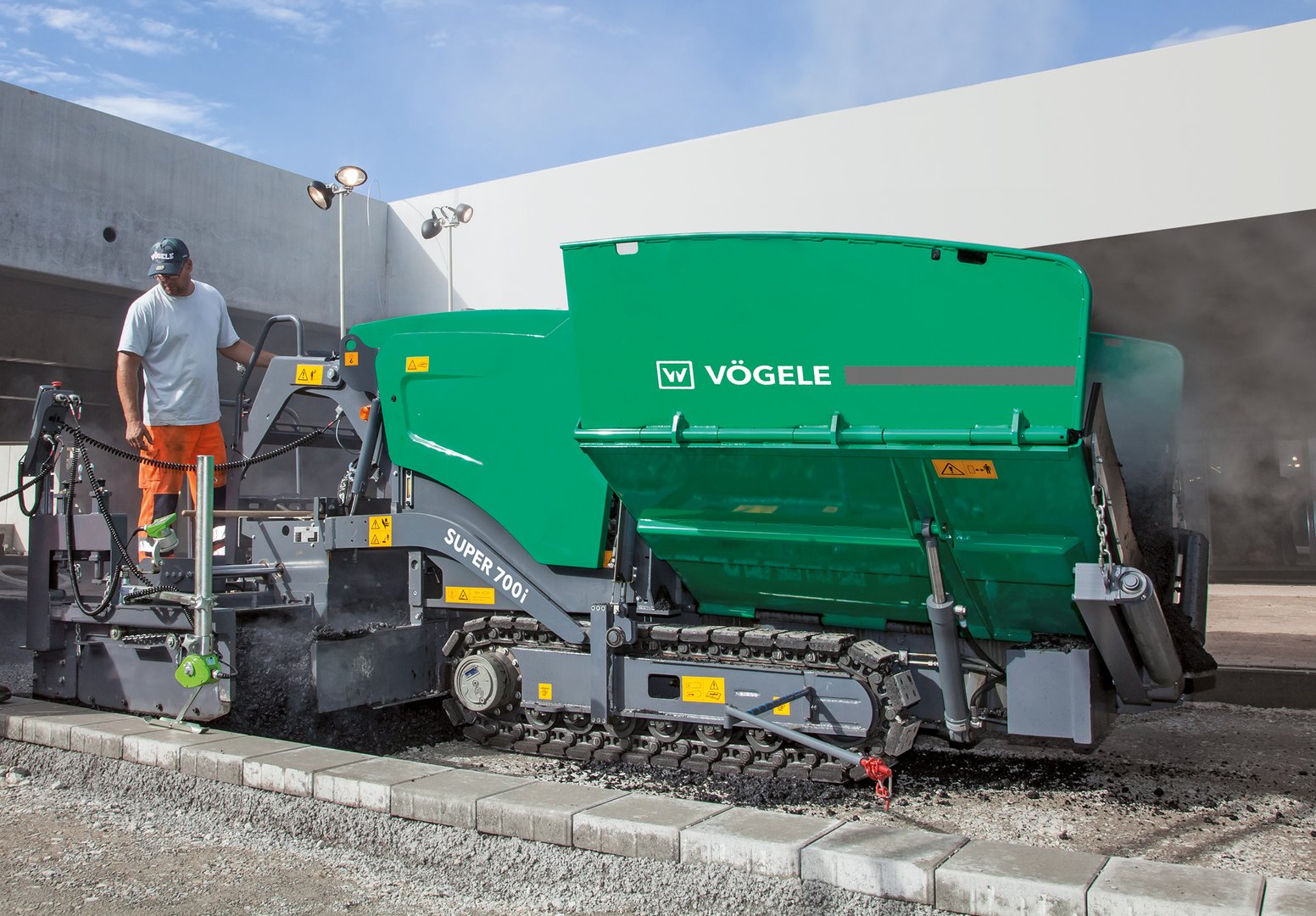

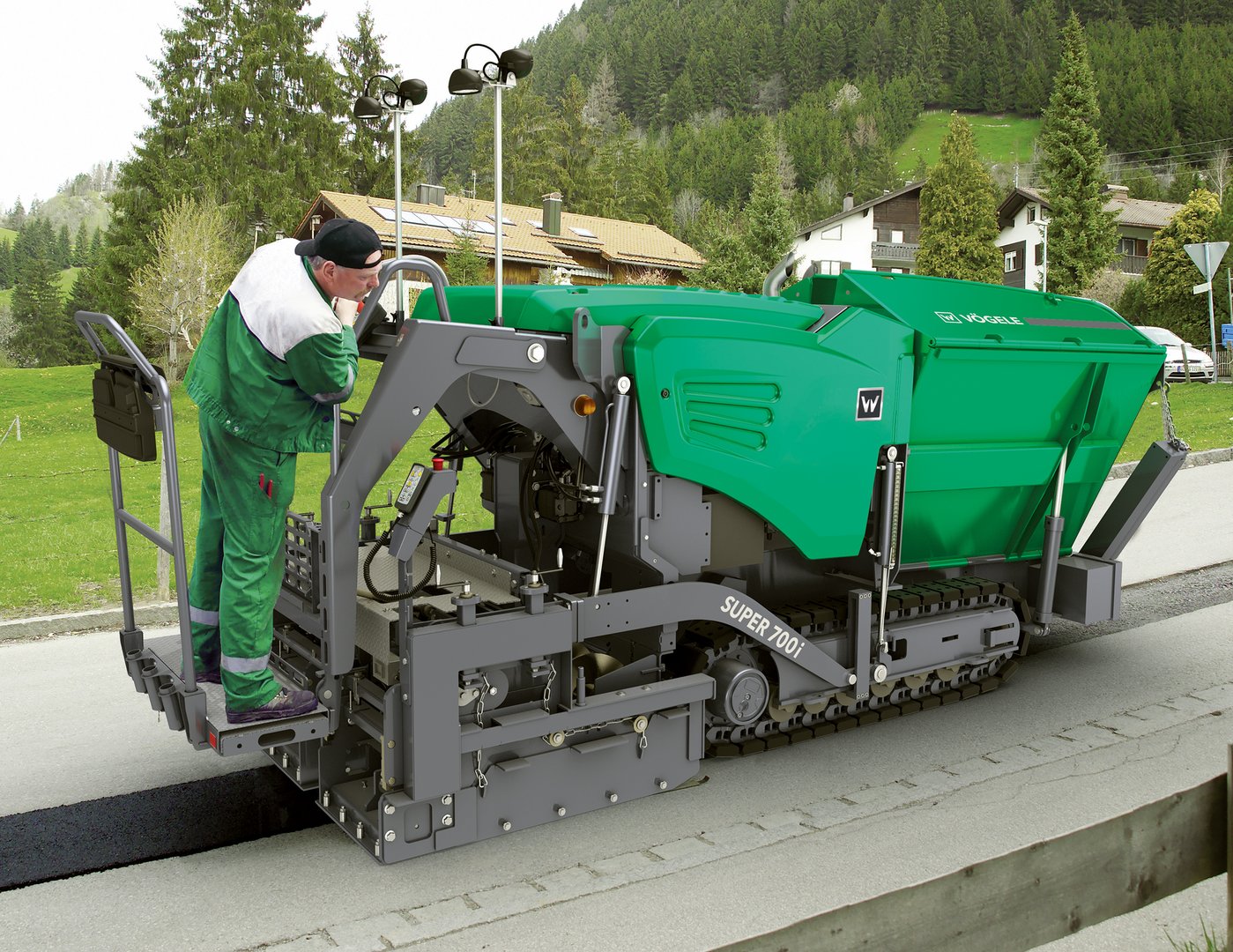

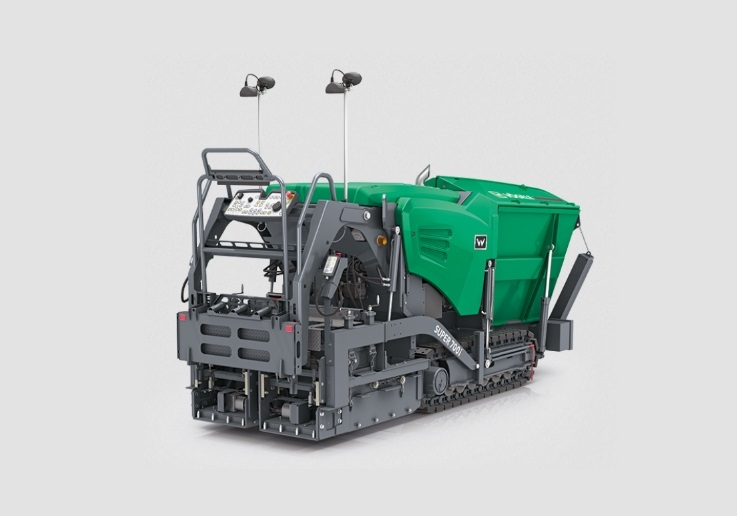

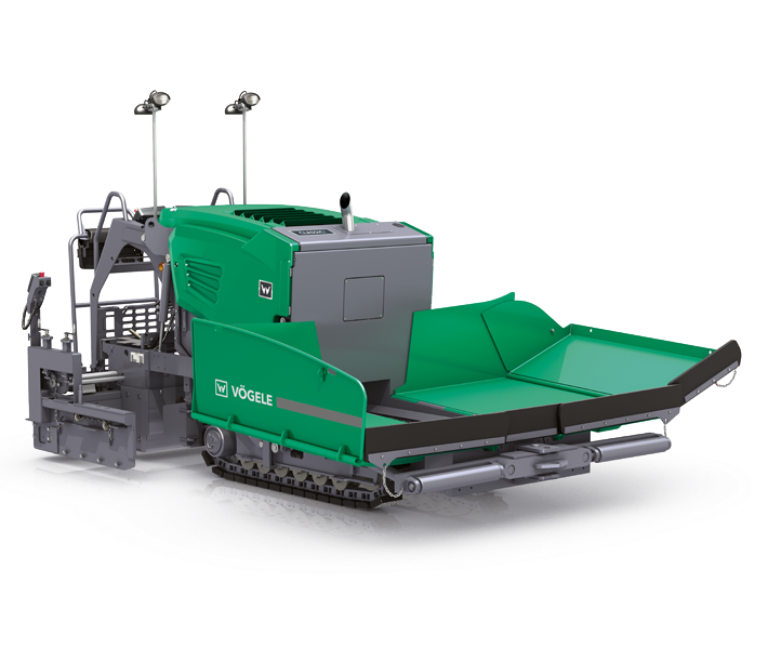

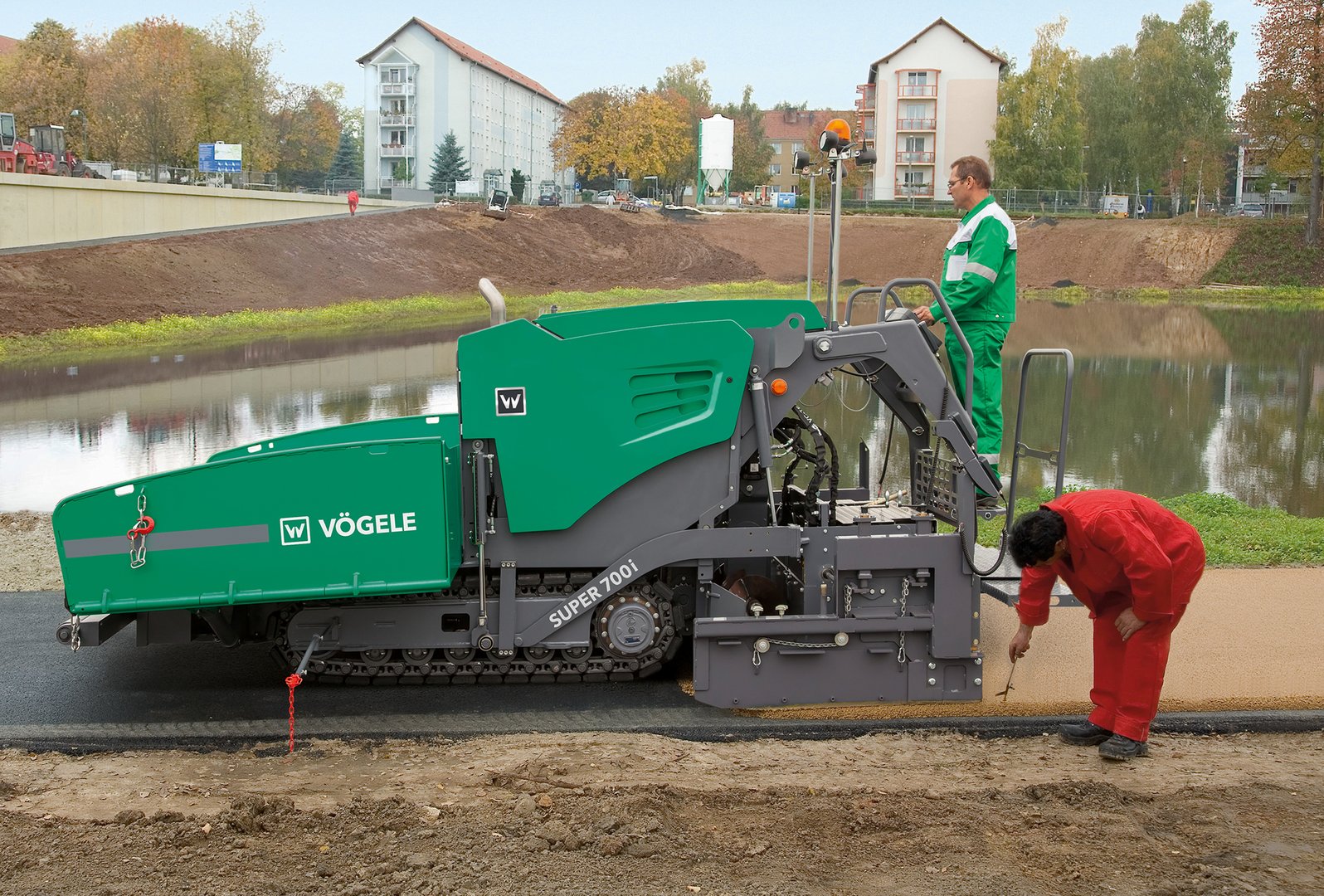

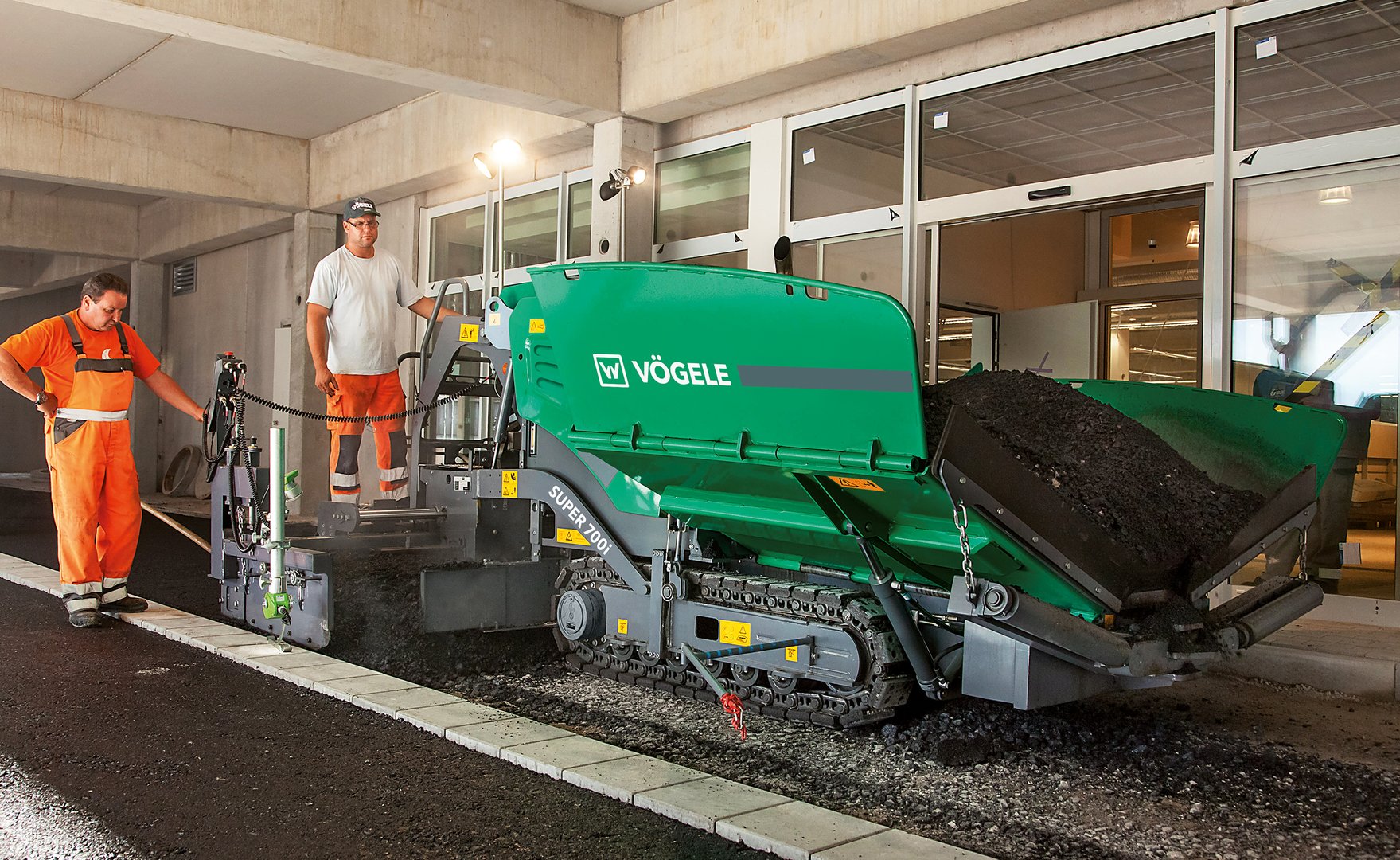

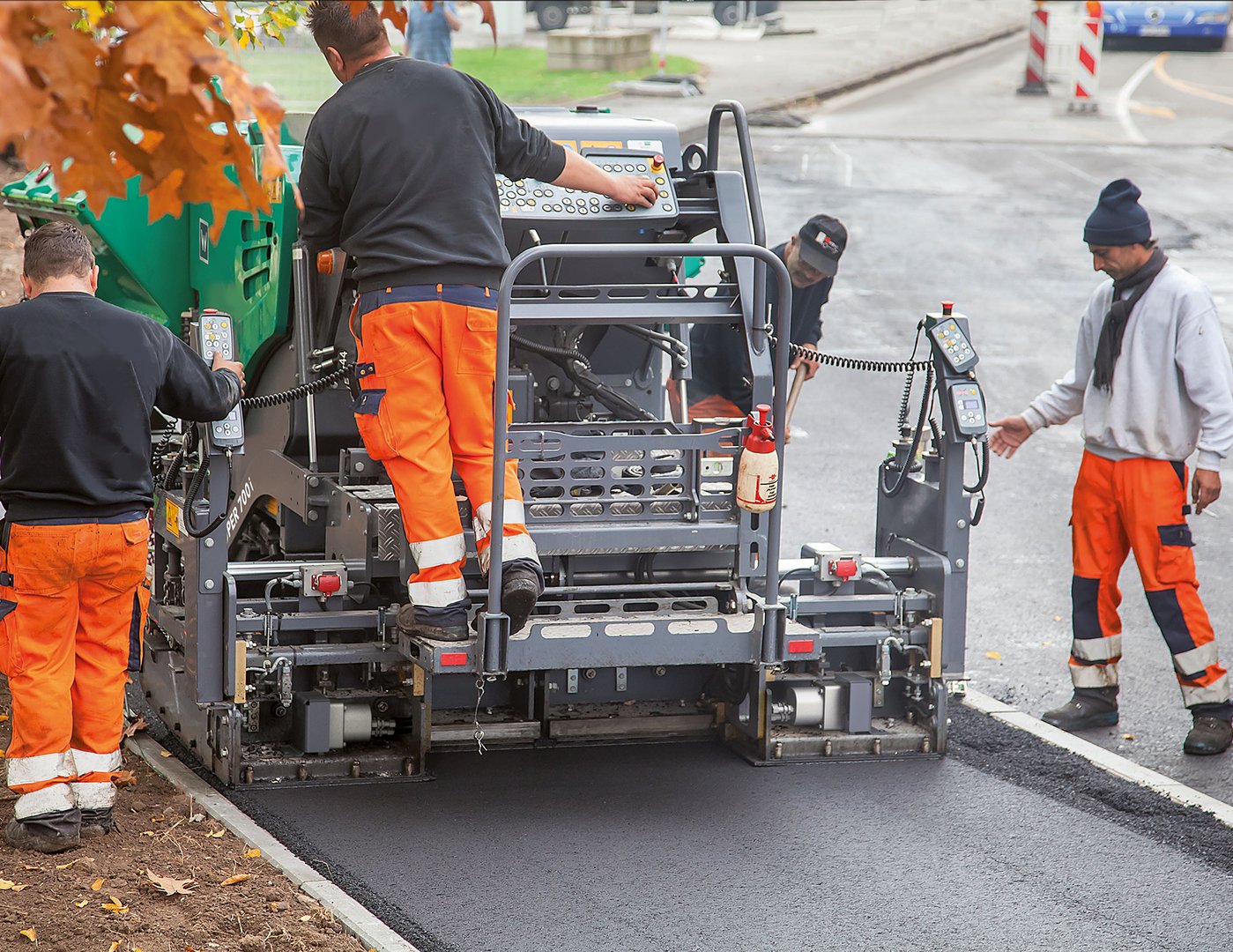

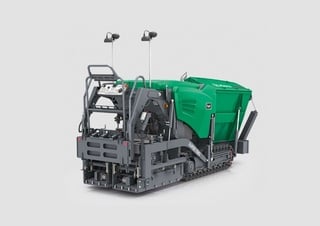

    Vögele Super 700i Specifications & Technical Data (2021-2023)

    Rate this machine now!

    Weight: 6.6t – Transport length: 4.4m – Transport width: 1.2m – Transport height: 1.98m – Standard width: 2.9m – Max. width: 3.2m

    Technical specs - Super 700i Vögele

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 6.6 t
    • Transport length 4.4 m
    • Transport width 1.2 m
    • Transport height 1.98 m
    • Standard width 2.9 m
    • Max. width 3.2 m
    • Drive DM
    • Operating speed 30 m/min
    • Type of screed V
    • Engine manuf. Deutz
    • Engine type TCD 2.9 L4
    • Engine power 55.4 kW
    • Displacement 2.9 l
    • No. of cylinders 4
    • Emission level EU Stage V, US EPA Tier 4f

    More technical details, like: hydr. extension from, hydr. extension up to, soil pressure, bunker capacity, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

    Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

    Special equipment

    • Diesel particulate filter
    • Bilateral levelling automatic
    • Vibration
    • High compaction
    • Spray unit
    • Tamper

    Carbon footprint calculator for Tracked Asphalt Pavers

    See the ERA equipment CO2 Calculator to estimate the CO2 emissions per hour of use of the Vögele Super 700i or alternative Tracked Asphalt Pavers.

    The carbon footprint analysis can be carried out considering different transportation scenarios or other variables.

    or go directly to the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.

    service provided by ERA

    Solutions

    The all-in-one 3D machine control solution for your entire fleet

    Due to the visualisation of the required result, the machine control brings many benefits:

    • Accuracy and fast goal achievements
    • Safety increases – all is managed by the machine operator
    • Lower fuel consumption – environmental friendliness
    • Limiting project delays by significantly reducing the risk of accidental damage to utility or pipe
    • Simpler documentation activities with data exported in CSV format

    Find out more details about how the machine control solution can help you in your daily routine on our website or come visit us at bauma.

    Hexagon teaser
    Ein Service von: Hexagon

    The auction format is a winner in today's market

    When the market for new equipment is tight, the market for used equipment is booming. As the supply is low and the demand high - it is a win/win situation for both buyers and sellers on auction sites.

    Learn more about the benefits of trading via auction and discover all the auctions to place a bid on right now!

    Find out more
    Blinto
    Service provided by: Blinto

    Compare Vögele Super 700i with similar Tracked Asphalt Pavers

    Press 1 image

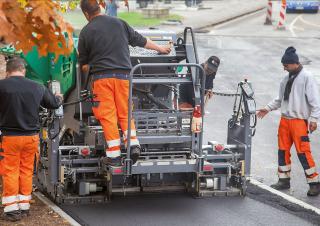

    Vögele Super 700i
