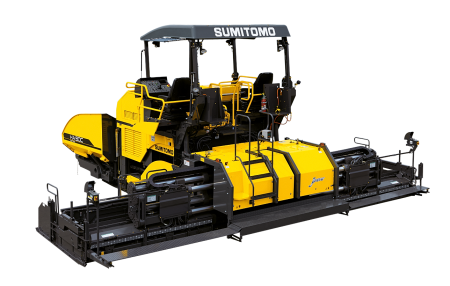

Sumitomo HA90C-2(B) Specifications & Technical Data (2017-2022)

Technical specs - HA90C-2(B) Sumitomo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.1 t

Transport length: 7.185 m

Transport width: 2.545 m

Transport height: 2.985 m

Max. width: 6 m

Hydr. extension from: 2.3 m

Hydr. extension up to: 6 m

Drive: DH

Operating speed: 20 m/min

Model series: HA

Engine manuf.: Isuzu

Engine type: AH-4HK1X

Engine power: 132.1 kW

Displacement: 5.193 l

No. of cylinders: 4

Emission level: Tier 3

More technical details, like: standard width, soil pressure, bunker capacity, type of screed, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Vibration: Yes
High compaction: No
Spray unit: No
Tamper: Yes

Download datasheets (PDF)

HA90C-2(B) Sumitomo Specification for Europe (EN)

Sumitomo HA90C-2(B) FAQ

When was the Sumitomo HA90C-2(B) manufactured?

The Sumitomo HA90C-2(B) was manufactured from 2017 to 2022.

How much does the Sumitomo HA90C-2(B) weigh?

The Sumitomo HA90C-2(B) weighs 19.1 tons.

What are the transport dimensions of the Sumitomo HA90C-2(B) tracked asphalt paver?

The Sumitomo HA90C-2(B) has a transport length of 7.19 meters, a transport width of 2.55 meters, and a transport height of 2.99 meters.

What is the operating speed of the Sumitomo HA90C-2(B) tracked asphalt paver?

The Sumitomo HA90C-2(B) has an operating speed of 20 meters per minute.

What type of drive system does the Sumitomo HA90C-2(B) tracked asphalt paver use in its undercarriage?

The Sumitomo HA90C-2(B) tracked asphalt paver uses a diesel hydraulic drive system in its undercarriage.

What are the paving performance specifications of the Sumitomo HA90C-2(B)?

The Sumitomo HA90C-2(B) has a maximum paving width of 6 meters, a hydraulic extension range from 2.3 to 6 meters, and an operating speed of 20 meters per minute.

How much is a Sumitomo HA90C-2(B) Tracked Asphalt Paver (2017u20132022) worth?

The residual value of the Sumitomo HA90C-2(B) depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
