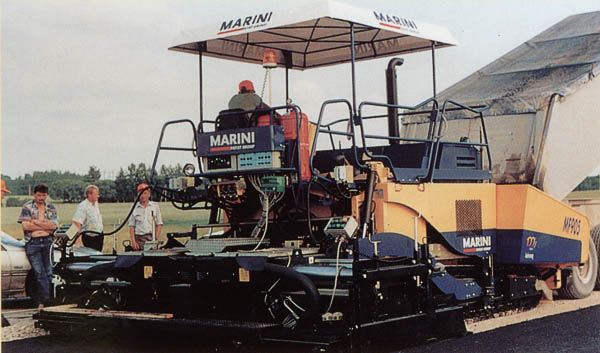

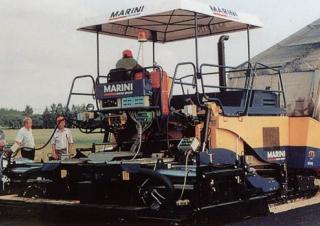

Marini MF 905 Specifications & Technical Data (1999-2004)

Technical specs - MF 905 Marini

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.3 t

Transport length: 6.42 m

Transport width: 2.5 m

Transport height: 2.9 m

Standard width: 2.5 m

Max. width: 8.5 m

Hydr. extension from: 2.5 m

Hydr. extension up to: 4.75 m

Drive: DH

Model series: MF

Engine manuf.: Deutz

Engine type: BF6M1012C

Engine power: 118 kW

More technical details, like: soil pressure, bunker capacity, operating speed, type of screed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Vibration: Yes
High compaction: No
Spray unit: No
Tamper: Yes

Marini MF 905 FAQ

When was the Marini MF 905 manufactured?

The Marini MF 905 was manufactured from 1999 to 2004.

How much does the Marini MF 905 weigh?

The Marini MF 905 weighs 19.3 tons.

What are the transport dimensions of the Marini MF 905?

The Marini MF 905 has a transport length of 6.42 meters, a transport width of 2.5 meters, and a transport height of 2.9 meters.

What type of undercarriage drive does the Marini MF 905 have?

The Marini MF 905 has a diesel hydraulic undercarriage drive system.

What are the paving width capabilities of the Marini MF 905 asphalt paver?

The Marini MF 905 has a standard paving width of 2.5 meters, a maximum paving width of 8.5 meters, and hydraulic extensions that range from 2.5 to 4.75 meters.
