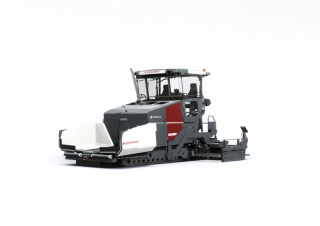

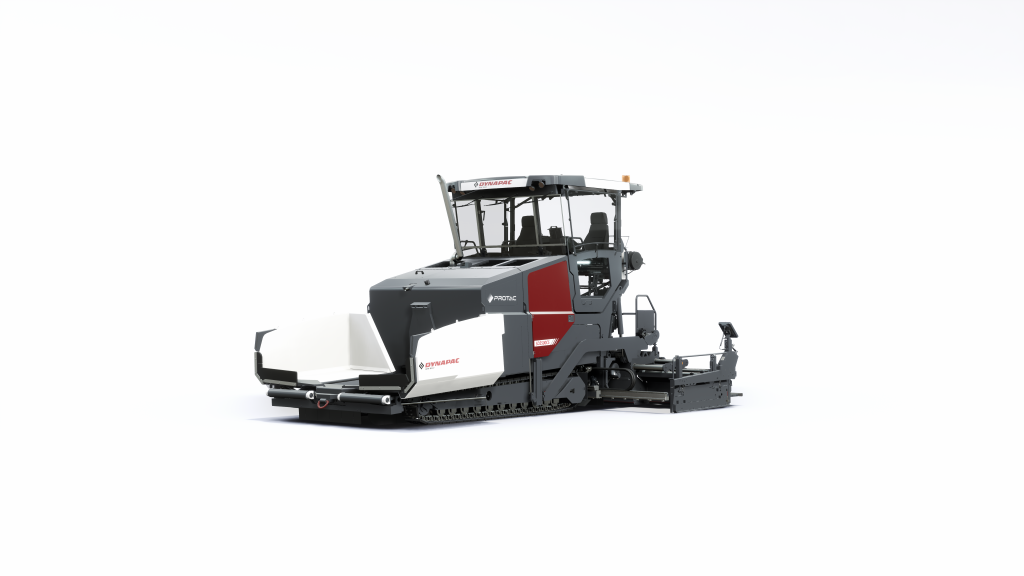

SD2500CS PROTAC Dynapac SD2500CS PROTAC Specifications & Technical Data (2026—2026)
Visit Dynapac live at
Technical specs - SD2500CS PROTAC Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 22 t
- Transport length
- 7.53 m
- Transport height
- 3.09 m
- Standard width
- 2.55 m
- Max. width
- 3.46 m
- Bunker capacity
- 6 m³
- Operating speed
- 28 m/min
- Model series
- SD
- Engine manuf.
- Cummins
- Engine type
- B6.7-C200
- Engine power
- 149 kW
- Emission level
- Stage V
More technical details, like: transport width, hydr. extension from, hydr. extension up to, drive, soil pressure, type of screed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention
Special equipment
- Diesel particulate filter
-
Yes
- Bilateral levelling automatic
-
Yes
- Vibration
-
Yes
- High compaction
-
No
- Spray unit
-
No
- Tamper
-
Yes
