DF 145 CS Dynapac DF 145 CS Specifications & Technical Data (2006—2014)

Weight: 18.9t – Transport length: 6.44m – Transport width: 2.55m – Transport height: 3.28m – Standard width: 8m – Max. width: 14m

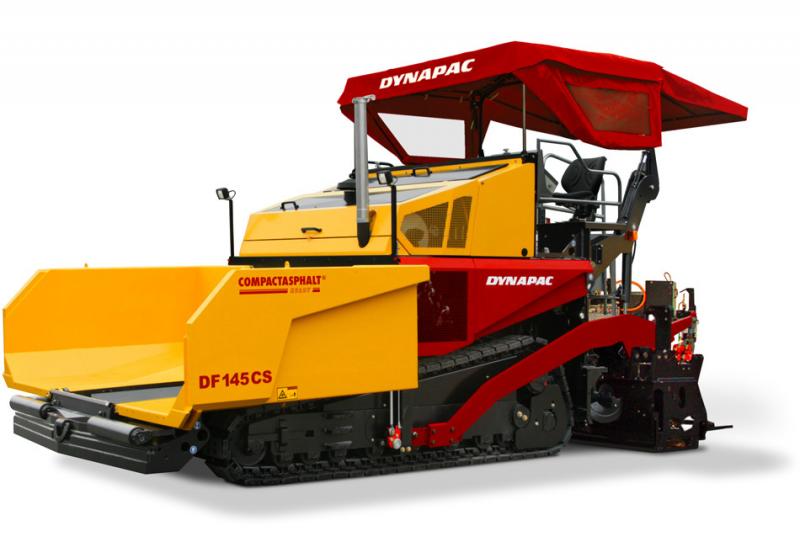

Tracked Asphalt Pavers Dynapac DF 145 CS
Tracked Asphalt Pavers Dynapac DF 145 CS
Tracked Asphalt Pavers Dynapac DF 145 CS
Tracked Asphalt Pavers Dynapac DF 145 CS

Visit Dynapac live at

Technical specs - DF 145 CS Dynapac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.9 t
Transport length
6.44 m
Transport width
2.55 m
Transport height
3.28 m
Standard width
8 m
Max. width
14 m
Hydr. extension from
2.55 m
Hydr. extension up to
5.1 m
Drive
DH
Bunker capacity
7 m³
Operating speed
23 m/min
Model series
DF
Engine manuf.
Cummins
Engine type
QSB6.7-C220
Engine power
172 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm
Emission level
T3

More technical details, like: soil pressure, type of screed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
Yes
Vibration
Yes
High compaction
No
Spray unit
No
Tamper
Yes

Download datasheets (PDF)

Dynapac DF 145 CS FAQ

When was the Dynapac DF 145 CS manufactured?

The Dynapac DF 145 CS was manufactured from 2006 to 2014.

How much does the Dynapac DF 145 CS weigh?

The Dynapac DF 145 CS weighs 18.9 tons.

What are the transport dimensions of the Dynapac DF 145 CS?

The Dynapac DF 145 CS has a transport length of 6.44 meters, a transport width of 2.55 meters, and a transport height of 3.28 meters.

What is the operating speed of the Dynapac DF 145 CS?

The Dynapac DF 145 CS has an operating speed of 23 meters per minute.

What type of drive system does the Dynapac DF 145 CS use in its undercarriage?

The Dynapac DF 145 CS uses a diesel hydraulic drive system in its undercarriage.

What are the paving performance specifications of the Dynapac DF 145 CS tracked asphalt paver?

The Dynapac DF 145 CS has a standard paving width of 8 meters, a maximum width of 14 meters with hydraulic extensions ranging from 2.55 to 5.1 meters, operates at a speed of 23 meters per minute, and has a bunker capacity of 7 cubic meters.

How much is a Dynapac DF 145 CS Tracked Asphalt Paver (2006u20132014) worth?

The residual value of the Dynapac DF 145 CS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
