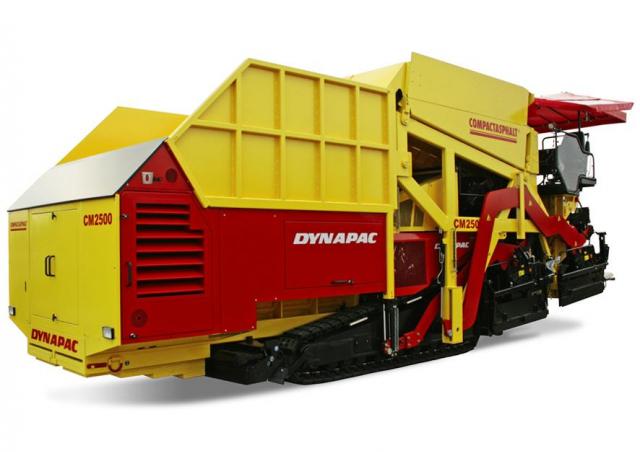

Dynapac CM 2500 Specifications & Technical Data (2010-2017)

Technical specs - CM 2500 Dynapac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.2 t

Transport length: 6.75 m

Transport width: 3 m

Transport height: 3.4 m

Standard width: 8.1 m

Max. width: 8.1 m

Hydr. extension from: 2.55 m

Hydr. extension up to: 5.1 m

Drive: DH

Bunker capacity: 15 m³

Operating speed: 23 m/min

Type of screed: V/T

Model series: CM

Engine manuf.: Deutz

Engine type: TCD2013 L04

Engine power: 128 kW

Displacement: 5.1 l

Revolutions at max torque: 1800 rpm

No. of cylinders: 4

Emission level: T3

More technical details, like: soil pressure, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: Yes
Vibration: Yes
High compaction: No
Spray unit: No
Tamper: Yes

Dynapac CM 2500 FAQ

When was the Dynapac CM 2500 manufactured?

The Dynapac CM 2500 was manufactured from 2010 to 2017.

How much does the Dynapac CM 2500 weigh?

The Dynapac CM 2500 weighs 19.2 tons.

What are the transport dimensions of the Dynapac CM 2500?

The Dynapac CM 2500 has a transport length of 6.75 meters, a transport width of 3 meters, and a transport height of 3.4 meters.

What is the operating speed of the Dynapac CM 2500?

The Dynapac CM 2500 has an operating speed of 23 meters per minute.

What type of drive system does the Dynapac CM 2500 use for its undercarriage?

The Dynapac CM 2500 uses a diesel hydraulic drive system for its undercarriage.

What are the paving performance specifications of the Dynapac CM 2500 asphalt paver?

The Dynapac CM 2500 features a tamper and vibratory screed, has a standard and maximum paving width of 8.1 meters, a hydraulic extension range from 2.55 to 5.1 meters, and an operating speed of 23 meters per minute.

How much is a Dynapac CM 2500 Tracked Asphalt Paver (2010u20132017) worth?

The residual value of the Dynapac CM 2500 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
