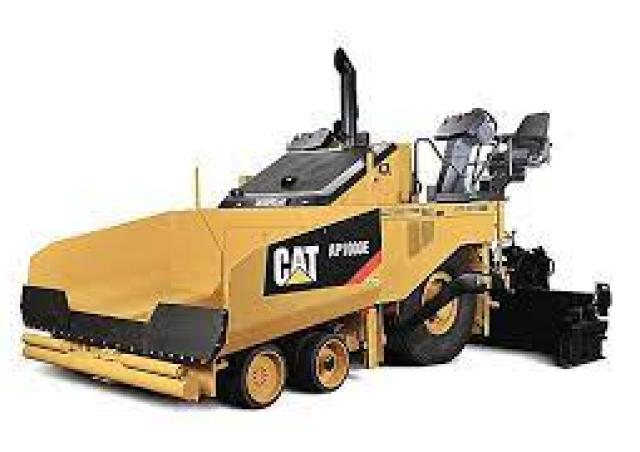

Caterpillar AP1000E Specifications & Technical Data (2011-2026)

Technical specs - AP1000E Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.508 t

Transport length: 6.61 m

Transport width: 3 m

Transport height: 2.85 m

Standard width: 3.24 m

Max. width: 3.52 m

Hydr. extension up to: 8 m

Bunker capacity: 7.1 m³

Operating speed: 61 m/min

Type of screed: V/T

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 151 kW

No. of cylinders: 6

Emission level: Tier 3. IIIA

More technical details, like: hydr. extension from, drive, soil pressure, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Vibration: No
High compaction: No
Spray unit: No
Tamper: No

Download specalog and datasheets (PDF)

AP1000E Caterpillar Specification for North America (EN)

Caterpillar AP1000E FAQ

When was the Caterpillar AP1000E manufactured?

The Caterpillar AP1000E was first produced in 2011.

How much does the Caterpillar AP1000E weigh?

The Caterpillar AP1000E weighs 19.51 tons.

What are the transport dimensions of the Caterpillar AP1000E?

The Caterpillar AP1000E has a transport length of 6.61 meters, a transport width of 3 meters, and a transport height of 2.85 meters.

What is the operating speed of the Caterpillar AP1000E asphalt paver?

The operating speed of the Caterpillar AP1000E asphalt paver is 61 meters per minute.

What are the paving performance specifications of the Caterpillar AP1000E tracked asphalt paver?

The Caterpillar AP1000E features a tamper and vibratory screed, a standard paving width of 3.24 meters, a maximum width of 3.52 meters, hydraulic extension up to 8 meters, an operating speed of 61 meters per minute, and a bunker capacity of 7.1 cubic meters.
