AFT 270 E/G Ammann AFT 270 E/G Specifications & Technical Data (2009—2016)

Weight: 5.2t – Transport length: 4.25m – Transport width: 1.65m – Transport height: 3.1m – Standard width: 1.4m – Max. width: 2.73m

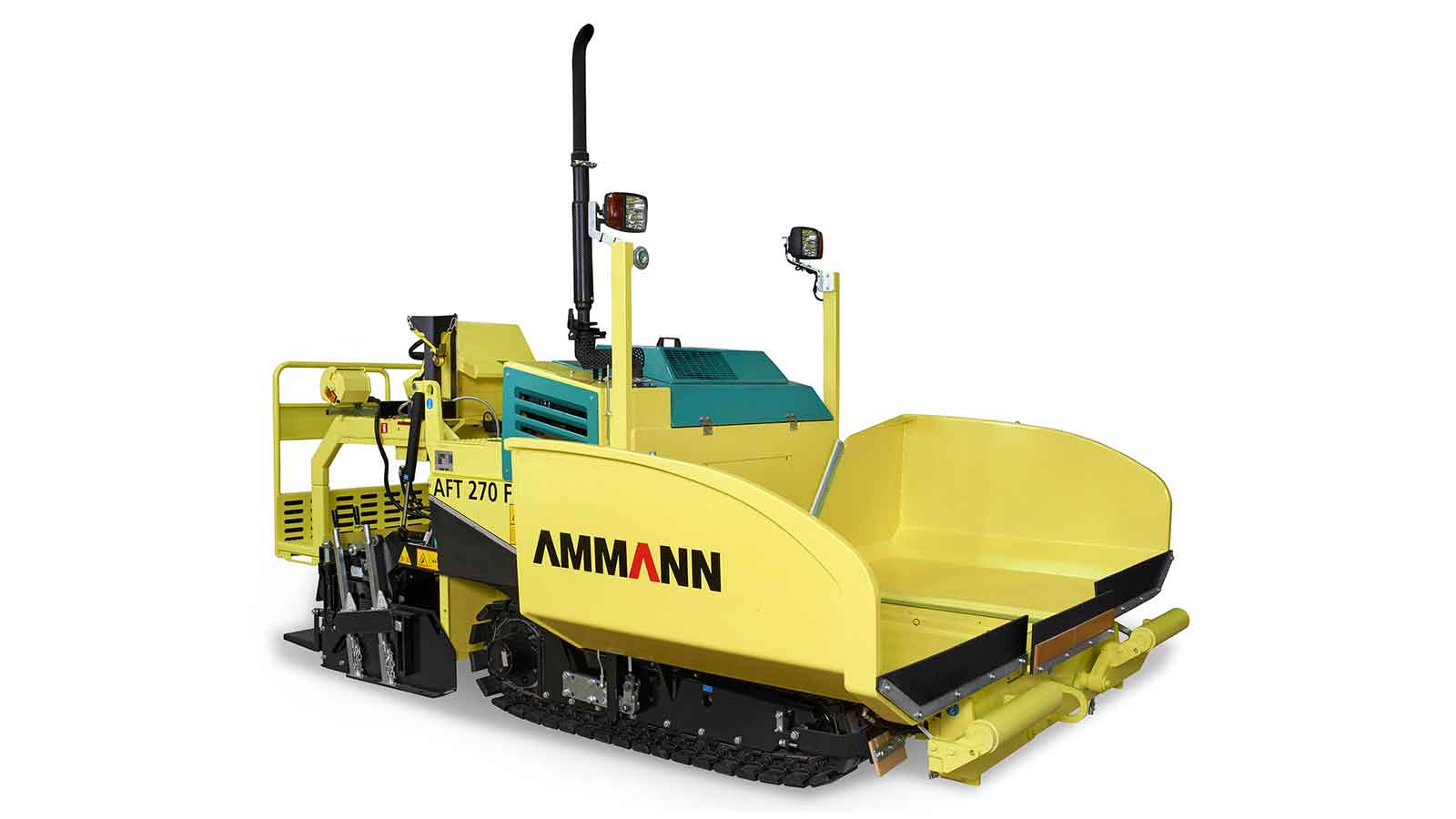

Tracked Asphalt Pavers Ammann AFT 270 E/G

AFT 270 E/G

Years of manufacture: 2009—2016

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AFT 270 E/G Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.2 t

Transport length: 4.25 m

Transport width: 1.65 m

Transport height: 3.1 m

Standard width: 1.4 m

Max. width: 2.73 m

Hydr. extension from: 0.5 m

Hydr. extension up to: 3.33 m

Bunker capacity: 3.1 m³

Operating speed: 27 m/min

Model series: AFT

Engine manuf.: Deutz

Engine type: D2011 L03i

Engine power: 33 kW

Displacement: 2.33 l

Revolutions at max torque: 1700 rpm

More technical details, like: drive, soil pressure, type of screed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: Yes
Vibration: Yes
High compaction: No
Spray unit: No
Tamper: No

Download datasheets (PDF)

Ammann AFT 270 E/G FAQ

When was the Ammann AFT 270 E/G manufactured?

The Ammann AFT 270 E/G was manufactured from 2009 to 2016.

How much does the Ammann AFT 270 E/G weigh?

The Ammann AFT 270 E/G weighs 5.2 tons.

What are the transport dimensions of the Ammann AFT 270 E/G tracked asphalt paver?

The Ammann AFT 270 E/G has a transport length of 4.25 meters, a transport width of 1.65 meters, and a transport height of 3.1 meters.

What is the operating speed of the Ammann AFT 270 E/G?

The Ammann AFT 270 E/G has an operating speed of 27 meters per minute.

What are the paving performance specifications of the Ammann AFT 270 E/G asphalt paver?

The Ammann AFT 270 E/G has a standard paving width of 1.4 meters, a maximum paving width of 2.73 meters with hydraulic extensions ranging from 0.5 to 3.33 meters, and an operating speed of 27 meters per minute.
