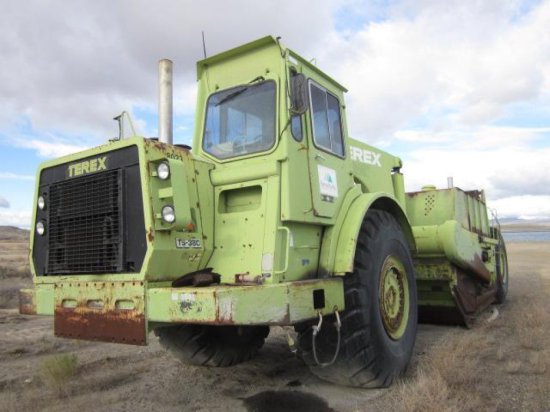

TS38C Terex TS38C Specifications & Technical Data (1990—2023)
Technical specs - TS38C Terex
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 51.529 t
- Standard tyres
- 37.25-35 (42PR) E3
- Power of 2nd engine
- 209 kW
- Dump capacity
- 35.2 m³
- Cutting width
- 3391 mm
- Transport length
- 14.78 m
- Transport width
- 3.45 m
- Transport height
- 3.94 m
- Turning radius outside
- 13.7 m
- Net load
- 37 t
- Engine manuf.
- Detroit Diesel
- Engine type
- 12V-71TA
- Engine power
- 380 kW
- Displacement
- 14 l
- Revolutions at max torque
- 1200 rpm
- Max. torque
- 2047 Nm
- No. of cylinders
- 12
- Cylinder bore x stroke
- 108x127 mm
More technical details, like: max. total weight, travel speed, model series, dimension lxwxh, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Aircondition
-
No
