TS14F Terex TS14F Specifications & Technical Data (1999—2023)

Weight: 28.27t – Standard tyres: 29.5-25 (28PR) E3 – Power of 2nd engine: 119kW – Dump capacity: 15.3m³ – Transport length: 12.4m – Transport width: 3.06m

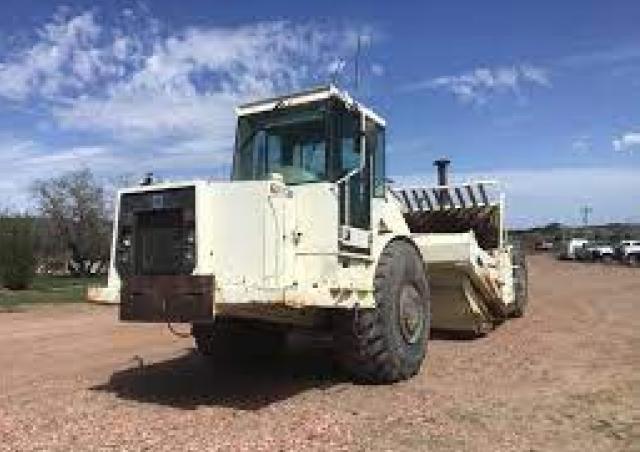

Scrapers Terex TS14F

Technical specs - TS14F Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28.27 t
Standard tyres
29.5-25 (28PR) E3
Power of 2nd engine
119 kW
Dump capacity
15.3 m³
Transport length
12.4 m
Transport width
3.06 m
Transport height
3.25 m
Travel speed
45.4 km/h
Turning radius outside
10 m
Net load
21.8 t
Engine manuf.
Detroit Diesel
Engine type
Series 40
Engine power
134 kW
Displacement
7.6 l
Revolutions at max torque
1600 rpm
Max. torque
720 Nm
No. of cylinders
6
Cylinder bore x stroke
109x136 mm

More technical details, like: cutting width, max. total weight, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Aircondition
No
