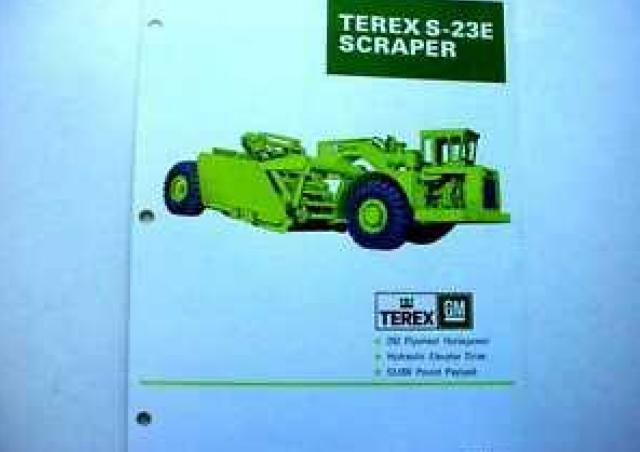

S-23E Terex S-23E Specifications & Technical Data (1973—1989)
Technical specs - S-23E Terex
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 29.688 t
- Standard tyres
- 29.5X29-28 PR
- Dump capacity
- 17.6 m³
- Transport length
- 12.421 m
- Transport width
- 3.175 m
- Transport height
- 3.81 m
- Travel speed
- 38.6 km/h
- Net load
- 24.041 t
- Engine manuf.
- General Motors
- Engine type
- 8V-71T
- Engine power
- 333 HP
- Displacement
- 9.3 l
- Revolutions at max torque
- 1400 rpm
- No. of cylinders
- 8
- Cylinder bore x stroke
- 108x127 mm
More technical details, like: power of 2nd engine, cutting width, max. total weight, turning radius outside, model series, dimension lxwxh, max. torque, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Aircondition
-
No
