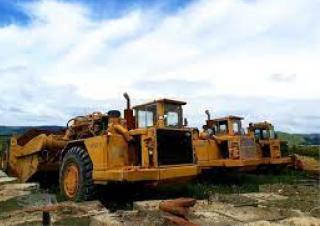

WS23S-1 Komatsu WS23S-1 Specifications & Technical Data (1984—1988)

Weight: 35.7t – Standard tyres: 33.5-33-32 PR – Dump capacity: 24m³ – Cutting width: 3380mm – Transport length: 13.47m – Transport width: 3.69m

Scrapers Komatsu WS23S-1

Visit Komatsu live at

Technical specs - WS23S-1 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.7 t
Standard tyres
33.5-33-32 PR
Dump capacity
24 m³
Cutting width
3380 mm
Transport length
13.47 m
Transport width
3.69 m
Transport height
3.565 m
Travel speed
54 km/h
Net load
34 t
Model series
WS
Engine manuf.
Komatsu
Engine type
KT1150
Engine power
327 kW
Displacement
18.85 l
Revolutions at max torque
2100 rpm

More technical details, like: power of 2nd engine, max. total weight, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)
