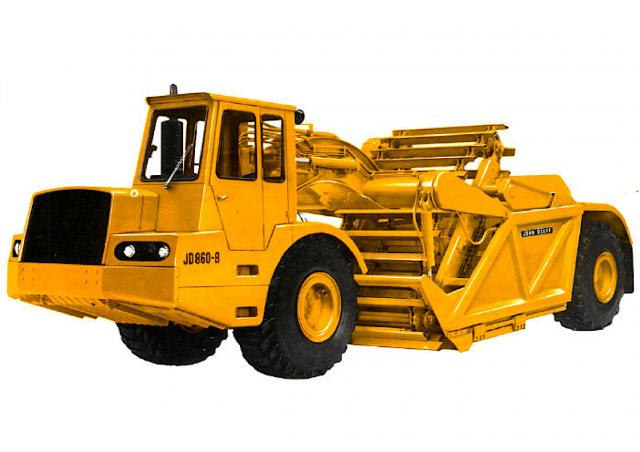

JD860-B John Deere Construction JD860-B Specifications & Technical Data (1978—2021)
Technical specs - JD860-B John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 21.7 t
- Dump capacity
- 11.47 m³
- Cutting width
- 2690 mm
- max. total weight
- 38.71 t
- Transport length
- 7.62 m
- Transport width
- 2.9 m
- Transport height
- 3.35 m
- Travel speed
- 48.3 km/h
- Turning radius outside
- 9.89 m
- Net load
- 17.01 t
- Model series
- B
- Engine manuf.
- John Deere
- Engine type
- N/A
- Engine power
- 168 kW
- Max. torque
- 982 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 130x127 mm
More technical details, like: standard tyres, power of 2nd engine, dimension lxwxh, displacement, revolutions at max torque, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Aircondition
-
No
