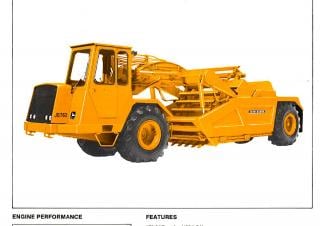

JD762 John Deere Construction JD762 Specifications & Technical Data (1976—2021)

Weight: 15.627t – Dump capacity: 8.4m³ – Cutting width: 2290mm – max. total weight: 28.1t – Transport length: 6m – Transport width: 2.44m

Technical specs - JD762 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.627 t
Dump capacity
8.4 m³
Cutting width
2290 mm
max. total weight
28.1 t
Transport length
6 m
Transport width
2.44 m
Transport height
2.84 m
Travel speed
48.3 km/h
Turning radius outside
9.14 m
Net load
12.47 t
Engine manuf.
John Deere
Engine type
N/A
Engine power
130.5 kW
Displacement
10.144 l
Max. torque
746 Nm
No. of cylinders
6
Cylinder bore x stroke
130x127 mm

More technical details, like: standard tyres, power of 2nd engine, model series, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Aircondition
No
