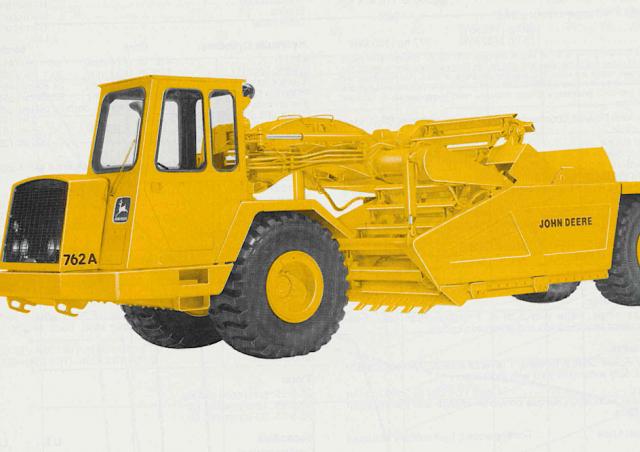

762A John Deere Construction 762A Specifications & Technical Data (1983—2021)

Weight: 16.102t – Dump capacity: 8.4m³ – Cutting width: 2290mm – max. total weight: 28.58t – Transport length: 6m – Transport width: 2.44m

Technical specs - 762A John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.102 t
Dump capacity
8.4 m³
Cutting width
2290 mm
max. total weight
28.58 t
Transport length
6 m
Transport width
2.44 m
Transport height
3 m
Travel speed
45 km/h
Turning radius outside
9.14 m
Net load
12.47 t
Model series
A
Engine manuf.
John Deere
Engine type
N/A
Engine power
130 kW
Displacement
7.638 l
Max. torque
773 Nm
No. of cylinders
6
Cylinder bore x stroke
116x121 mm

More technical details, like: standard tyres, power of 2nd engine, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Aircondition
No
