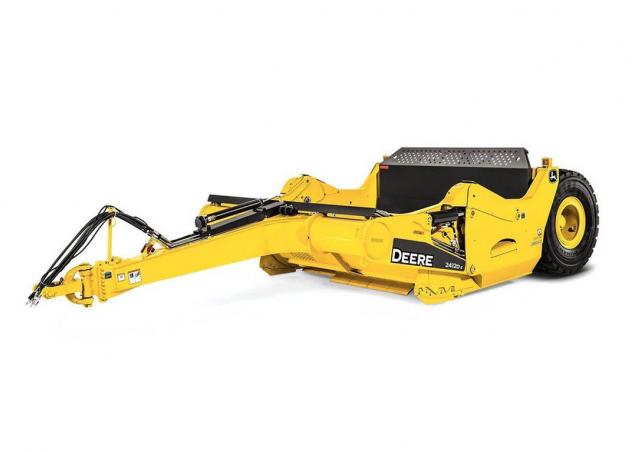

    John Deere Construction 2412D E Specifications & Technical Data (2015-2022)

    Rate this machine now!

    Weight: 12.79t – Standard tyres: 23.5x25 – Dump capacity: 18.3m³ – Cutting width: 3658mm – Transport length: 9.98m – Transport width: 4.09m

    Technical specs - 2412D E John Deere Construction

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 12.79 t
    • Standard tyres 23.5x25
    • Dump capacity 18.3 m³
    • Cutting width 3658 mm
    • Transport length 9.98 m
    • Transport width 4.09 m
    • Transport height 2.34 m
    • Engine manuf. Kohler
    • Engine type KDI 2504
    • Engine power 48 kW
    • Revolutions at max torque 1500 rpm
    • Max. torque 305 Nm
    • No. of cylinders 4
    • Emission level V
    • Power of 2nd engine ###
    • max. total weight ###
    • Travel speed ###
    • Turning radius outside ###
    • Net load ###
    • Dimension lxwxh ###
    • Displacement ###
    • Cylinder bore x stroke ###

    Basic model with ROPS cabin and std. trough

    Special equipment

    • Diesel particulate filter
    • Aircondition
