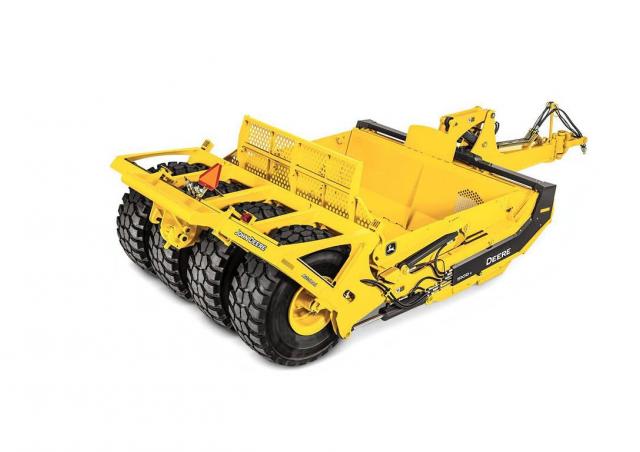

John Deere Construction 1510D C
- Weight:
- 7.62 t
- Standard tyres:
- 17.5x25-in. 16-Ply E3 Bias
- Dump capacity:
- 11.5 m³
- Cutting width:
- 3048 mm
1510D C John Deere Construction 1510D C Specifications & Technical Data (2015—2026)
Technical specs - 1510D C John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.62 t
- Standard tyres
- 17.5x25-in. 16-Ply E3 Bias
- Dump capacity
- 11.5 m³
- Cutting width
- 3048 mm
- Transport length
- 7.569 m
- Transport width
- 3.607 m
- Transport height
- 2.286 m
- Turning radius outside
- 9.4 m
- Model series
- D
- Engine manuf.
- Kohler
- Engine type
- KDI2504
- Engine power
- 48 kW
- Max. torque
- 305/1500 Nm
- No. of cylinders
- 4
More technical details, like: power of 2nd engine, max. total weight, travel speed, net load, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Aircondition
-
No
