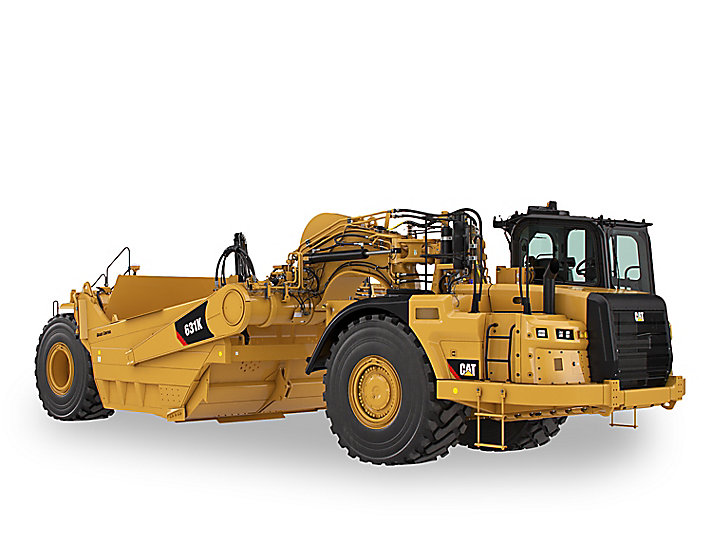

631K Caterpillar 631K Specifications & Technical Data (2017—2019)

Weight: 46.6t – Standard tyres: 37.25R35**E3 – Dump capacity: 26m³ – Cutting width: 3510mm – max. total weight: 83.8t – Transport length: 15.164m

Scrapers Caterpillar 631K

Technical specs - 631K Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
46.6 t
Standard tyres
37.25R35**E3
Dump capacity
26 m³
Cutting width
3510 mm
max. total weight
83.8 t
Transport length
15.164 m
Transport width
3.937 m
Transport height
3.892 m
Travel speed
55.8 km/h
Net load
37.2 t
Engine manuf.
Caterpillar
Engine type
C18 Acert
Engine power
425 kW
Displacement
18.1 l
Emission level
Tier 2/ II

More technical details, like: power of 2nd engine, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Aircondition
Yes
