631C Caterpillar 631C Specifications & Technical Data (1974—2026)

Weight: 35.9t – Standard tyres: 29.5x35 34PR – Dump capacity: 23m³ – Cutting width: 3300mm – max. total weight: 68.6t – Transport length: 13.5m

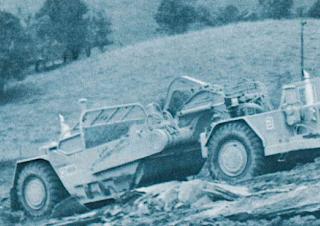

Scrapers Caterpillar 631C

Technical specs - 631C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.9 t
Standard tyres
29.5x35 34PR
Dump capacity
23 m³
Cutting width
3300 mm
max. total weight
68.6 t
Transport length
13.5 m
Transport width
3.8 m
Transport height
3.9 m
Travel speed
50 km/h
Turning radius outside
11.4 m
Net load
32.7 t
Engine manuf.
N/A
Engine type
N/A
Engine power
309 kW

More technical details, like: power of 2nd engine, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Aircondition
No
