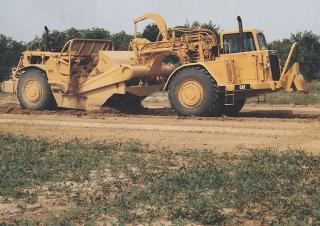

627E Caterpillar 627E Specifications & Technical Data (1990—2012)

Weight: 34.481t – Standard tyres: 33.25-29 26PR (E-3) – Power of 2nd engine: 168kW – Dump capacity: 15.3m³ – Cutting width: 3023mm – max. total weight: 56.93t

Scrapers Caterpillar 627E

Technical specs - 627E Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.481 t
Standard tyres
33.25-29 26PR (E-3)
Power of 2nd engine
168 kW
Dump capacity
15.3 m³
Cutting width
3023 mm
max. total weight
56.93 t
Transport length
12.89 m
Transport width
3.47 m
Transport height
3.81 m
Travel speed
51.3 km/h
Turning radius outside
10.9 m
Net load
21.8 t
Engine manuf.
Caterpillar
Engine type
3306
Engine power
246.2 kW
Displacement
10.5 l
No. of cylinders
6
Cylinder bore x stroke
121x152 mm

More technical details, like: model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Aircondition
No
