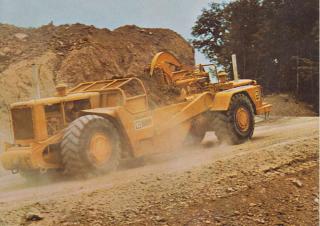

Caterpillar 627
- Weight:
- 28.8 t
- Standard tyres:
- 29.5-29 28PR
- Dump capacity:
- 15.3 m³
- Cutting width:
- 3000 mm
627 Caterpillar 627 Specifications & Technical Data (1970—2026)
Technical specs - 627 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 28.8 t
- Standard tyres
- 29.5-29 28PR
- Dump capacity
- 15.3 m³
- Cutting width
- 3000 mm
- max. total weight
- 50.6 t
- Travel speed
- 54.1 km/h
- Turning radius outside
- 11.1 m
- Net load
- 21.8 t
- Engine manuf.
- Caterpillar
- Engine type
- D333T
- Engine power
- 336 kW
- Displacement
- 10.5 l
- No. of cylinders
- 6
- Cylinder bore x stroke
- 121x152 mm
More technical details, like: power of 2nd engine, transport length, transport width, transport height, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Aircondition
-
No
