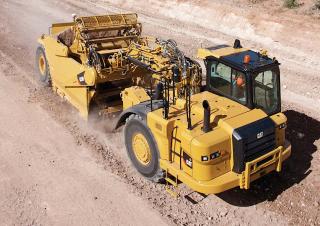

623H Caterpillar 623H Specifications & Technical Data (2012—2026)

Weight: 39.259t – Dump capacity: 17.6m³ – Cutting width: 3136mm – max. total weight: 64.98t – Transport length: 13.77m – Transport width: 3.57m

Scrapers Caterpillar 623H

Technical specs - 623H Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
39.259 t
Dump capacity
17.6 m³
Cutting width
3136 mm
max. total weight
64.98 t
Transport length
13.77 m
Transport width
3.57 m
Transport height
4.04 m
Travel speed
53.9 km/h
Net load
25.04 t
Engine manuf.
Caterpillar
Engine type
C13 Acert
Engine power
304 kW
Displacement
12.5 l
Cylinder bore x stroke
130x157 mm

More technical details, like: standard tyres, power of 2nd engine, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Aircondition
No
