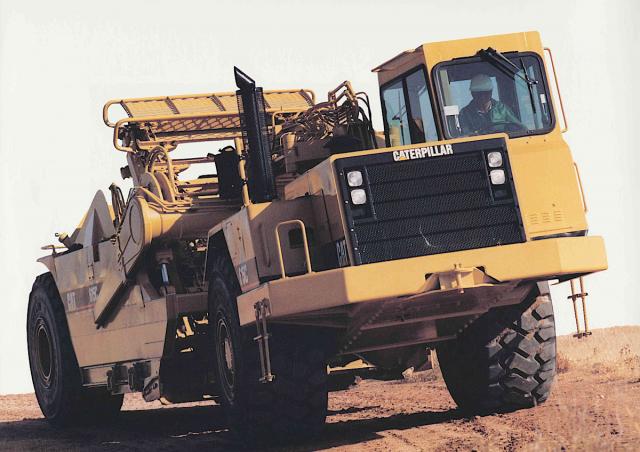

613C Caterpillar 613C Specifications & Technical Data (1992—2026)

Weight: 15.264t – Standard tyres: 23.5 R25 – Dump capacity: 8.4m³ – Cutting width: 2350mm – max. total weight: 27.39t – Transport length: 10.14m

Technical specs - 613C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.264 t
Standard tyres
23.5 R25
Dump capacity
8.4 m³
Cutting width
2350 mm
max. total weight
27.39 t
Transport length
10.14 m
Transport width
2.44 m
Transport height
3.1 m
Travel speed
35.1 km/h
Turning radius outside
4.47 m
Net load
11.98 t
Engine manuf.
Caterpillar
Engine type
3116
Engine power
131 kW
Displacement
6.6 l
No. of cylinders
6
Cylinder bore x stroke
105x127 mm

More technical details, like: power of 2nd engine, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Aircondition
No
