    Lectura specs Construction machinery Scrapers Scrapers Caterpillar Caterpillar 613 specifications

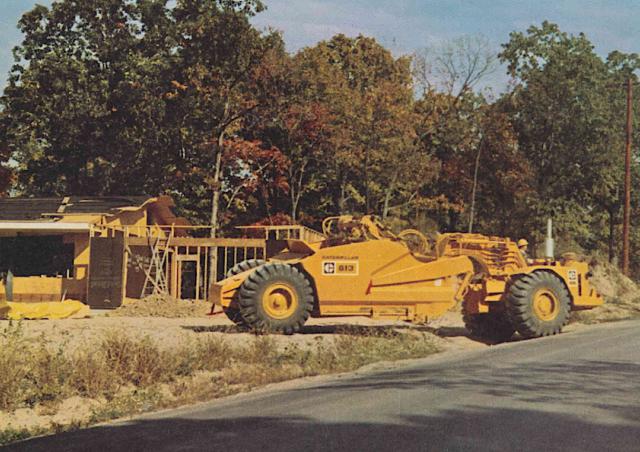

    Technical specs - 613 Caterpillar

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 12.3 t
    Standard tyres Tractor: 18.00-25 12PR/Scraper: 18.00-25 16PR
    Dump capacity 8.4 m³
    Cutting width 2438 mm
    max. total weight 12.3 t
    Transport length 9.7 m
    Transport width 2.44 m
    Transport height 2.85 m
    Travel speed 43 km/h
    Turning radius outside 9.2 m
    Net load 11.8 t
    Engine manuf. Caterpillar
    Engine type 3160
    Engine power 112 kW
    Engine power 150 HP
    Displacement 10.4 l
    Cylinder bore x stroke 114x127 mm
    Power of 2nd engine ###
    Dimension lxwxh ###
    Revolutions at max torque ###
    Max. torque ###
    No. of cylinders ###
    Weight ###
    Emission level ###

    Basic model with ROPS cabin and std. trough

    613 Caterpillar - Special equipment

    • Diesel particulate filter
    • Aircondition
