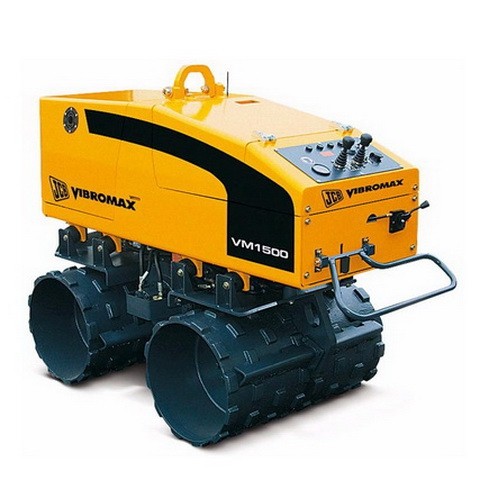

VM 1500 M JCB-Vibromax VM 1500 M Specifications & Technical Data (2008—2015)
Technical specs - VM 1500 M JCB-Vibromax
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.5 t
- Transport length
- 1.87 m
- Transport width
- 0.63 m
- Transport height
- 1.28 m
- Vibration
- e
- Frequency
- 31 Hz
- Roller width
- 0.63 m
- Rollers Ø
- 0.5 m
- Amplitude
- 2.4 mm
- Statical line load
- 11.9 kg/cm
- Model series
- VM
- Engine manuf.
- Kubota
- Engine type
- D1005BB-EC
- Engine power
- 16.8 kW
- Displacement
- 1 l
- No. of cylinders
- 3
More technical details, like: drive, travel speed, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model
Special equipment
- Diesel particulate filter
-
No
- Remote control
-
No
Download datasheets (PDF)
JCB-Vibromax VM 1500 M FAQ
How much does the JCB-Vibromax VM 1500 M weigh?
What are the transport dimensions of the JCB-Vibromax VM 1500 M?
What are the compaction capabilities of the JCB-Vibromax VM 1500 M vibration trench roller?
What are the roller specifications of the JCB-Vibromax VM 1500 M?
How much is a JCB-Vibromax VM 1500 M Vibration Trench Roller (2008u20132015) worth?
Machine inspection
Ask for inspection of your JCB-Vibromax VM 1500 M from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare JCB-Vibromax VM 1500 M with similar Vibration Trench Rollers

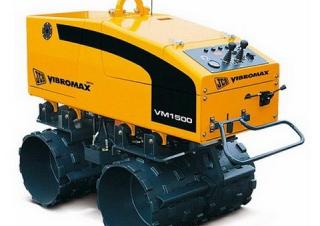

JCB-Vibromax VM 1500 M
