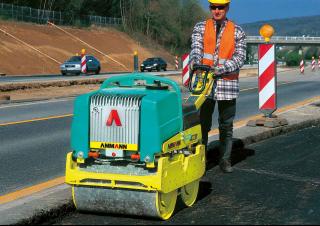

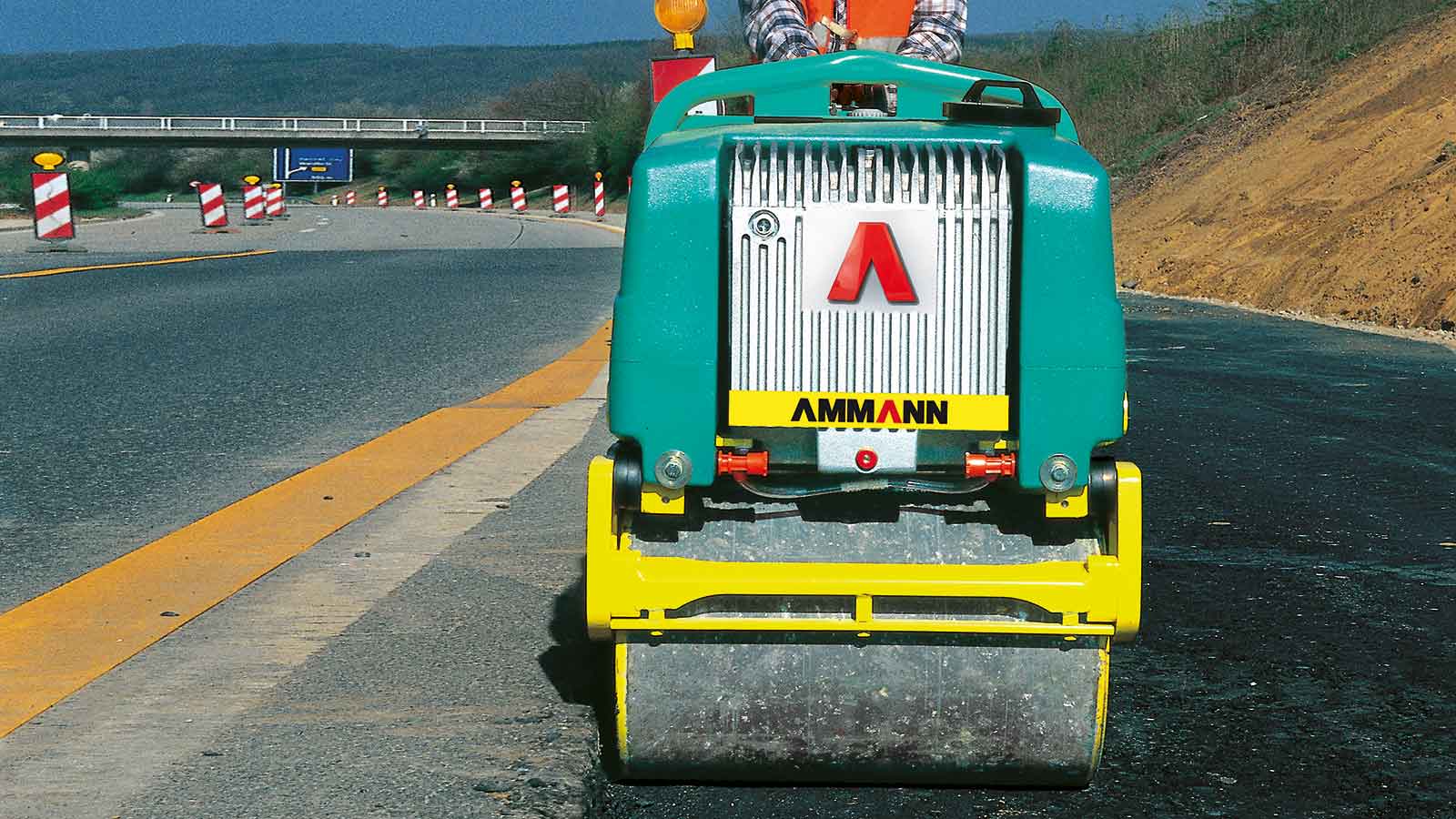

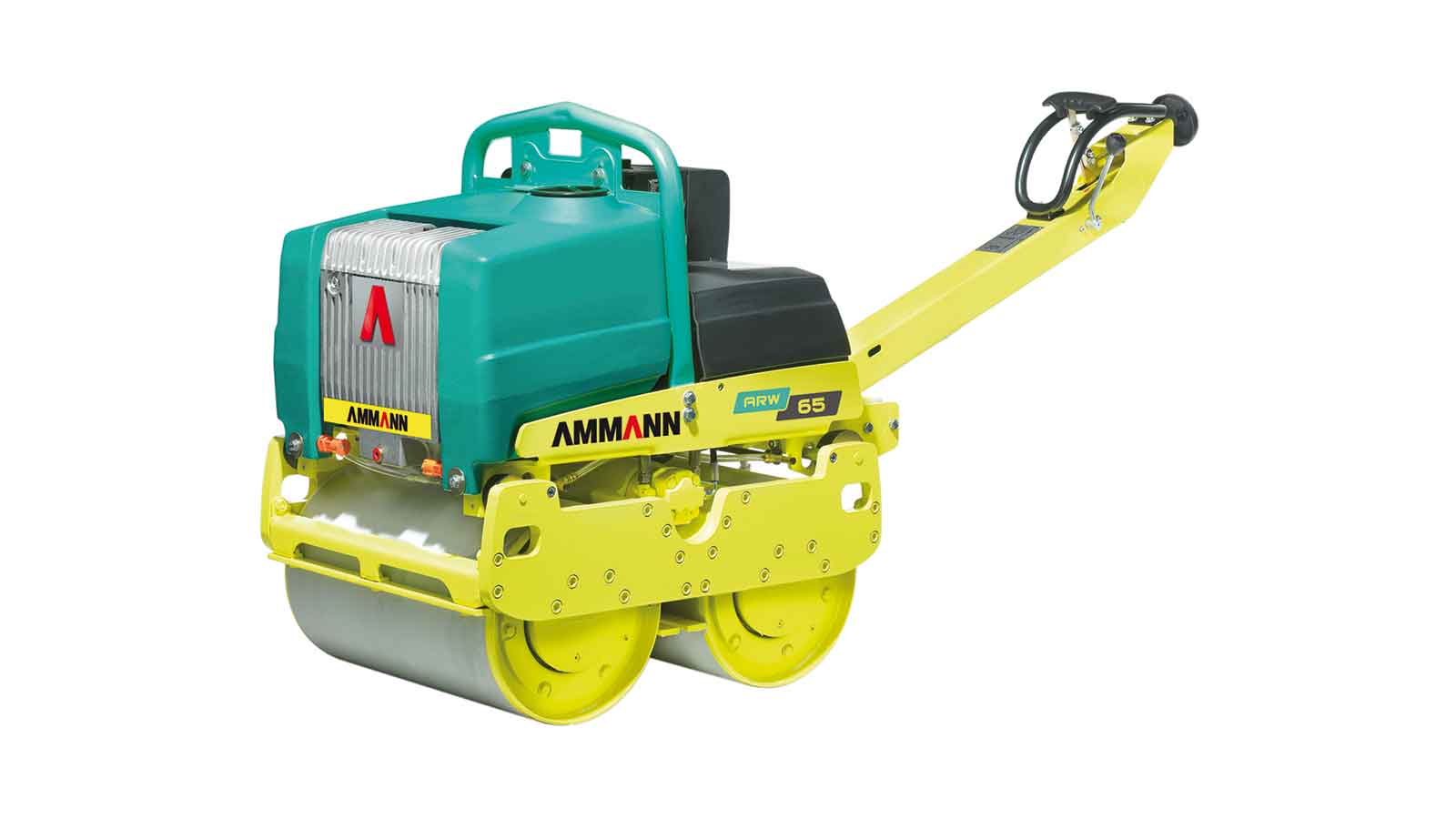

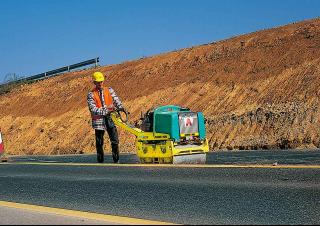

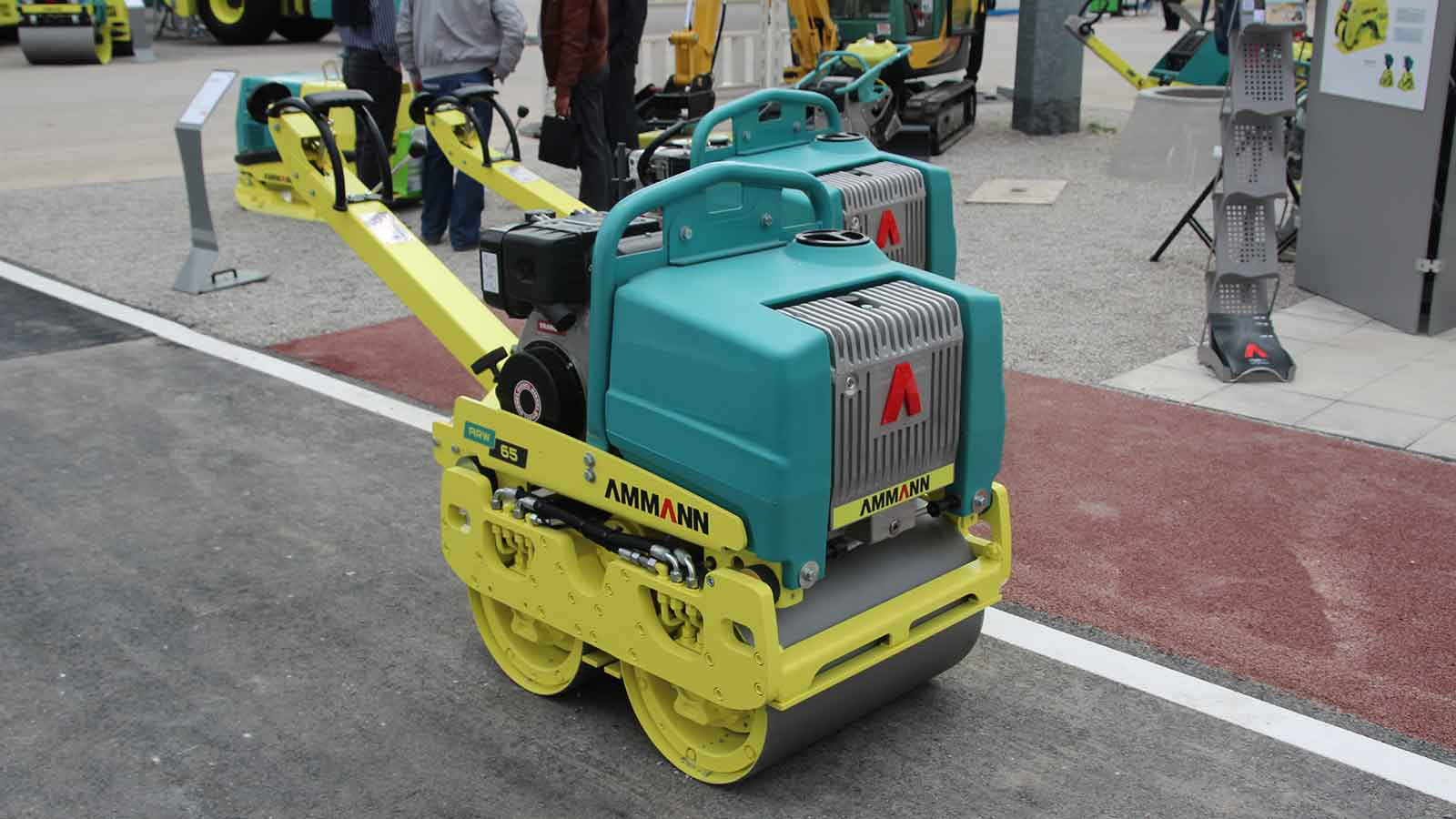

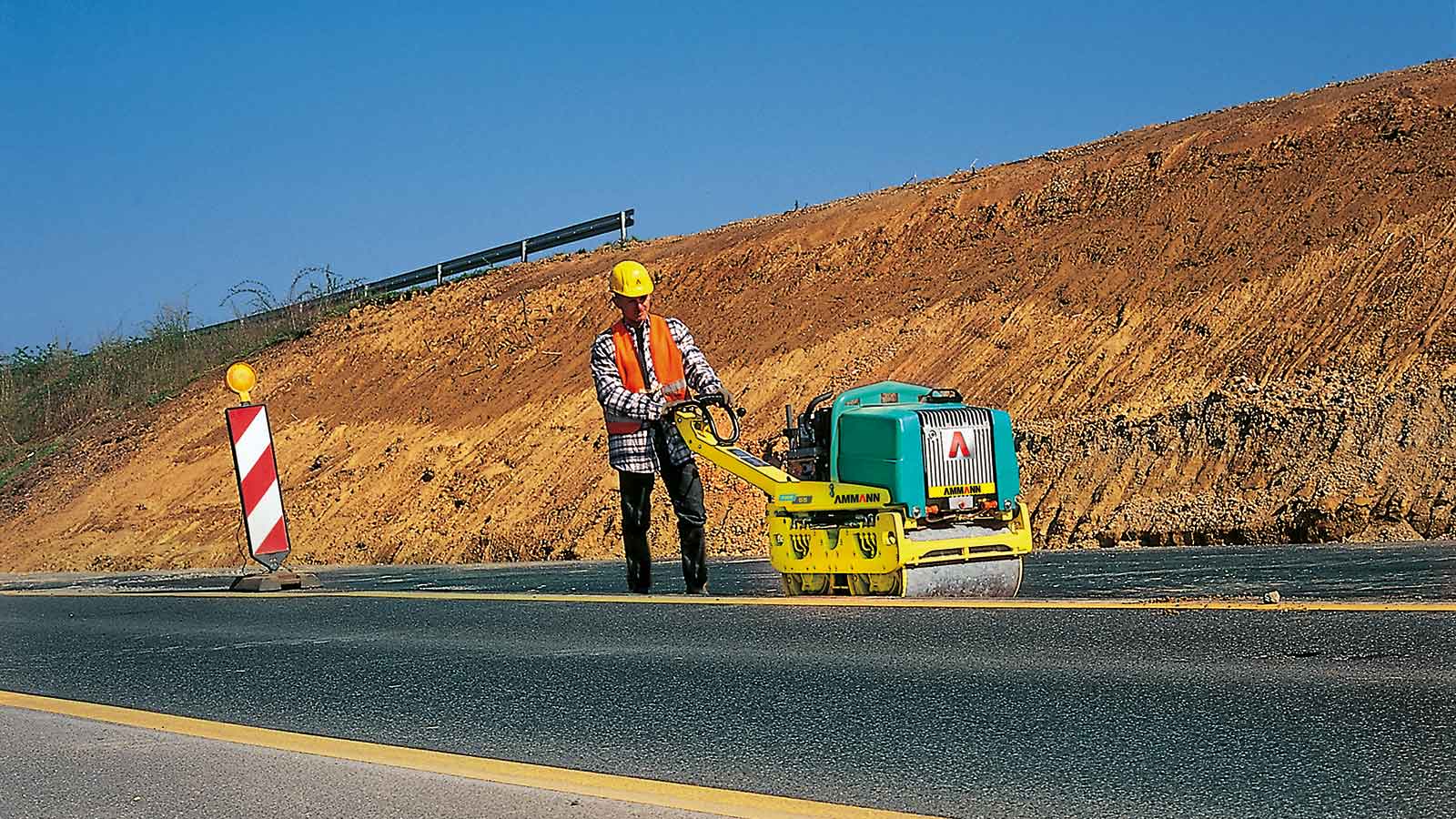

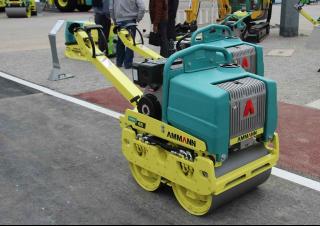

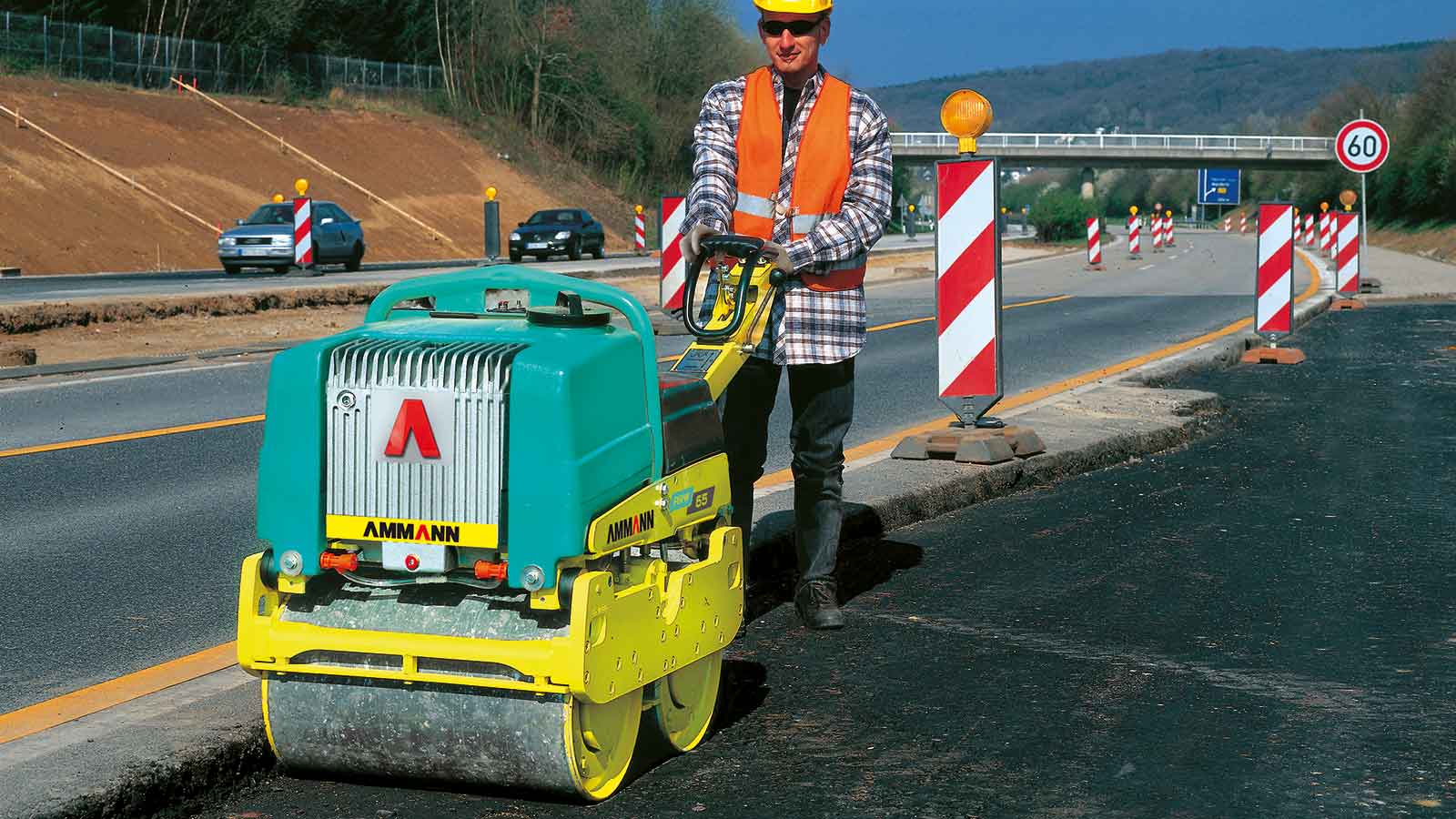

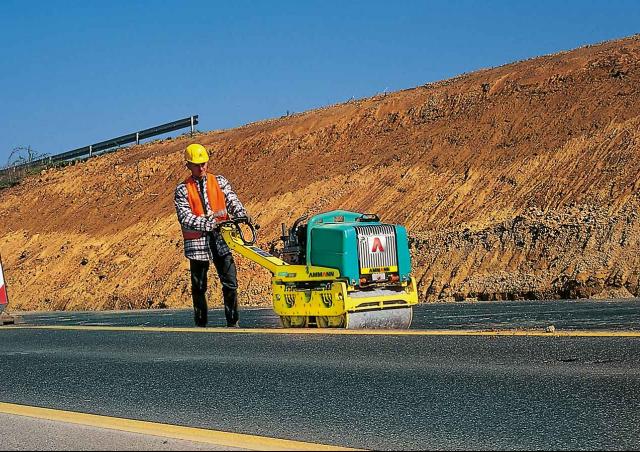

ARW 65 Ammann ARW 65 Specifications & Technical Data (2012—2026)

Weight: 0.7t – Transport length: 1.07m – Transport width: 0.71m – Transport height: 1.03m – Drive: E – Frequency: 55Hz

Rollers Vibration Trench Rollers Ammann ARW 65

ARW 65

Years of manufacture: 2012—2026

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARW 65 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.7 t

Transport length: 1.07 m

Transport width: 0.71 m

Transport height: 1.03 m

Drive: E

Frequency: 55 Hz

Roller width: 0.65 m

Rollers Ø: 0.4 m

Statical line load: 5 kg/cm

Model series: ARW

Engine manuf.: Yanmar

Engine type: L100N

Engine power: 6.1 kW

Revolutions at max torque: 2800 rpm

More technical details, like: vibration, travel speed, amplitude, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model

Special equipment

Diesel particulate filter: No
Remote control: No

Download datasheets (PDF)

Ammann ARW 65 FAQ

When was the Ammann ARW 65 manufactured?

The Ammann ARW 65 was first produced in 2012.

How much does the Ammann ARW 65 weigh?

The Ammann ARW 65 weighs 0.7 tons.

What are the transport dimensions of the Ammann ARW 65 vibration trench roller?

The Ammann ARW 65 has transport dimensions of 1.07 meters in length, 0.71 meters in width, and 1.03 meters in height.

What type of drive does the undercarriage of the Ammann ARW 65 have?

The undercarriage of the Ammann ARW 65 has a Simple drive.

What are the compaction specifications of the Ammann ARW 65 vibration trench roller?

The Ammann ARW 65 vibration trench roller operates at a frequency of 55 Hz and has a statical line load of 5 kg/cm.

What are the roller specifications of the Ammann ARW 65 vibration trench roller?

The Ammann ARW 65 has rollers that are 0.65 meters wide with a diameter of 0.4 meters.
