ARW 65 Ammann ARW 65 Specifications & Technical Data (2012—2019)

Weight: 0.72t – Transport length: 1.07m – Transport width: 0.71m – Transport height: 1.03m – Drive: E – Frequency: 55Hz

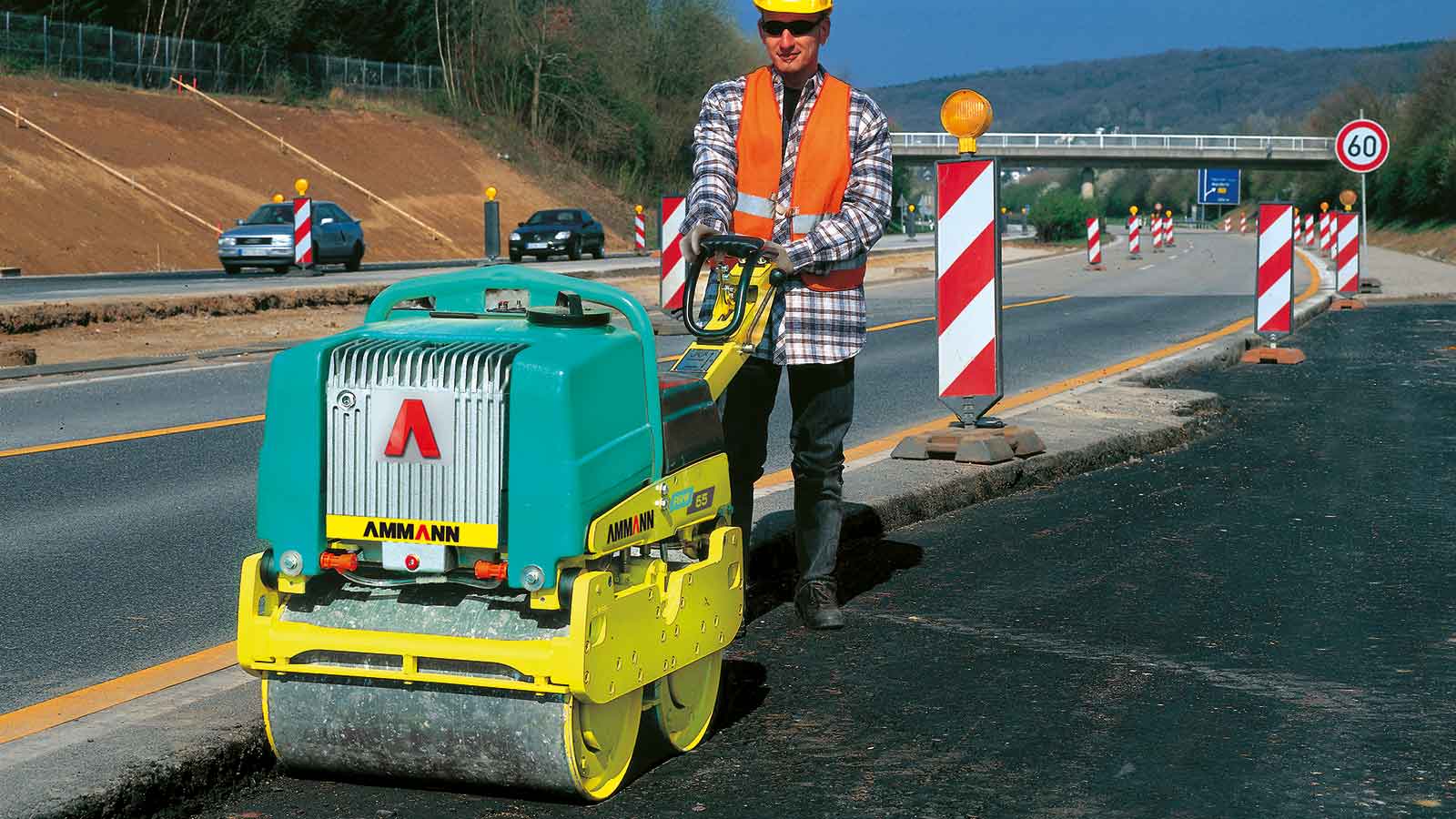

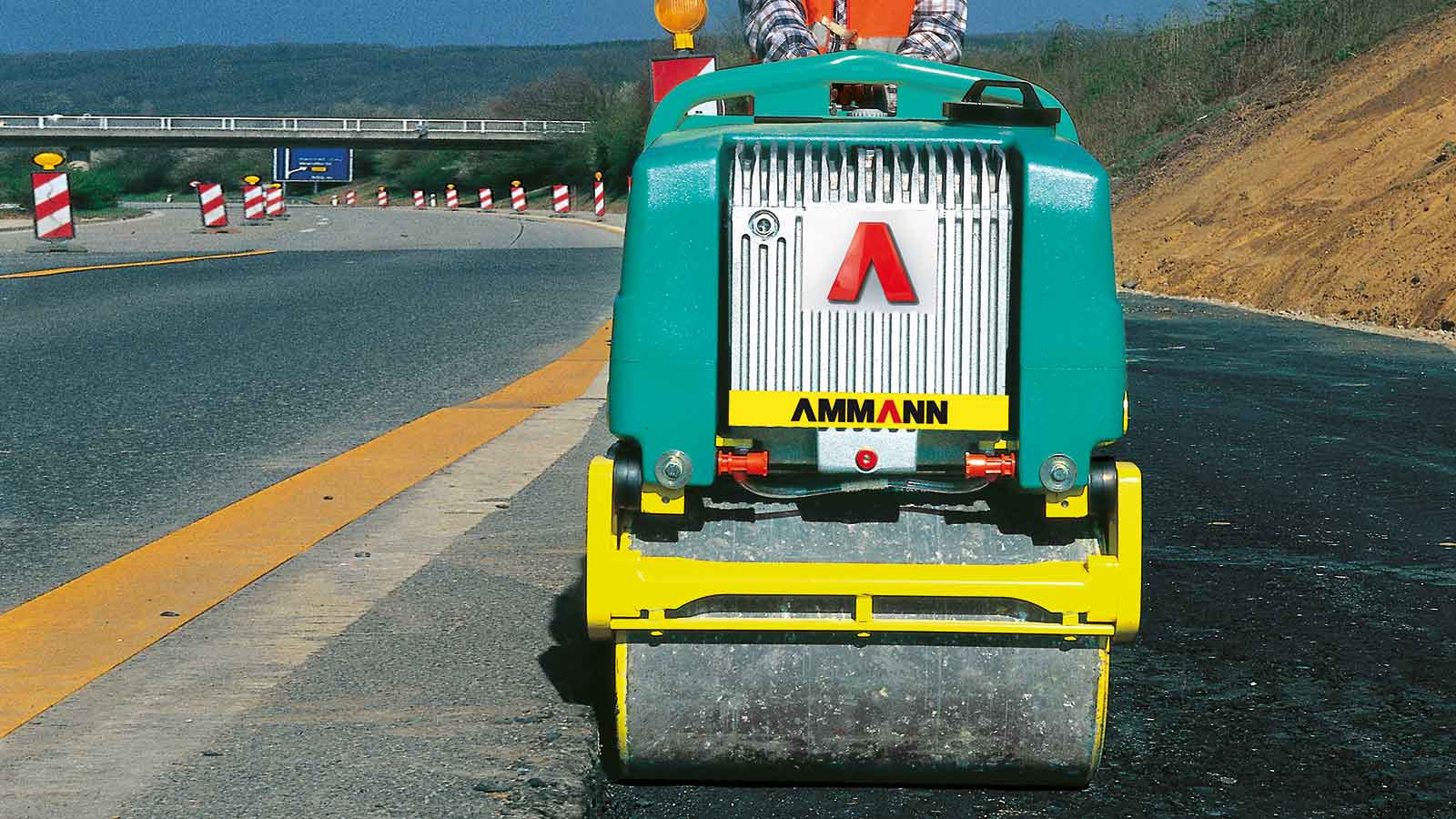

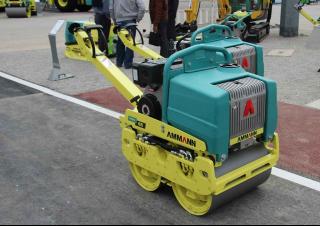

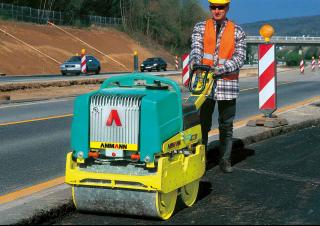

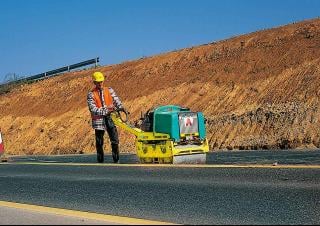

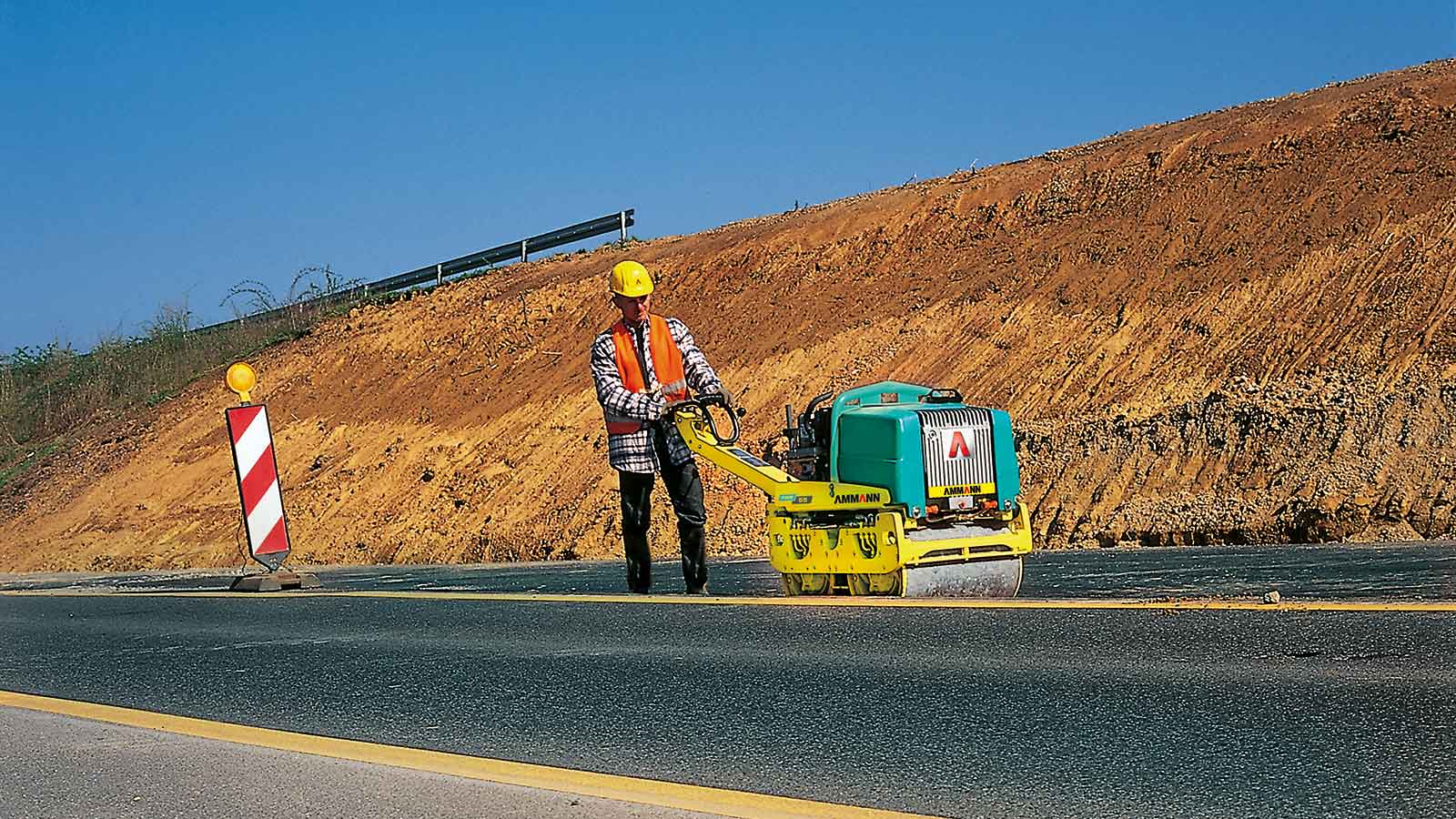

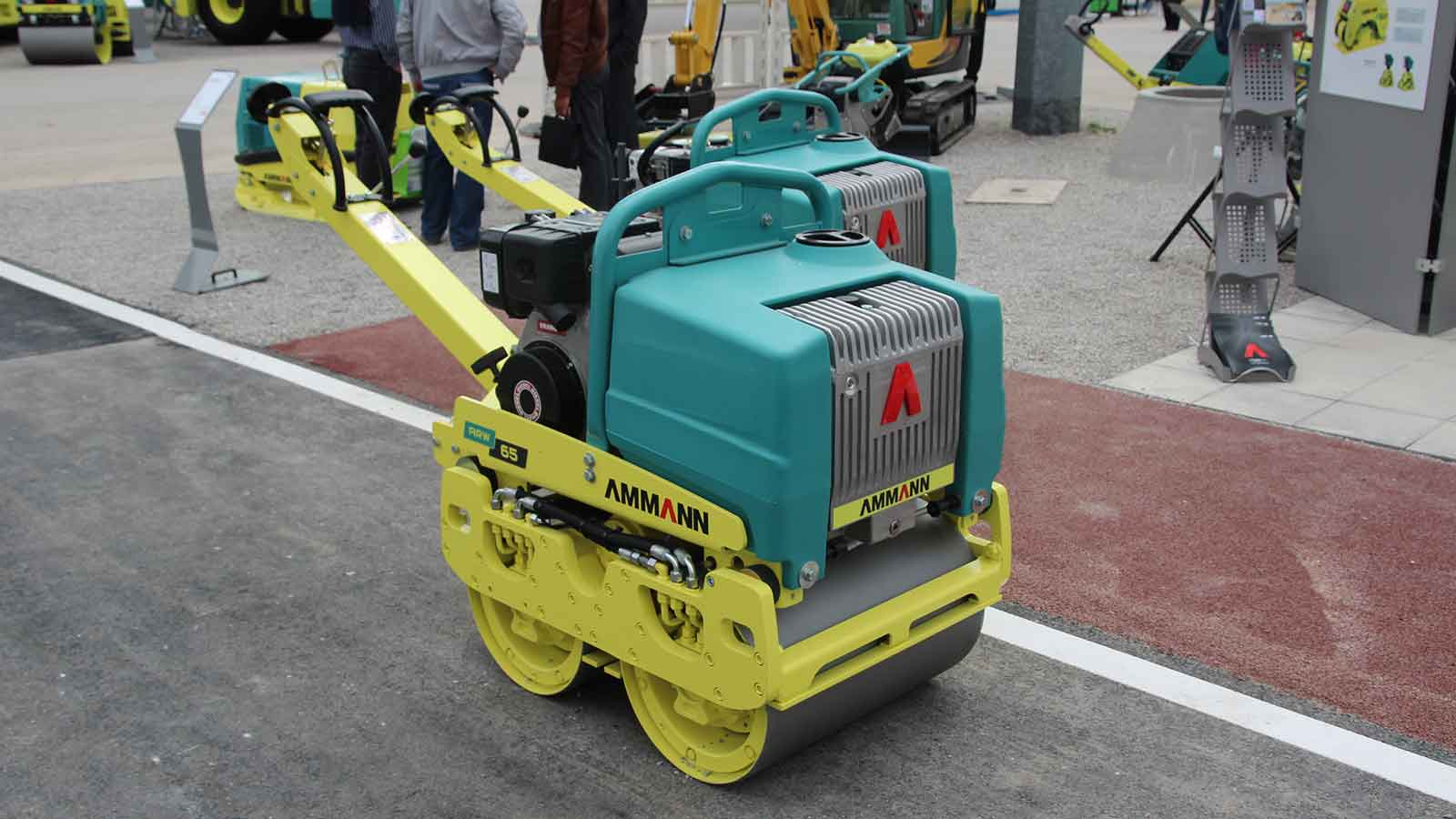

Rollers Vibration Trench Rollers Ammann ARW 65

ARW 65

Years of manufacture: 2012—2019

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARW 65 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.72 t

Transport length: 1.07 m

Transport width: 0.71 m

Transport height: 1.03 m

Drive: E

Frequency: 55 Hz

Roller width: 0.65 m

Rollers Ø: 0.4 m

Statical line load: 5 kg/cm

Model series: ARW

Engine manuf.: Hatz

Engine type: 1D42S

Engine power: 6.1 kW

More technical details, like: vibration, travel speed, amplitude, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model

Special equipment

Diesel particulate filter: No
Remote control: No

Download datasheets (PDF)

Ammann ARW 65 FAQ

When was the Ammann ARW 65 manufactured?

The Ammann ARW 65 was manufactured from 2012 to 2019.

How much does the Ammann ARW 65 weigh?

The Ammann ARW 65 weighs 0.72 tons.

What are the transport dimensions of the Ammann ARW 65 vibration trench roller?

The Ammann ARW 65 has transport dimensions of 1.07 meters in length, 0.71 meters in width, and 1.03 meters in height.

What type of drive system does the Ammann ARW 65 have in its undercarriage?

The Ammann ARW 65 has a simple drive system in its undercarriage.

What are the frequency and statical line load of the Ammann ARW 65?

The Ammann ARW 65 operates at a frequency of 55 Hz and has a statical line load of 5 kg/cm.

What are the roller specifications of the Ammann ARW 65 vibration trench roller?

The Ammann ARW 65 has rollers that are 0.65 meters wide with a diameter of 0.4 meters.

How much is a Ammann ARW 65 Vibration Trench Roller (2012u20132019) worth?

The residual value of the Ammann ARW 65 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
