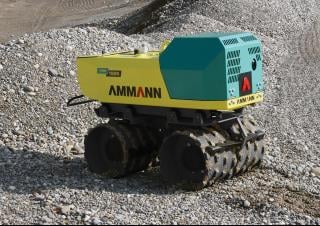

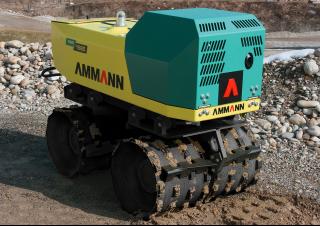

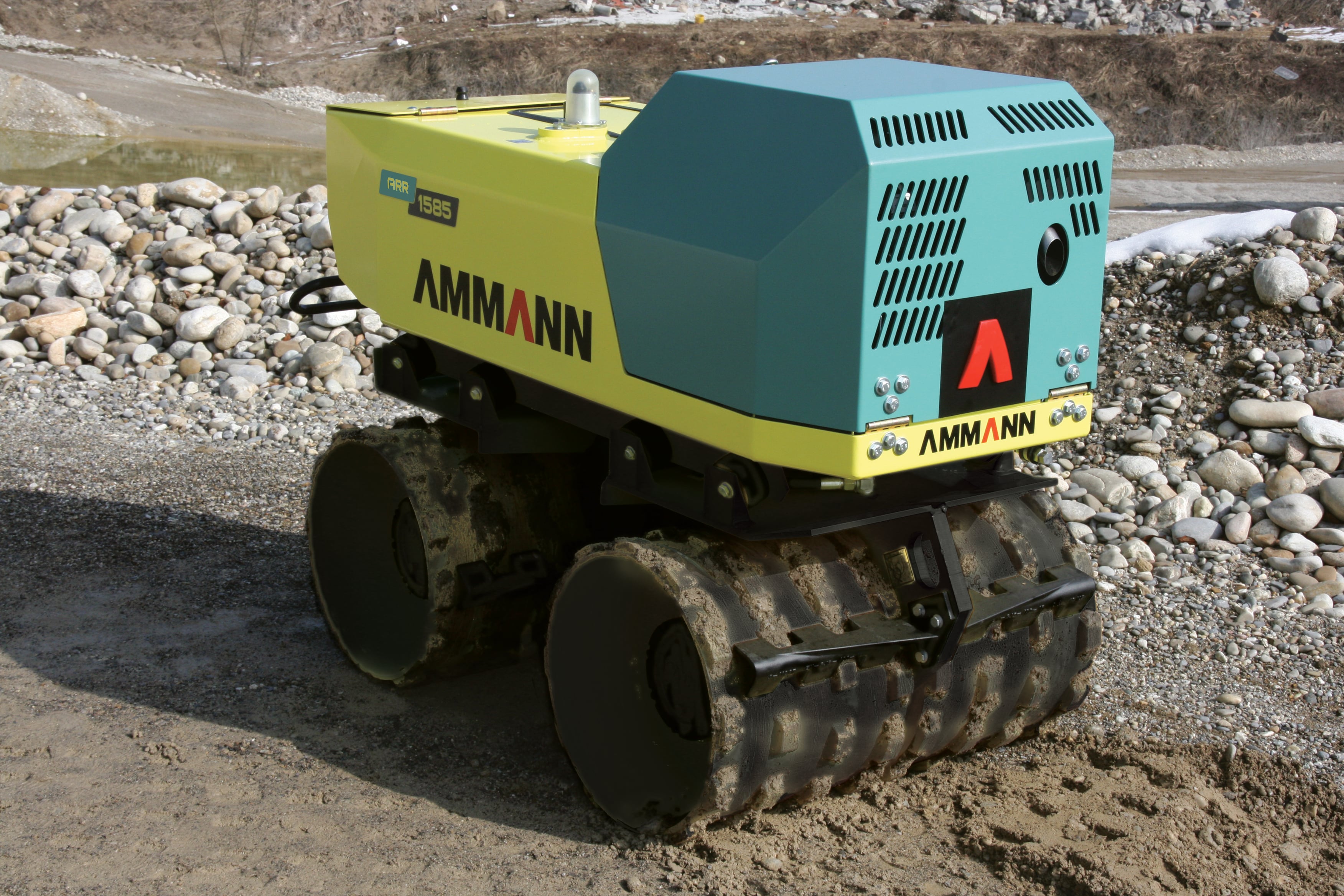

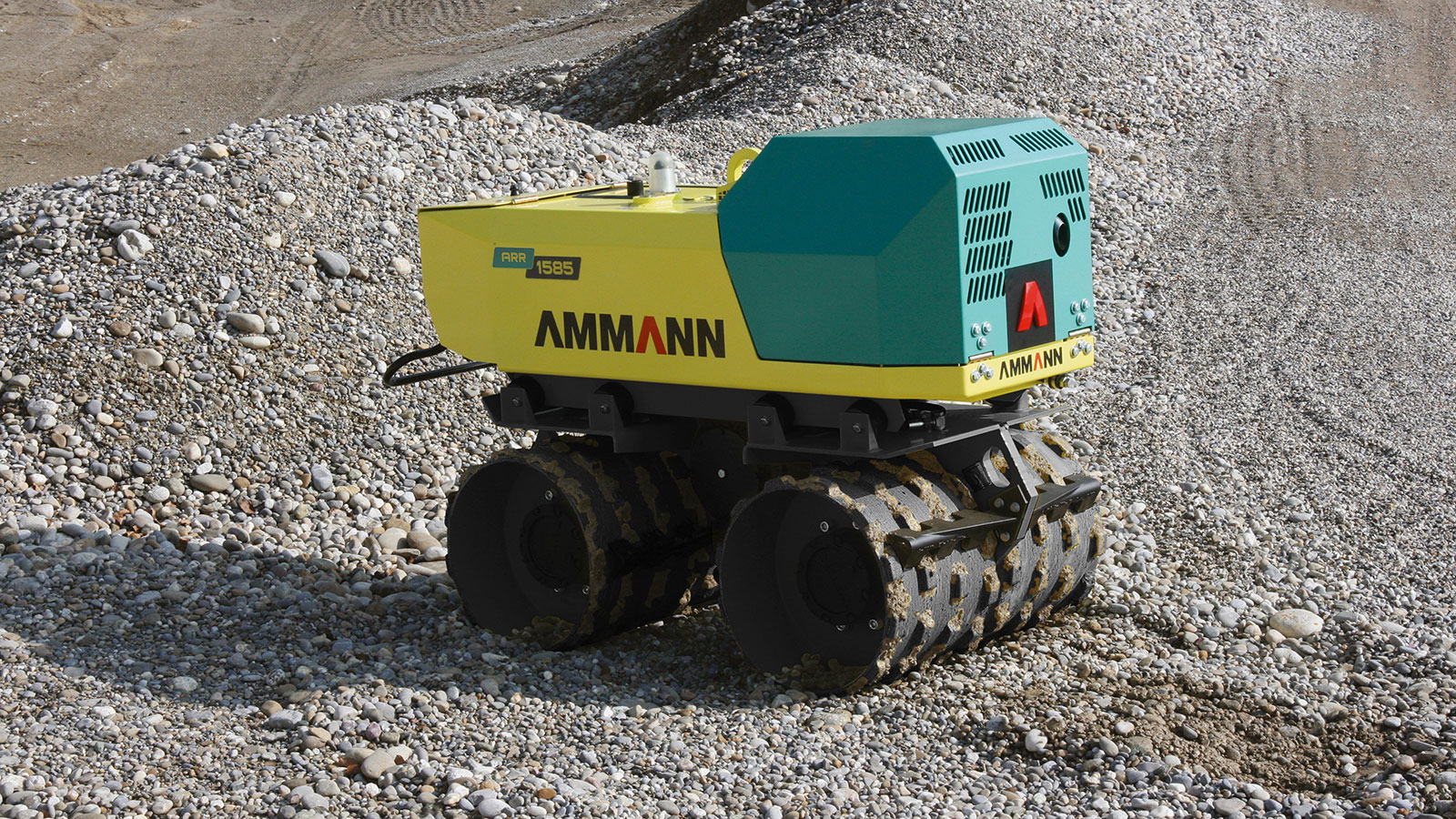

ARR 1585 T4f Ammann ARR 1585 T4f Specifications & Technical Data (2017—2020)
.jpg)
.jpg)
Technical specs - ARR 1585 T4f Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.48 t
- Transport length
- 1.87 m
- Transport width
- 0.85 m
- Transport height
- 1.2 m
- Vibration
- d
- Frequency
- 30 Hz
- Roller width
- 0.85 m
- Rollers Ø
- 0.83 m
- Amplitude
- 2.4 mm
- Statical line load
- 51 kg/cm
- Model series
- ARR
- Engine manuf.
- Hatz
- Engine type
- 2 D 40
- Engine power
- 13.4 kW
- Revolutions at max torque
- 2600 rpm
More technical details, like: drive, travel speed, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model
Special equipment
- Diesel particulate filter
-
No
- Remote control
-
No
Download datasheets (PDF)
