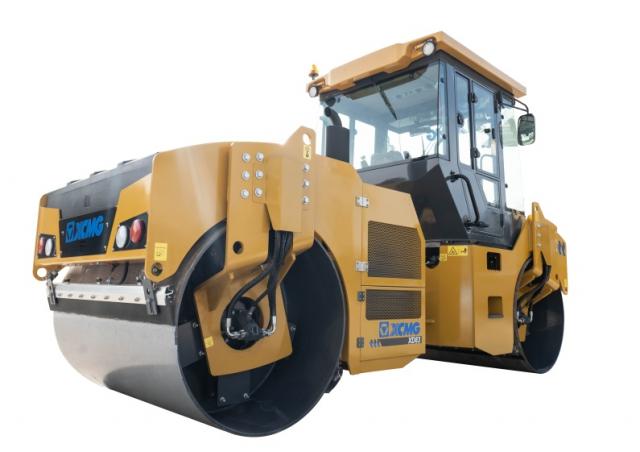

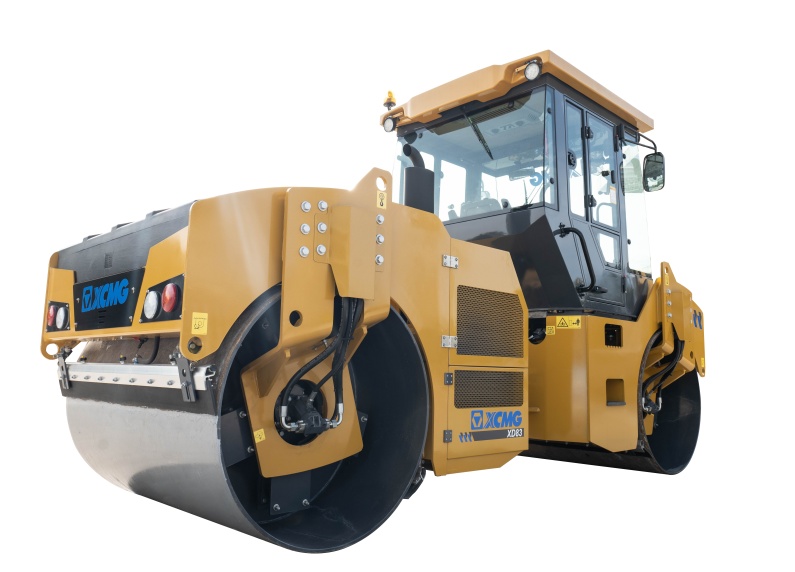

XD83 XCMG XD83 Specifications & Technical Data (2026—2026)

Weight: 8.5t – Frequency: 55/45Hz – Roller width: 1.68m – Centrifugal force: 75kN – Model series: XD – Engine manuf.: Cummins

Visit XCMG live at

Technical specs - XD83 XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.5 t
Frequency
55/45 Hz
Roller width
1.68 m
Centrifugal force
75 kN
Model series
XD
Engine manuf.
Cummins
Engine type
4BTA3.9-C110-II
Engine power
82 kW
Displacement
46268 l
Revolutions at max torque
2200 rpm
Max. torque
460/1500 Nm
No. of cylinders
4
Cylinder bore x stroke
102x120 mm
Emission level
EU II

More technical details, like: transport length, transport width, transport height, vibration, drive, steering, travel speed, rollers Ø, turning radius outside, statical line load, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No
