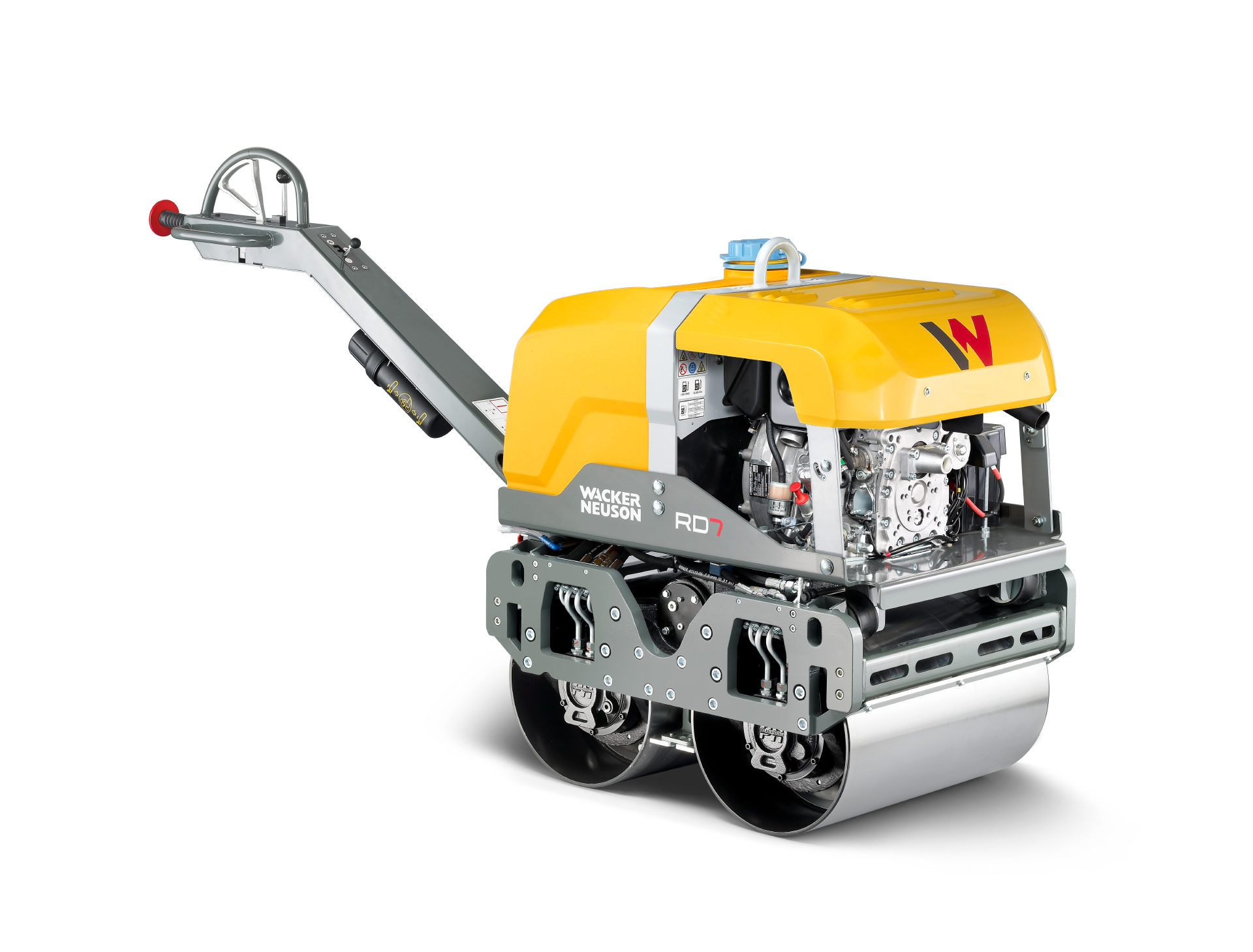

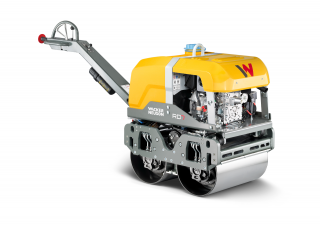

Wacker Neuson RD7Hf Specifications & Technical Data (2021-2026)

Technical specs - RD7Hf Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.727 t

Transport length: 1.351 m

Transport width: 0.72 m

Transport height: 1.99 m

Travel speed: 4.5 km/h

Frequency: 56 Hz

Roller width: 0.72 m

Rollers Ø: 0.4 m

Centrifugal force: 22.5 kN

Model series: RD

More technical details, like: vibration, drive, steering, turning radius outside, statical line load, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: vibration, drive, steering, turning radius outside, statical line load, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

Wacker Neuson RD7Hf FAQ

When was the Wacker Neuson RD7Hf manufactured?

The Wacker Neuson RD7Hf was first produced in 2021.

How much does the Wacker Neuson RD7Hf weigh?

The Wacker Neuson RD7Hf weighs 0.73 tons.

What are the transport dimensions of the Wacker Neuson RD7Hf tandem vibration roller?

The Wacker Neuson RD7Hf has a transport length of 1.35 meters, a transport width of 0.72 meters, and a transport height of 1.99 meters.

What is the travel speed of the Wacker Neuson RD7Hf tandem vibration roller?

The Wacker Neuson RD7Hf has a travel speed of 4.5 km/h.

What are the frequency and centrifugal force specifications of the Wacker Neuson RD7Hf tandem vibration roller?

The Wacker Neuson RD7Hf operates at a frequency of 56 Hz and generates a centrifugal force of 22.5 kN.

What are the roller specifications of the Wacker Neuson RD7Hf tandem vibration roller?

The Wacker Neuson RD7Hf has rollers that are 0.72 meters wide with a diameter of 0.4 meters.

How much is a Wacker Neuson RD7Hf Tandem Vibration Roller (2021u20132025) worth?

The residual value of the Wacker Neuson RD7Hf depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
