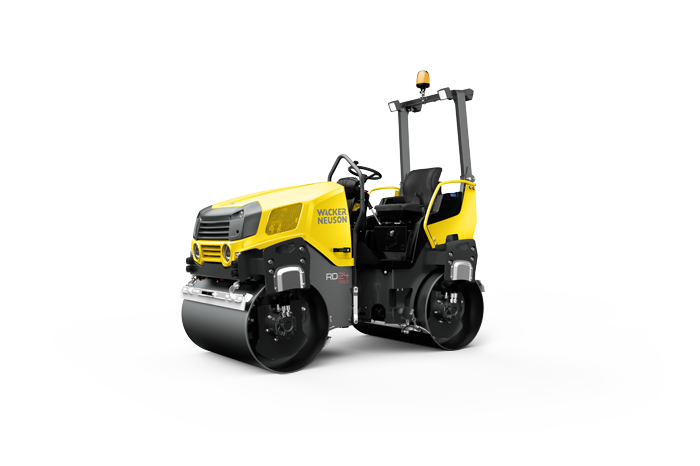

RD24-100 C Wacker Neuson RD24-100 C Specifications & Technical Data (2015—2026)

Weight: 2.38t – Transport length: 2.46m – Transport width: 1.11m – Transport height: 2.39m – Vibration: e – Drive: A

Rollers Tandem Vibration Rollers Wacker Neuson RD24-100 C
Rollers Tandem Vibration Rollers Wacker Neuson RD24-100 C
Rollers Tandem Vibration Rollers Wacker Neuson RD24-100 C
Rollers Tandem Vibration Rollers Wacker Neuson RD24-100 C

Visit Wacker Neuson live at

Technical specs - RD24-100 C Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.38 t
Transport length
2.46 m
Transport width
1.11 m
Transport height
2.39 m
Vibration
e
Drive
A
Steering
KL
Travel speed
12 km/h
Frequency
67 Hz
Roller width
1.05 m
Rollers Ø
0.72 m
Turning radius outside
2.47 m
Centrifugal force
46 kN
Model series
RD
Engine manuf.
Kubota
Engine type
D1503
Engine power
23.5 kW
Displacement
1.647 l

More technical details, like: statical line load, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
Yes
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Wacker Neuson RD24-100 C FAQ

When was the Wacker Neuson RD24-100 C manufactured?

The Wacker Neuson RD24-100 C was first produced in 2015.

How much does the Wacker Neuson RD24-100 C weigh?

The Wacker Neuson RD24-100 C weighs 2.38 tons.

What are the transport dimensions of the Wacker Neuson RD24-100 C?

The Wacker Neuson RD24-100 C has a transport length of 2.46 meters, a transport width of 1.11 meters, and a transport height of 2.39 meters.

What is the travel speed of the Wacker Neuson RD24-100 C tandem vibration roller?

The Wacker Neuson RD24-100 C has a travel speed of 12 km/h.

What are the undercarriage specifications of the Wacker Neuson RD24-100 C?

The Wacker Neuson RD24-100 C features an all-wheel drive system.

What are the maneuverability specifications of the Wacker Neuson RD24-100 C tandem vibration roller?

The Wacker Neuson RD24-100 C features articulated-frame steering and has an outside turning radius of 2.47 meters.

What are the compaction capabilities of the Wacker Neuson RD24-100 C tandem vibration roller?

The Wacker Neuson RD24-100 C features a single vibration system, operates at a frequency of 67 Hz, and generates a centrifugal force of 46 kN.

What are the roller specifications of the Wacker Neuson RD24-100 C tandem vibration roller?

The Wacker Neuson RD24-100 C has rollers that are 1.05 meters wide with a diameter of 0.72 meters.

How much is a Wacker Neuson RD24-100 C Tandem Vibration Roller (2015u20132025) worth?

The residual value of the Wacker Neuson RD24-100 C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
