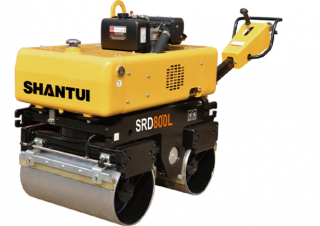

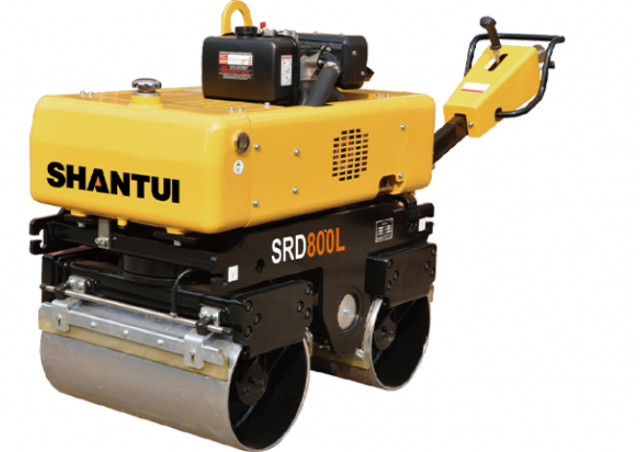

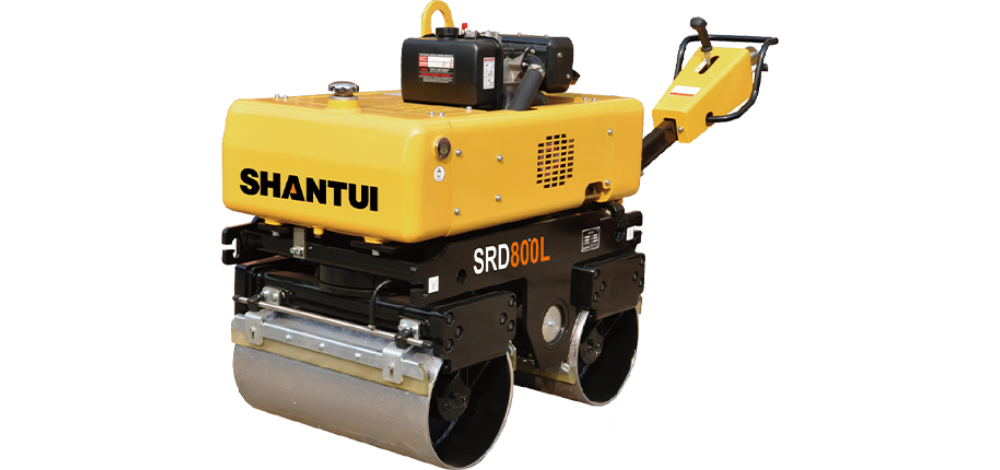

SRD800L Shantui SRD800L Specifications & Technical Data (2023—2026)
Technical specs - SRD800L Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 0.86 t
- Transport length
- 1.46 m
- Transport width
- 0.732 m
- Transport height
- 1.8 m
- Travel speed
- 3.5 km/h
- Frequency
- 65 Hz
- Roller width
- 0.68 m
- Rollers Ø
- 0.355 m
- Centrifugal force
- 17 kN
- Engine manuf.
- Changchai
- Engine type
- 186F
- Engine power
- 6 kW
- Displacement
- 3.6 l
- Emission level
- Stage II
More technical details, like: vibration, drive, steering, turning radius outside, statical line load, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
