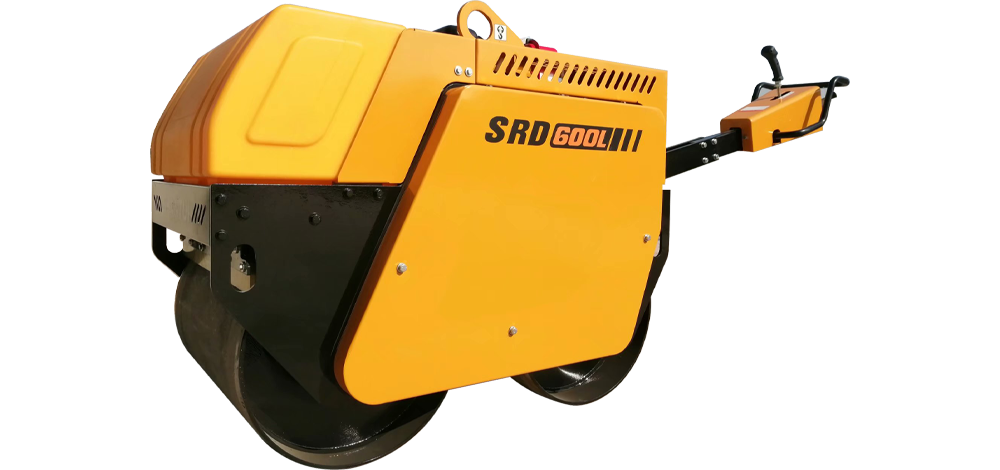

SRD600L Shantui SRD600L Specifications & Technical Data (2023—2026)
Technical specs - SRD600L Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 0.583 t
- Transport length
- 1.46 m
- Transport width
- 0.7 m
- Transport height
- 1.8 m
- Travel speed
- 3 km/h
- Frequency
- 70 Hz
- Roller width
- 0.6 m
- Rollers Ø
- 0.45 m
- Centrifugal force
- 15 kN
- Engine manuf.
- Changchai
- Engine type
- 178F
- Engine power
- 6 kW
- Displacement
- 3.6 l
- Emission level
- Stage II
More technical details, like: vibration, drive, steering, turning radius outside, statical line load, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Shantui SRD600L FAQ
How much does the Shantui SRD600L weigh?
What are the transport dimensions of the Shantui SRD600L tandem vibration roller?
What is the travel speed of the Shantui SRD600L tandem vibration roller?
What are the frequency and centrifugal force specifications of the Shantui SRD600L tandem vibration roller?
How much is a Shantui SRD600L Tandem Vibration Roller (2023u20132025) worth?
Machine inspection
Ask for inspection of your Shantui SRD600L from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Shantui SRD600L with similar Tandem Vibration Rollers

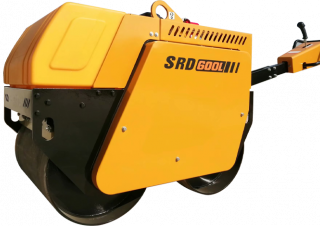

Shantui SRD600L
