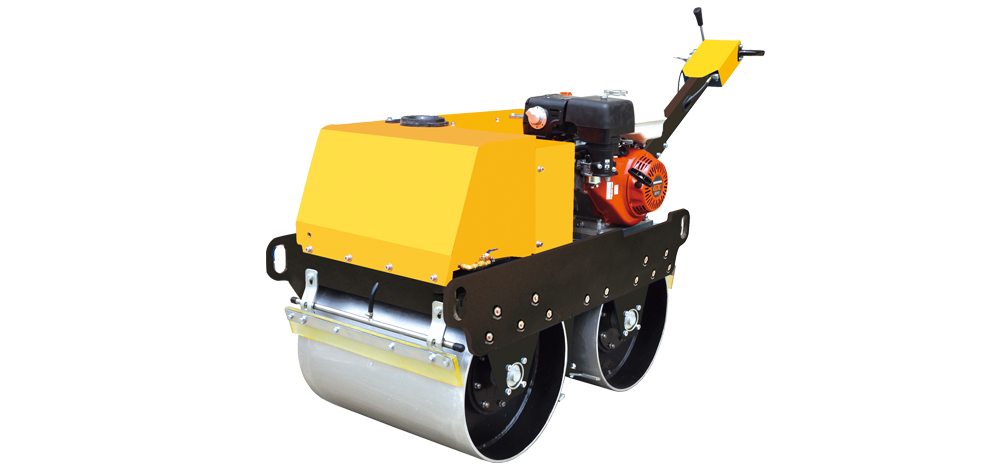

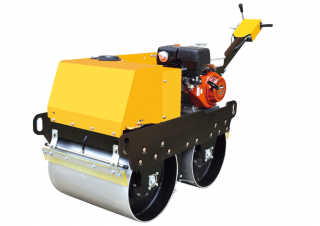

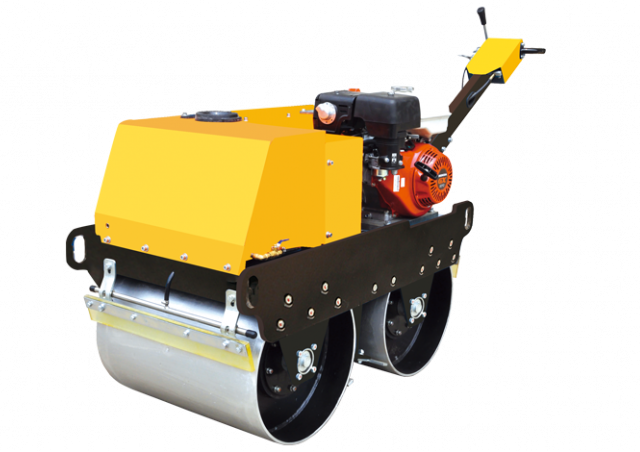

SRD500L Shantui SRD500L Specifications & Technical Data (2023—2026)
Technical specs - SRD500L Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 0.57 t
- Transport length
- 1.46 m
- Transport width
- 0.7 m
- Transport height
- 1.8 m
- Travel speed
- 1.8 km/h
- Frequency
- 70 Hz
- Roller width
- 0.6 m
- Rollers Ø
- 0.45 m
- Centrifugal force
- 13.5 kN
- Engine manuf.
- Changchai
- Engine type
- 178F
- Engine power
- 6 kW
- Displacement
- 3.6 l
- Emission level
- Stage II
More technical details, like: vibration, drive, steering, turning radius outside, statical line load, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Shantui SRD500L FAQ
How much does the Shantui SRD500L weigh?
What are the transport dimensions of the Shantui SRD500L tandem vibration roller?
What is the travel speed of the Shantui SRD500L tandem vibration roller?
What are the frequency and centrifugal force specifications of the Shantui SRD500L tandem vibration roller?
How much is a Shantui SRD500L Tandem Vibration Roller (2023u20132025) worth?
