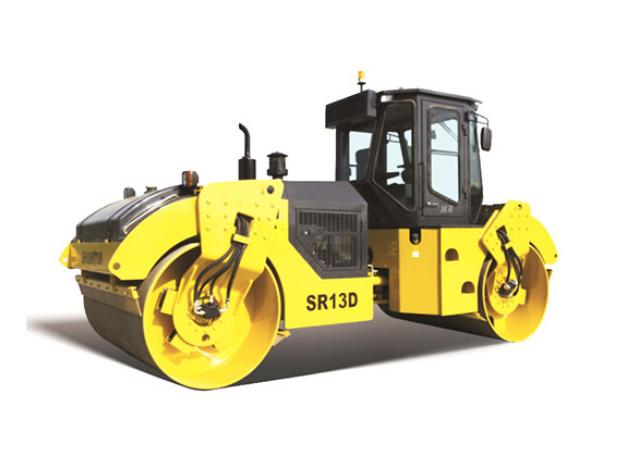

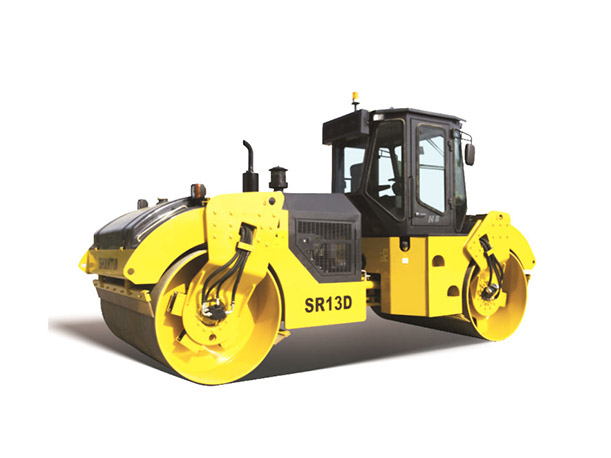

Shantui SRD13D Specifications & Technical Data (2020-2025)

Q: When was the Shantui SRD13D manufactured?

The Shantui SRD13D was first produced in 2020.

Q: How much does the Shantui SRD13D weigh?

The Shantui SRD13D weighs 13 tons.

Q: What are the transport dimensions of the Shantui SRD13D tandem vibration roller?

The Shantui SRD13D has a transport length of 5.77 meters, a transport width of 2.37 meters, and a transport height of 3.13 meters.

Q: What is the vibration frequency of the Shantui SRD13D's compaction system?

The compaction system of the Shantui SRD13D operates at a vibration frequency of 50 Hz.

Q: What is the roller width of the Shantui SRD13D tandem vibration roller?

The Shantui SRD13D tandem vibration roller has a roller width of 2.13 meters.

Q: How much is a Shantui SRD13D Tandem Vibration Roller (2020u20132025) worth?

The residual value of the Shantui SRD13D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Technical specs - SRD13D Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13 t

Transport length: 5.77 m

Transport width: 2.37 m

Transport height: 3.13 m

Frequency: 50 Hz

Roller width: 2.13 m

Model series: <14T

Engine manuf.: N/A

Engine type: BF4M2012

Engine power: 98 kW

More technical details, like: vibration, drive, steering, travel speed, rollers Ø, turning radius outside, statical line load, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: vibration, drive, steering, travel speed, rollers Ø, turning radius outside, statical line load, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

Shantui SRD13D FAQ

When was the Shantui SRD13D manufactured?

The Shantui SRD13D was first produced in 2020.

How much does the Shantui SRD13D weigh?

The Shantui SRD13D weighs 13 tons.

What are the transport dimensions of the Shantui SRD13D tandem vibration roller?

The Shantui SRD13D has a transport length of 5.77 meters, a transport width of 2.37 meters, and a transport height of 3.13 meters.

What is the vibration frequency of the Shantui SRD13D's compaction system?

The compaction system of the Shantui SRD13D operates at a vibration frequency of 50 Hz.

What is the roller width of the Shantui SRD13D tandem vibration roller?

The Shantui SRD13D tandem vibration roller has a roller width of 2.13 meters.

How much is a Shantui SRD13D Tandem Vibration Roller (2020u20132025) worth?

The residual value of the Shantui SRD13D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Shantui SRD13D from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Compare Shantui SRD13D with similar Tandem Vibration Rollers

Shantui SRD13D

Weight:: 13 t

Transport length:: 5.77 m

Transport width:: 2.37 m

Transport height:: 3.13 m

JOTEC JD125

Weight:: 12 t

Transport length:: 4.92 m

Transport width:: 2.3 m

Transport height:: 3.2 m

Sinomach GYD122

Weight:: 12 t

Transport length:: 4.96 m

Transport width:: 2.24 m

Transport height:: 3 m

Zoomlion YZC11A

Weight:: 11 t

Transport length:: 5 m

Transport width:: 2.25 m

Transport height:: 3.01 m
