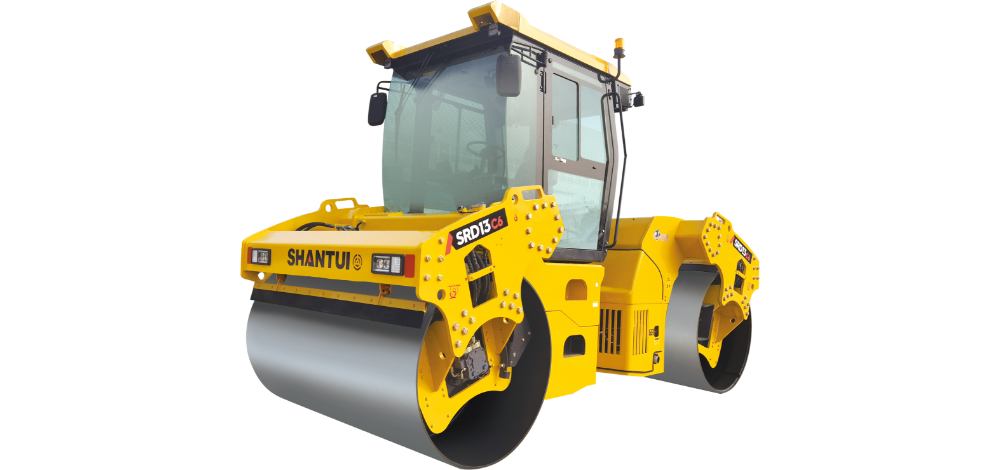

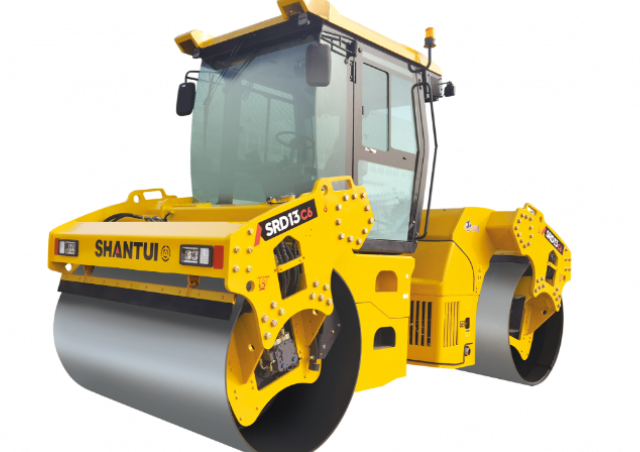

Shantui SRD13-C6
- Weight:
- 13 t
- Transport length:
- 5.1 m
- Transport width:
- 2.28 m
- Transport height:
- 3.26 m
SRD13-C6 Shantui SRD13-C6 Specifications & Technical Data (2025—2026)
Technical specs - SRD13-C6 Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13 t
- Transport length
- 5.1 m
- Transport width
- 2.28 m
- Transport height
- 3.26 m
- Travel speed
- 11 km/h
- Frequency
- 50 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.3 m
- Turning radius outside
- 6.7 m
- Centrifugal force
- 140 kN
- Engine manuf.
- Cummins
- Engine type
- QSB4.5-C160-30
- Engine power
- 119 kW
- Displacement
- 4.5 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 624/1500 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 107x124 mm
- Emission level
- Euro III
More technical details, like: vibration, drive, steering, statical line load, model series, dimension lxwxh are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
